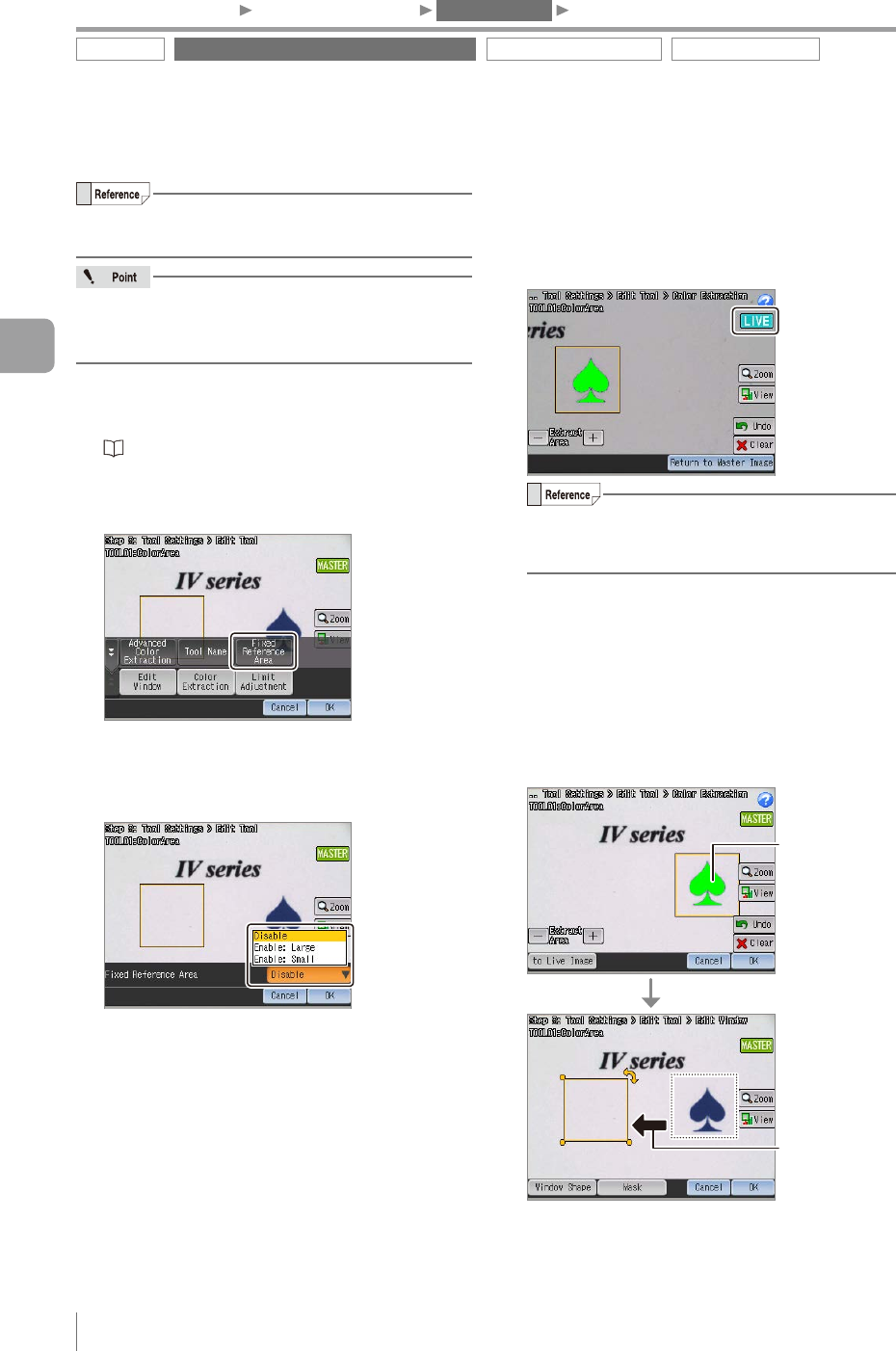

Fixed Reference Area
Select [Enable] if the color/brightness to be judged
in the master image cannot be detected.
The Color Area/Area tools with the xed reference
area set as [Enable] are excluded from a Tool
Auto Tuning target.
1
Display the extended functions menu of
the Color Area/Area tool.
“Display Method of Extended Functions
Menus” (Page 4-66)
2
Tap the [Fixed Reference Area] button.
The Settings Navigator guide opens.
Tap the [OK] button.
3
Perform the “Fixed Reference Area”.
4
Tap the [OK] button.
5
Extract the color/brightness range to be judged.
Extract from the Live image
Tap the [Color Extraction]/[Brightness Extraction]
button.
By tapping the [to Live Image] button, extract the color/
brightness range to be judged from “LIVE” image.
The color/brightness range to be extracted
can be specied by using [Advanced Color
Extraction]/[Advanced Brightness Extraction].
Extract from the master image, and then
move the tool window
Tap the [Edit Window] button and move the tool
window.
By tapping the [Color Extraction]/[Brightness
Extraction] button, extract the color/brightness
range to be judged.
Tap the [Edit Window] button again, and move
the tool window to the position where the color/
brightness is to be judged.
Move
Extract
the color/
brightness
6
After the setting is completed, tap the [OK] button.
The system returns to the main screen for the
Color Area/Area tool settings.
