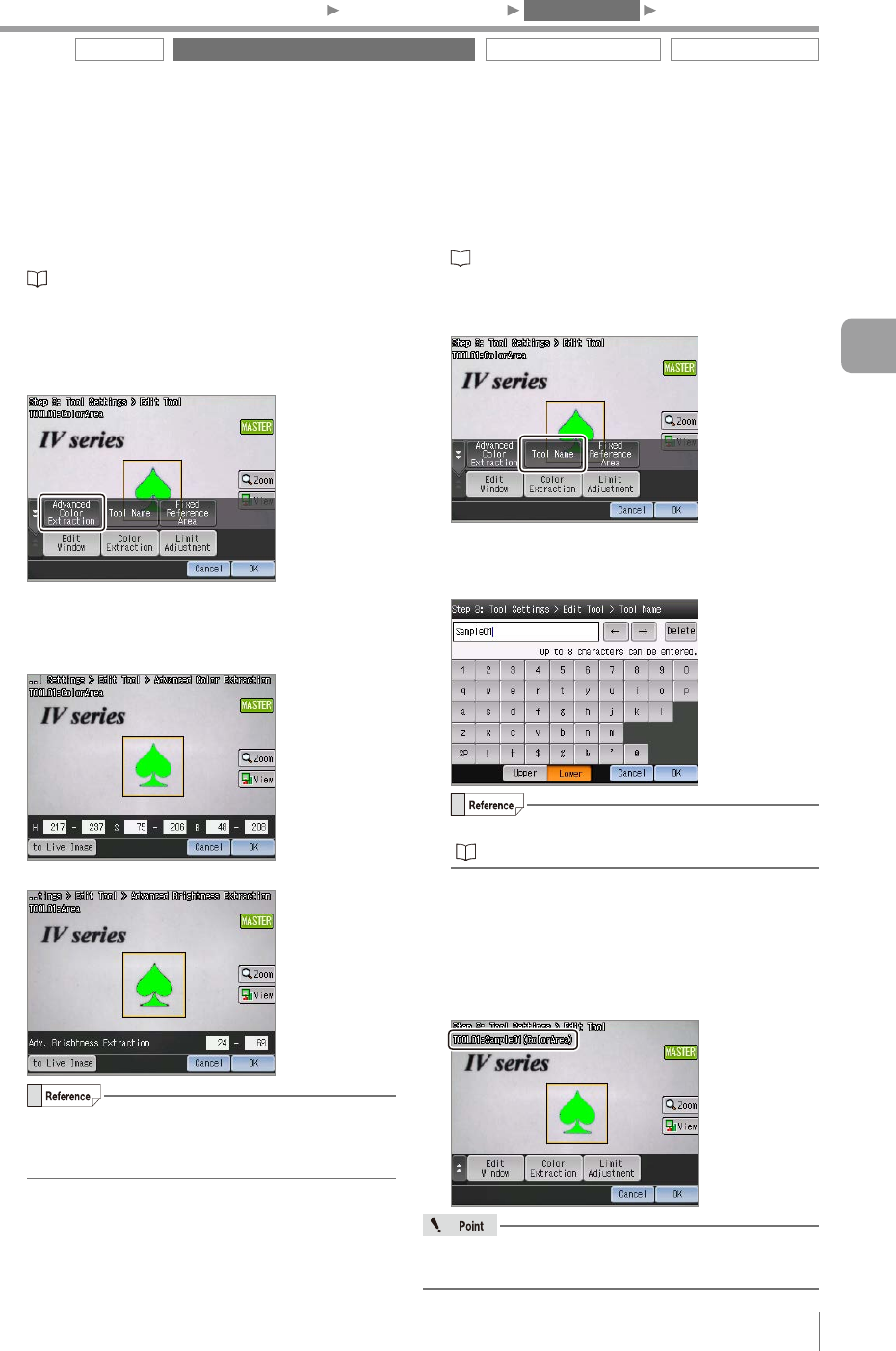

4-49
- IV Series User's Manual (Monitor) -
Advanced Color Extraction/
Advanced Brightness Extraction
1
Display the extended functions menu of
the Color Area/Area tool.
“Display Method of Extended Functions Menus”
(Page 4-66)
2
Tap the [Advanced Color Extraction] button.
For monochrome type, tap the [Advanced
Brightness Extraction] button.
3
Specify a color or brightness of the
extraction target.
For color type
For monochrome type
When the [to Live Image] button is tapped, the
color extraction condition can be checked with
the Live image.
4
After the setting is completed, tap the [OK]
button.
The system returns to the main screen for the
Color Area/Area tool settings.
Tool Name
1
Display the extended functions menu of
the Color Area/Area tool.
“Display Method of Extended Functions Menus”
(Page 4-66)
2
Tap the [Tool Name] button.
The screen to set the tool name opens.
3
Input an arbitrary name.
For details of how to enter characters, refer to
“Inputting characters” (Page 3-16).
4
After the setting is completed, tap the [OK]
button.
The system returns to the main screen for the
Color Area/Area tool settings.
The tool name which has been set will be displayed.
If the display language (Page 6-51) is changed,
characters might be garbled.
Outline tool Color Area/Area tool > Extended functions Position Adjustment tool Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
