4-47
- IV Series User's Manual (Monitor) -
4

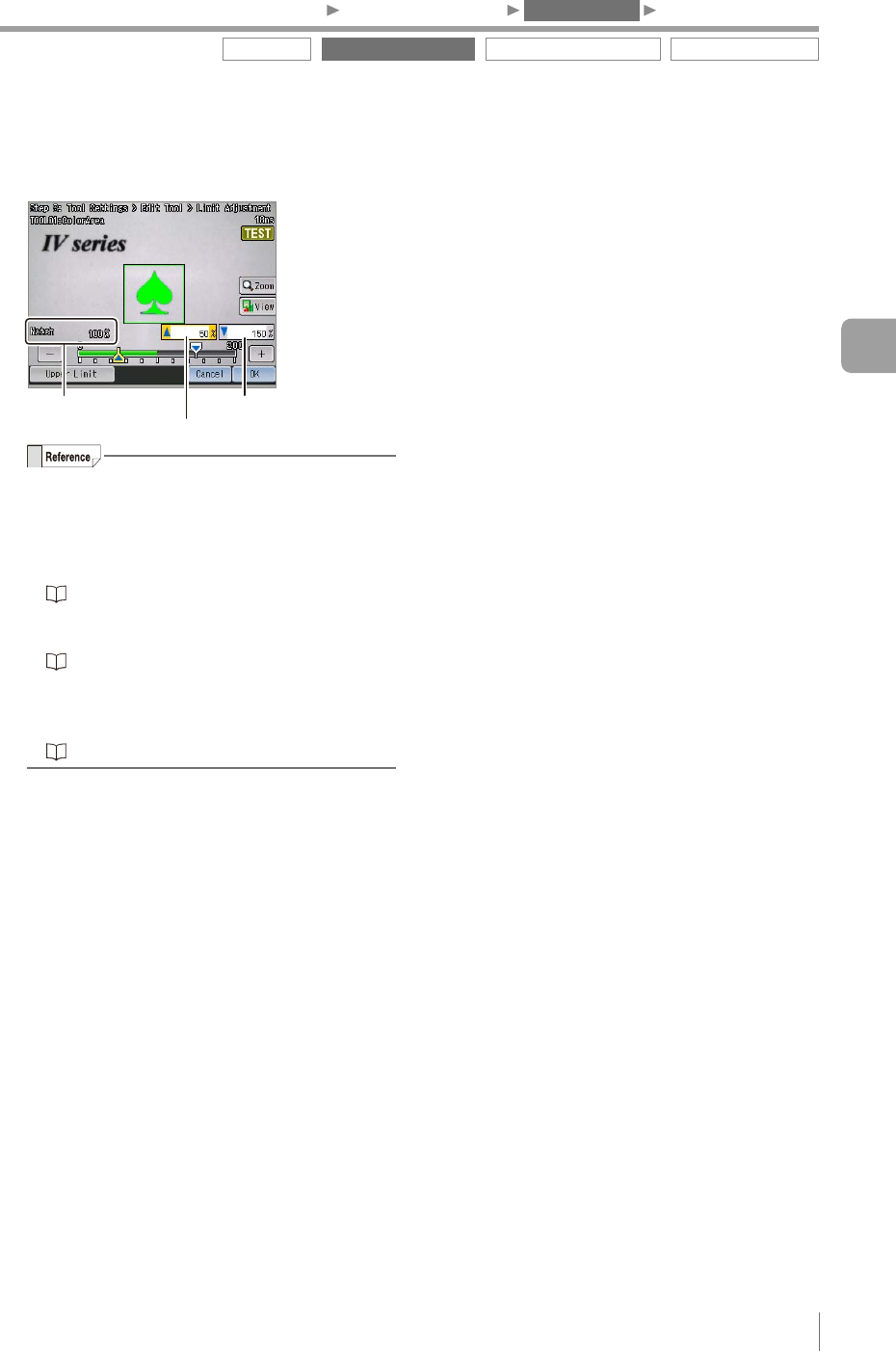

Adjust the threshold of anomaly detection
by checking the matching rate.
Matching rate
Threshold (upper limit)
Threshold (lower limit)
Judged OK when the matching rate is within
threshold range, and NG when it is outside
the range.
In accordance with status result of the tool,
the display color of the tool changes.
“Selecting a display method for tools” (Page 5-7)
The threshold can be changed using the
slider or by inputting values.
“Editing the value with the slider” (Page 3-14)
The thresholds can also be set in [Limit
Adjustment] of the Sensor Setup Menu
screen.
“Adjusting Thresholds for Judgment” (Page 5-14)
5
After the setting is completed, tap the [OK]
button.
The system returns to the main screen for the
Color Area/Area tool settings.
Outline tool Color Area/Area tool Position Adjustment tool Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
