4-43
- IV Series User's Manual (Monitor) -
11

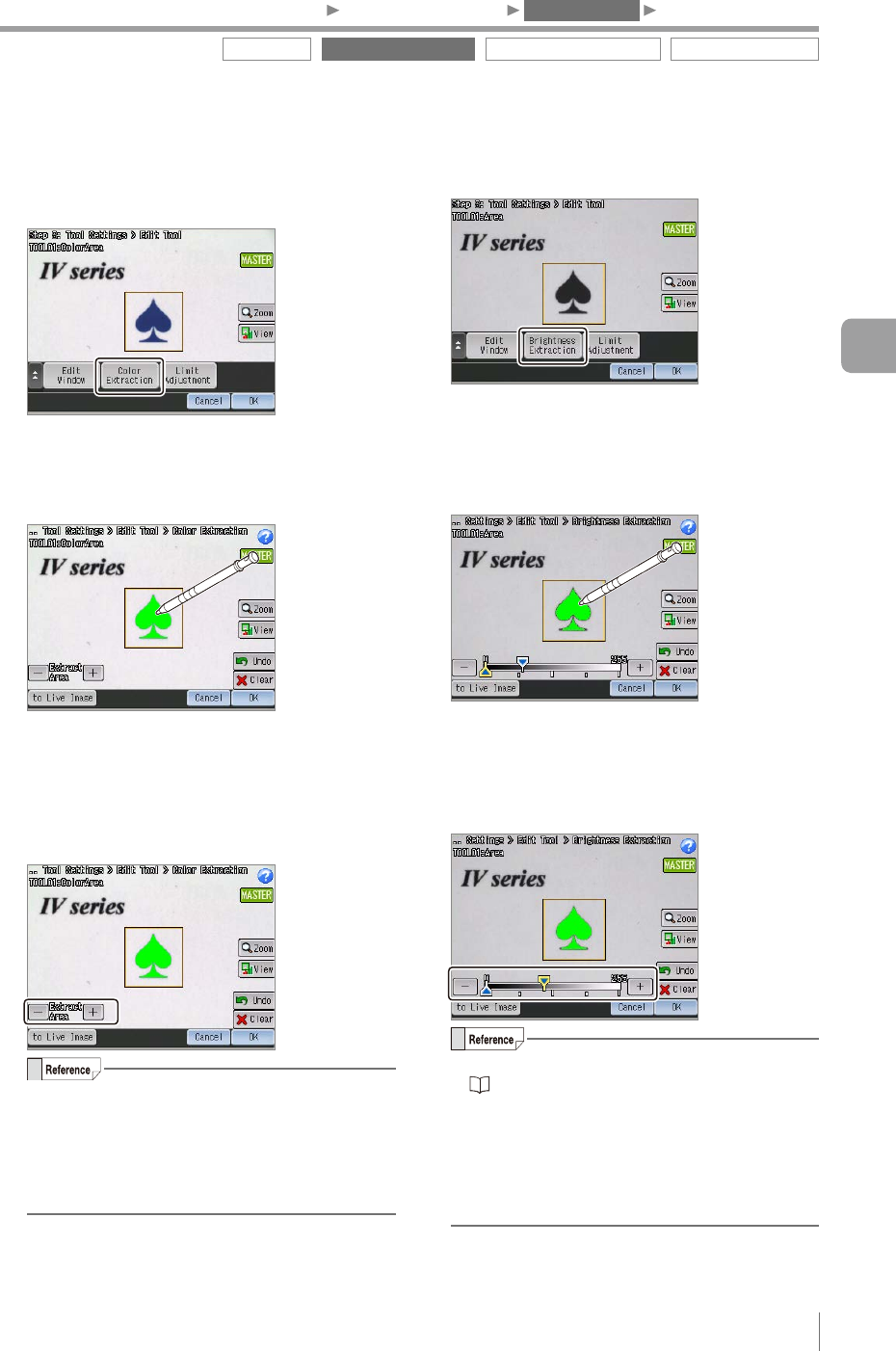

Set the area to be the target to extract.
For color type
Tap the [Color Extraction] button.
The Settings Navigator guide opens.
Tap the [OK] button.
The screen to select a color to be extracted opens.
Tap the color to be the reference of judgment
for the color area.
The tapped color will be extracted.
If the areas of color that have not been extracted
are tapped repeatedly, the extraction range can
be added.
Tap the [+] / [-] button of the extraction range,
and the range of color to be extracted can be
expanded/reduced.
By tapping the [to Live Image] button, the
range of the color to be extracted can be set
with the Live Image of the target.
When the color extraction is to be performed
again, tap the [Clear] button and then tap the
color to be the reference of judgment again.
After the setting is completed, tap the [OK] button.
The system returns to the main screen for the
Color Area tool settings.
For monochrome type
Tap the [Brightness Extraction] button.
The Settings Navigator guide opens.
Tap the [OK] button.
The screen to select brightness to be extracted
opens.
Tap the brightness to be the reference of
judgment for the color area.
The tapped brightness will be extracted.
If the areas of brightness that have not been
extracted are tapped repeatedly, the extraction
range can be added.
Adjust the slider, and the range of the brightness
to be extracted can be expanded/reduced.
For details of settings by using the slider, refer to
“Editing the value with the slider” (Page 3-14).
By tapping the [to Live Image] button, the
range of the brightness to be extracted can
be set with the Live image of the target.
When the brightness extraction is to be performed
again, tap the [Clear] button and then tap the color
to be the reference for judgment again.
After the setting is completed, tap the [OK] button.
The system returns to the main screen for the
Area tool settings.
Outline tool Color Area/Area tool Position Adjustment tool Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
