4-38
- IV Series User's Manual (Monitor) -

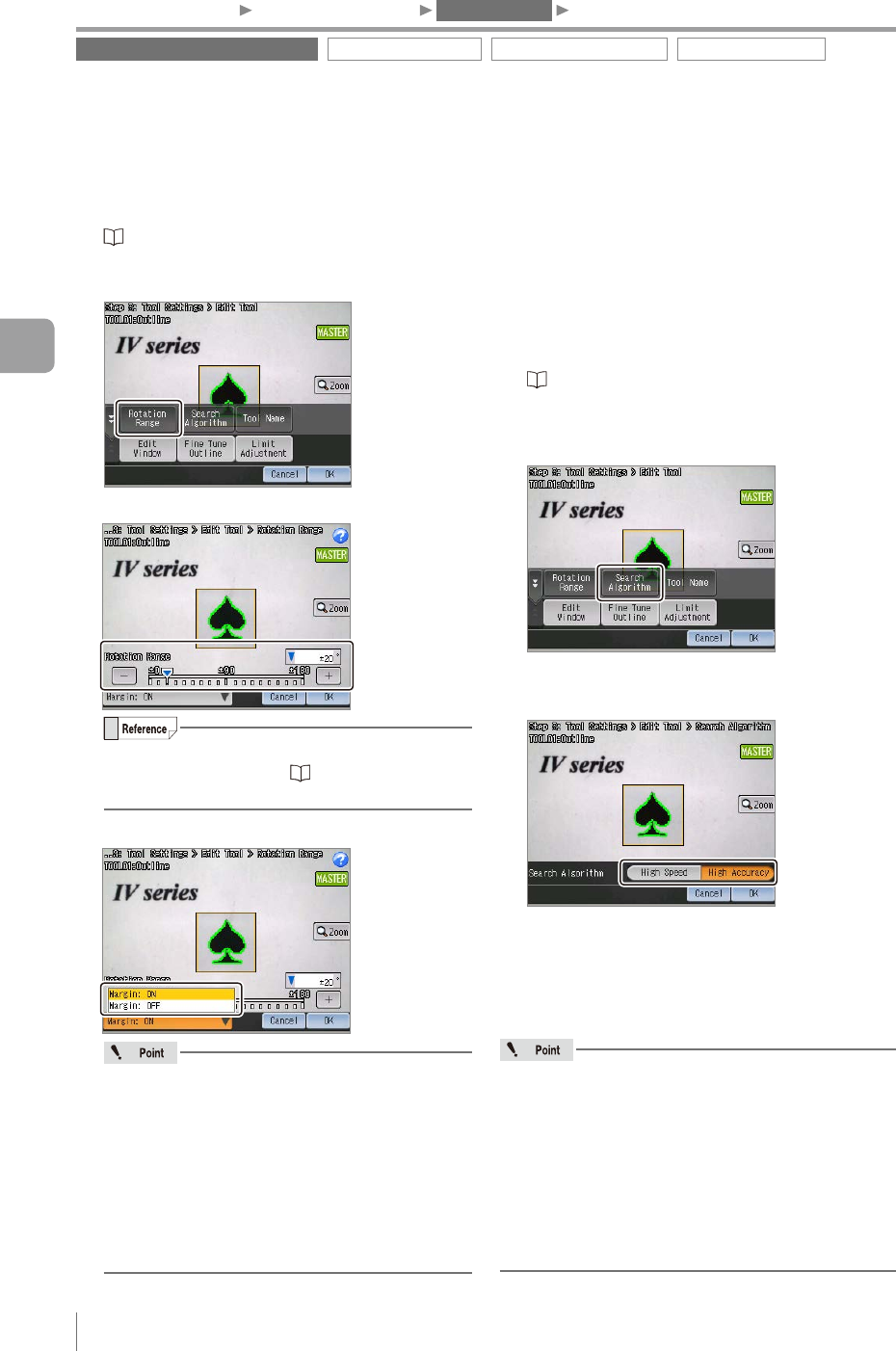

Rotation Range
1
Display the extended functions menu of
the Outline tool.
“Display Method of Extended Functions Menus”
(Page 4-66)
2
Tap the [Rotation Range] button.
3
Set a rotation range of the Outline tool.
For details of setting using the slider or by
inputting value, refer to “Editing the value
with the slider” (Page 3-14).
4
Set a margin of the rotation range.
Select [ON] when detection is not stable
because of the inuence of the rotation angle
of the target. The tool window will search with
the range ± few degrees wider than the setting
value of rotation range. (The tool window
will search ± few degrees even if the rotation
range is set to 0°)
Select [OFF] when you would like to detect
the target in accordance with the set rotation
angle of the target.
5
After the setting is completed, tap the [OK]
button.
The system returns to the main screen for the
Outline tool settings.
Search Algorithm
1
Display the extended functions menu of
the Outline tool.
“Display Method of Extended Functions Menus”
(Page 4-66)
2
Tap the [Search Algorithm] button.
3
Select the type of search algorithm (High
Speed/High Accuracy).
4
After the setting is completed, tap the [OK]
button.
The system returns to the main screen for the
Outline tool settings.
Select [High Accuracy] when detection is not
stable because of a small difference in the
matching rate of a high and low-quality-target.
Select [High Accuracy] when detection is
not stable because of the inuence of an
unnecessary outline other than the target such
as the background.
Select [High Speed] to shorten the processing
time.
Outline tool > Extended functions Color Area/Area tool Position Adjustment tool Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
