4-36
- IV Series User's Manual (Monitor) -

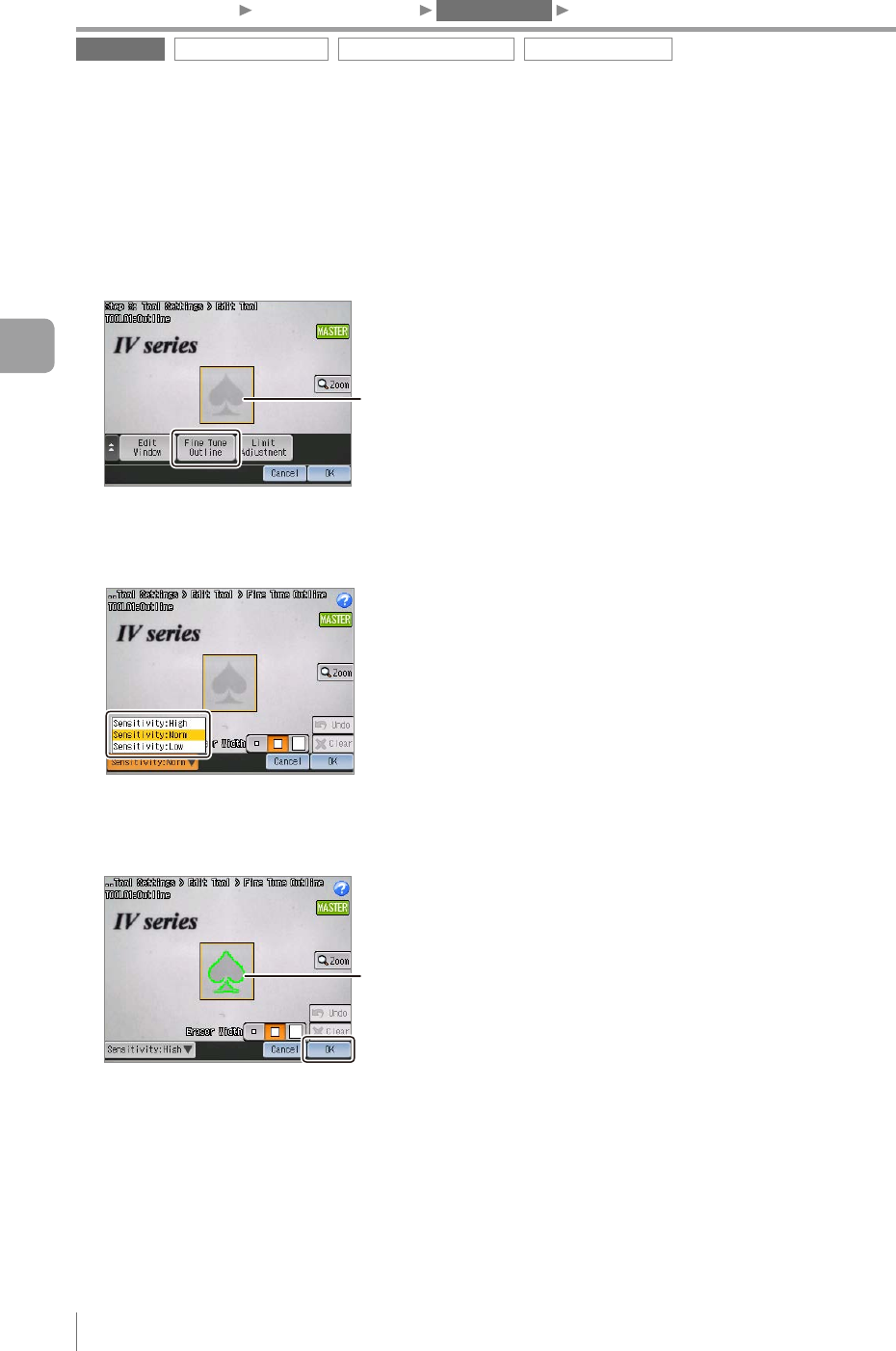

Setting a sensitivity
According to the target,
perform the following
procedures when the extraction sensitivity of an
outline is selected.
1
Tap the [Fine Tune Outline] button.
The outline
cannot be
extracted
The Settings Navigator guide opens.
Tap the [OK] button.
2
Select the extraction sensitivity of an outline.
Select the [High] in this section.
3
After the setting is completed, tap the [OK]
button.
Extracted
outline
The system returns to the main screen for the
Outline tool settings.
Outline tool Color Area/Area tool Position Adjustment tool Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
