4-35
- IV Series User's Manual (Monitor) -

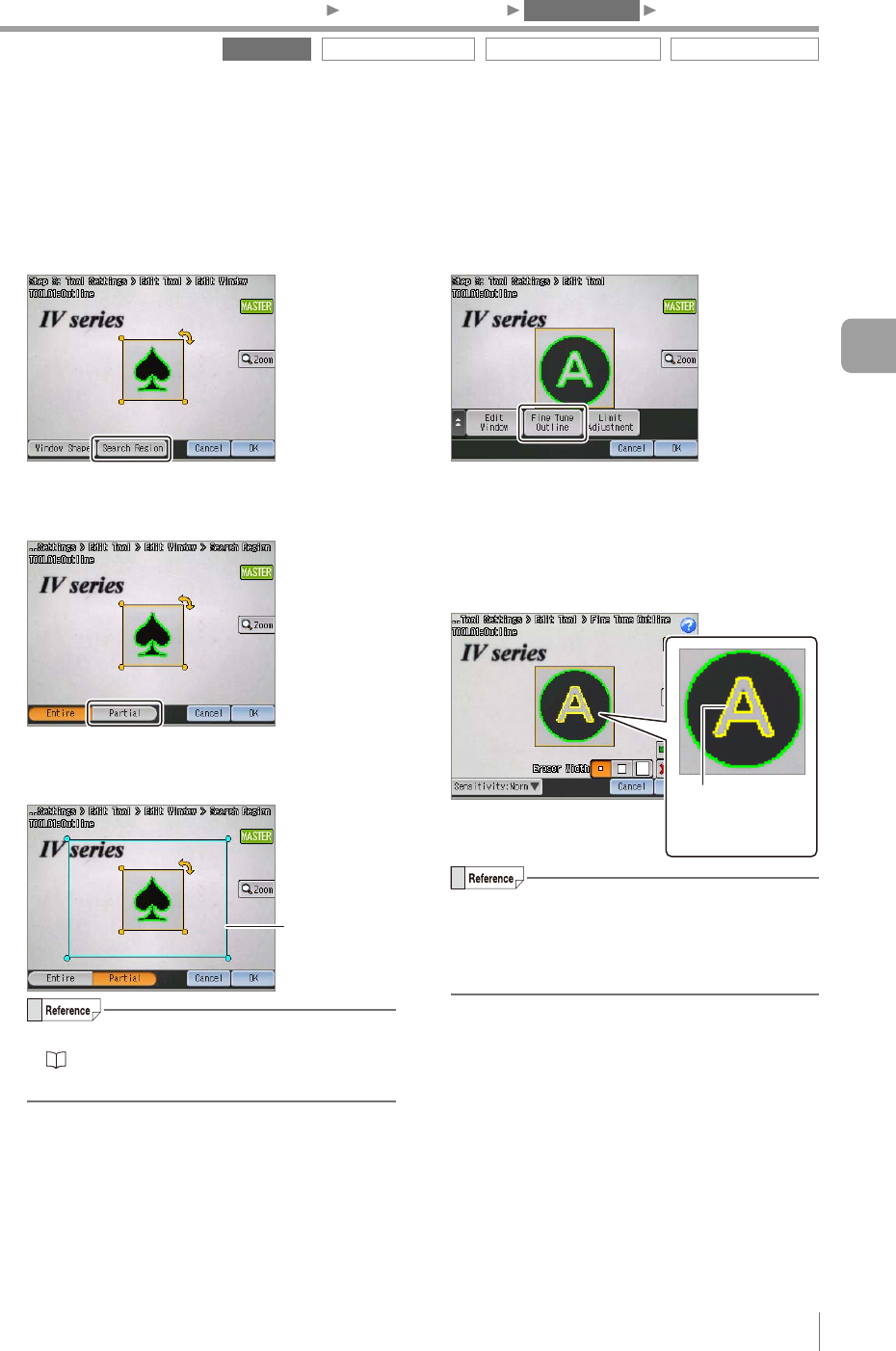

Setting a search region
When a range of the search region is to be specied,
perform the following procedures.
1
Tap the [Search Region] button.
The selection screen for a search region opens.
2
Tap the [Partial] button.
The editing screen for a search region opens.
3
Set a tool window indicates the search region.
Search region
For details of editing the tool window, refer to
“Editing the tool window” (Page 3-15).
The search region cannot be rotated.
4
After the setting is completed, tap the [OK]
button.
The system returns to the screen to set [Window
Shape] and [Search Region].
Settings for disabling outlines
Perform the following procedures to delete an
unnecessary extracted outline in the tool window.
1
Tap the [Fine Tune Outline] button.
The Settings Navigator guide opens.
Tap the [OK] button.
2
Specify an outline which detection is not
needed by tracing it with stylus.
The specied outline changes from green to yellow.
The outline that the
outline extraction has
disabled (yellow)
The eraser width (light/medium/heavy) of the
pen when tracing an outline can be switched
via [Eraser Width].
The [Undo] button is applicable up to 5 times.
3
After the setting is completed, tap the [OK]
button.
The system returns to the main screen for the
Outline tool settings.
Outline tool Color Area/Area tool Position Adjustment tool Extended functions
1. Image Optimization 2. Master Registration 3. Tool Settings 4. Output Assignment
4
Settings Navigator (Setting the Judgment Condition)
