User Manual

Keri USB-A Connection and Configuration
01576-011 7 of 7
Step 8 – Firmware Upgrade
NOTE: When upgrading firmware, the Administrative Client must run on the computer that is
running the NXT Gateway service.

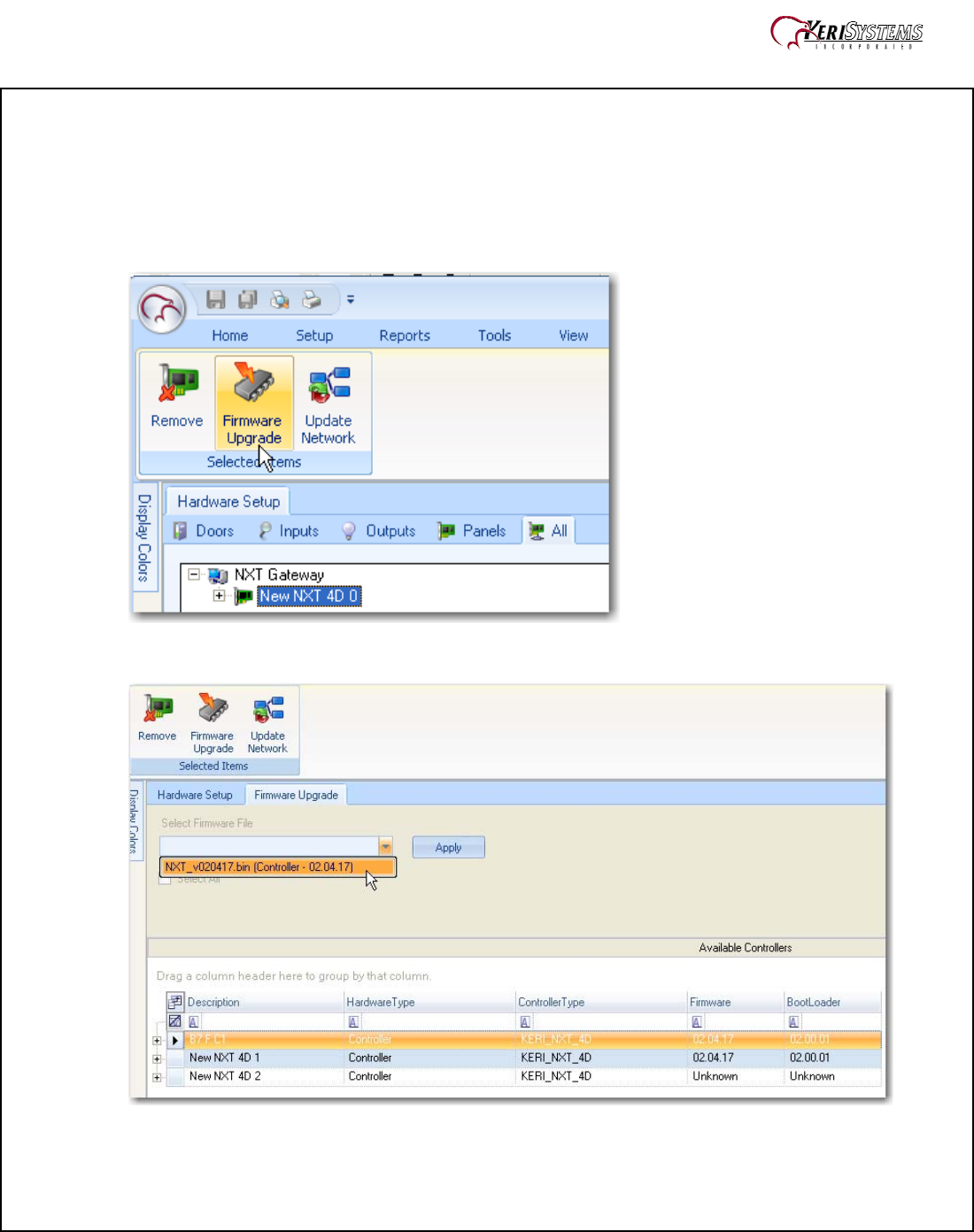

o In the Hardware Setup tab, select the All tab and then select a controller on the tree.
o Click on the Firmware Upgrade button, which will be present in the Selected Items Toolbar
ribbon.
o Select the controller or controllers that need to be updated in the Available Controllers list and
then select a firmware file and click apply.
o A progress bar will appear on the right side of the selected controller tracking the progress of
the firmware upgrade.
o The Firmware Upgrade is complete once the progress bar for all selected controllers reaches
100%.
