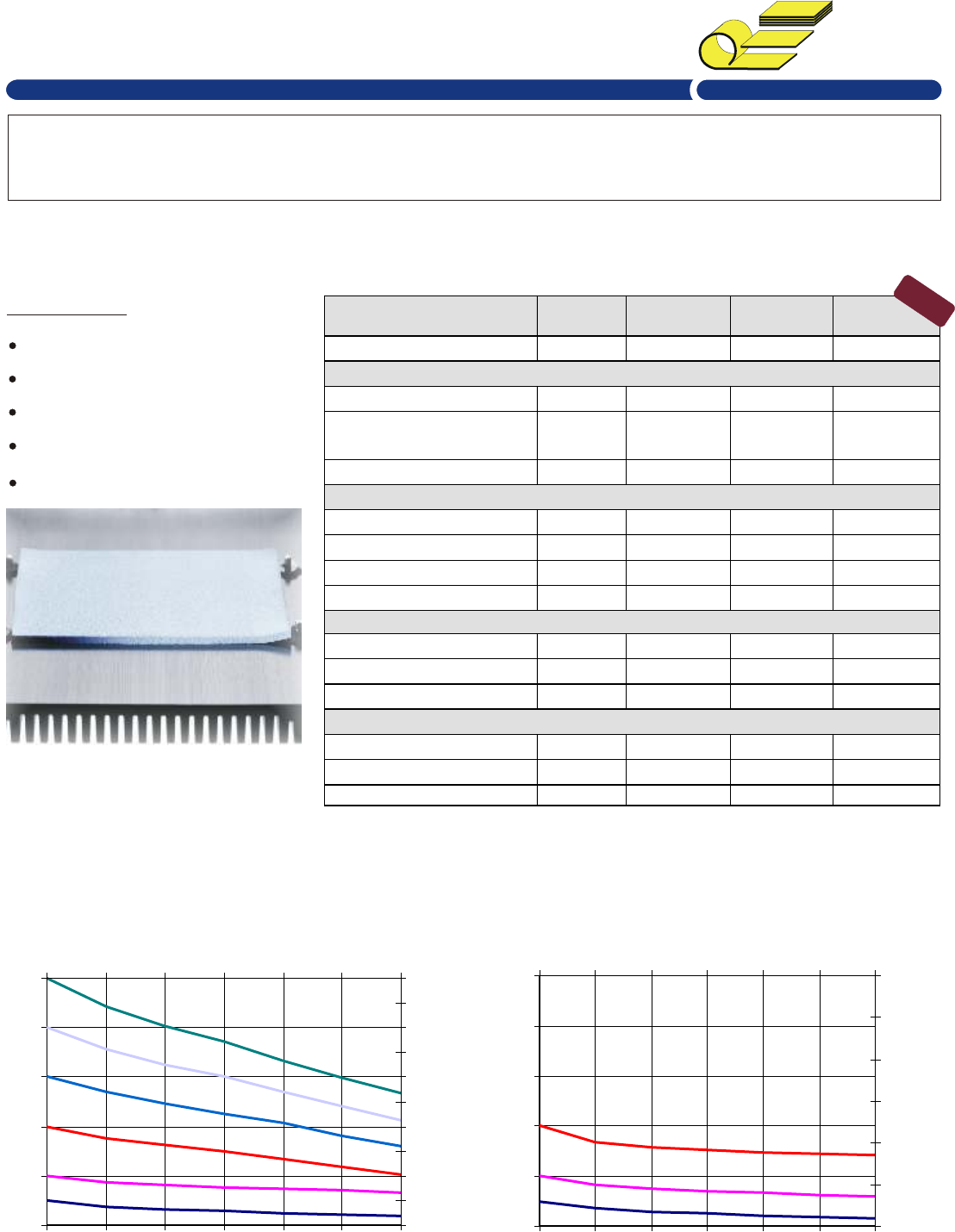

Data Sheet

® ®
Keratherm - Softtherm
86/300, 86/500, 86/600
Properties Unit 86/300 86/500 86/600
Colour blue brown grey
Thermal properties
Thremla resistance R
th
K/W 0.41 0.25 0.20
Thermal impedance R
ti
°Cmm²/W
Kin²/W
166
0.25
100
0.15
80.0
0.12
Thermal conductivity λ
W/mK 3.0 5.0 6.0
Electrical properties
Breakdown voltage U
d; ac
kV 8.0 1.0 1.5
Volume resistivity
Ωcm
1.0 x 10
11
1.0 x 10
11
1.7 x 10
10
Dielectric loss factor tan δ
1 5.0 x 10
-3
1.5 x 10
-3
2.0 x 10
-3
Dielectric constant ε
r
1 3.3 3.9 2.5
Mechanical properties
Thickness (+/-10%) mm 0,5 0.5 0.5
Hardness Shore 00 65 75 60 - 70
Youngs modulus * N/cm² 220 634 692
Physical properties
Application temperature °C -60 to +200 -40 to +200 -60 to +150
TML Ma.-% < 0.35 < 0.24 < 0.40
Flame class UL 94V-0 - being tested
* Youngs modulus- sample size 30mmx30mmx2.5mm; variable contact pressure;
compression 50% of the measured thickness
®
This group of Softtherm films has the best thermal behavior. The films are characterized by low thermal
resistance and best heat dissipation, as well as good dielectric strength. Good compressibility and low shore
hardness ensure reliable and simple processability.
Optional available with adhesive coating!
The following film thicknesses
are available:
86/300: 0.5 - 5.0 mm
86/500: 0.5 - 2.0 mm
86/600: 0.5 mm; 1.0 mm; 1.5 mm
Applications:
RD-RAM memory modules
Heat pipe thermal solutions
Automotive engine
Control units
Plasma supply console
N
EW
