Technical data



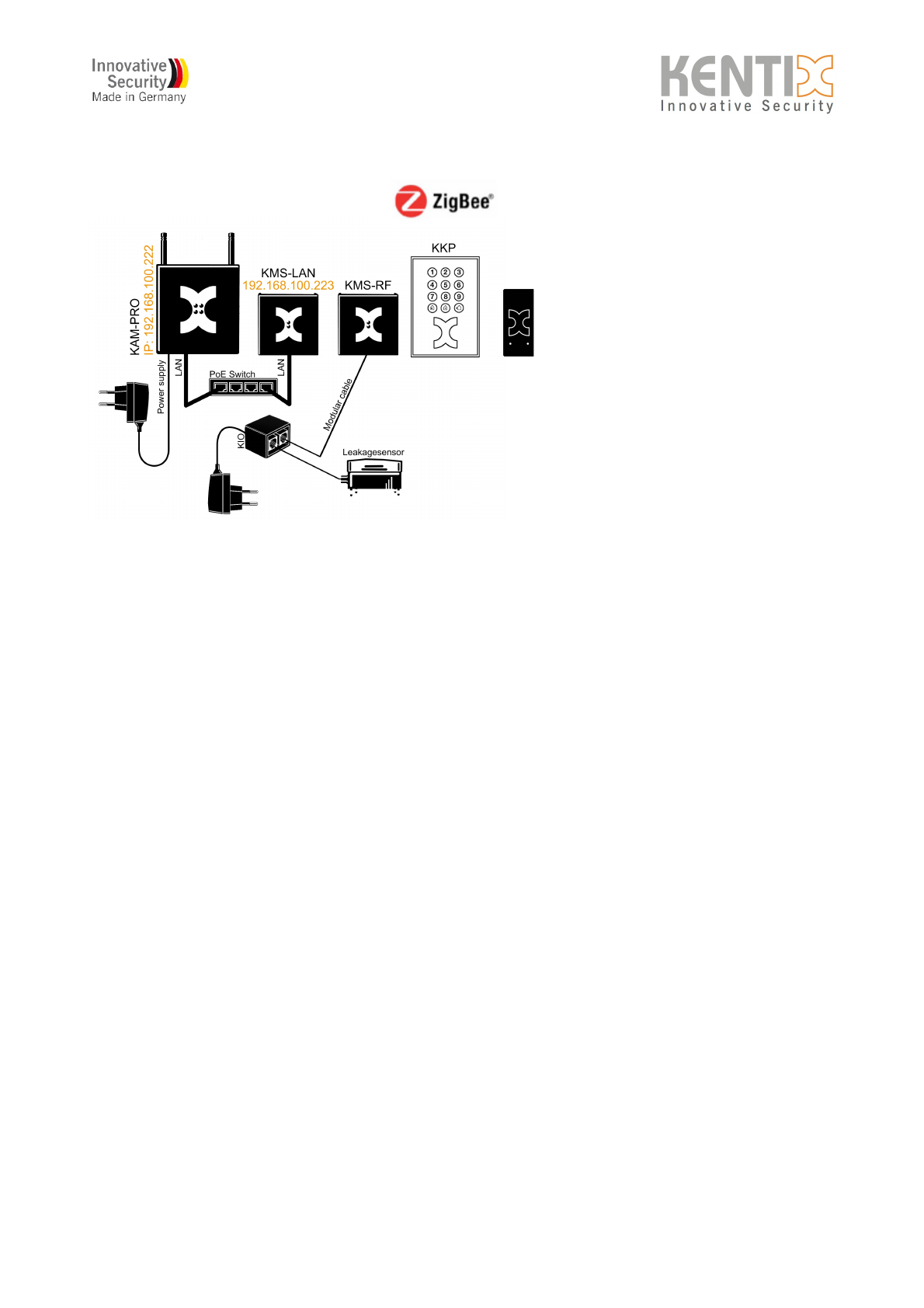

2.3. CompleteSet with optional equipment

1. MultiSensor-LAN:#
Establish network connection and external power supply, if needed.#
Connect to the sensor via browser by entering the Default-IP (192.168.100.223).#
Press „Login“ to reach configurations menu (Username: „admin“, Password: „password“).#
Activate AlarmManager communication in the network-section.#
After saving the settings and a restart, the sensor can be configured with the Kentix ControlCenter.
2. Leakage-Sensor:#
The connection of a Leakage-Sensor is realized with a KIO-Power-Adapter,#
either to the system-connector of a MultiSensor or the AlarmManager.
3. MultiSensor-Door:#
Start the teach-in process to add new radio devices in the ControlCenter.#
Press the „learn button“ of the sensor and keep it pressed.#
When pressing the button, the sensors plays a long sound which is repeated after about 5 seconds.
Release the button after the second sound. The sensor should appear in the list after about 20 seconds
and is configured automatically with the default settings. The successful configuration is signalized by a
green checkmark."
KMS-Door
Page  (04-2015, subject to change) kentix.com6
