Technical data


8.6. Kentix Alarm sirene (KFLASH1)
The Kentix Alarm sirene can be used for an acoustical and optical signalization in case of an alarm.#
It is suitable for an indoor and outdoor installation (protection class IP65).
The Alarm sirene is equipped with a 10 meter patch cable and a RJ45-connector and can be directly
connected to the system jacks of an AlarmManager or to all MultiSensor-RF/-LAN/-LAN-RF using an
additional adapter (RJ45-T-Adapter). The required adapters are included with the Alarm sirene.

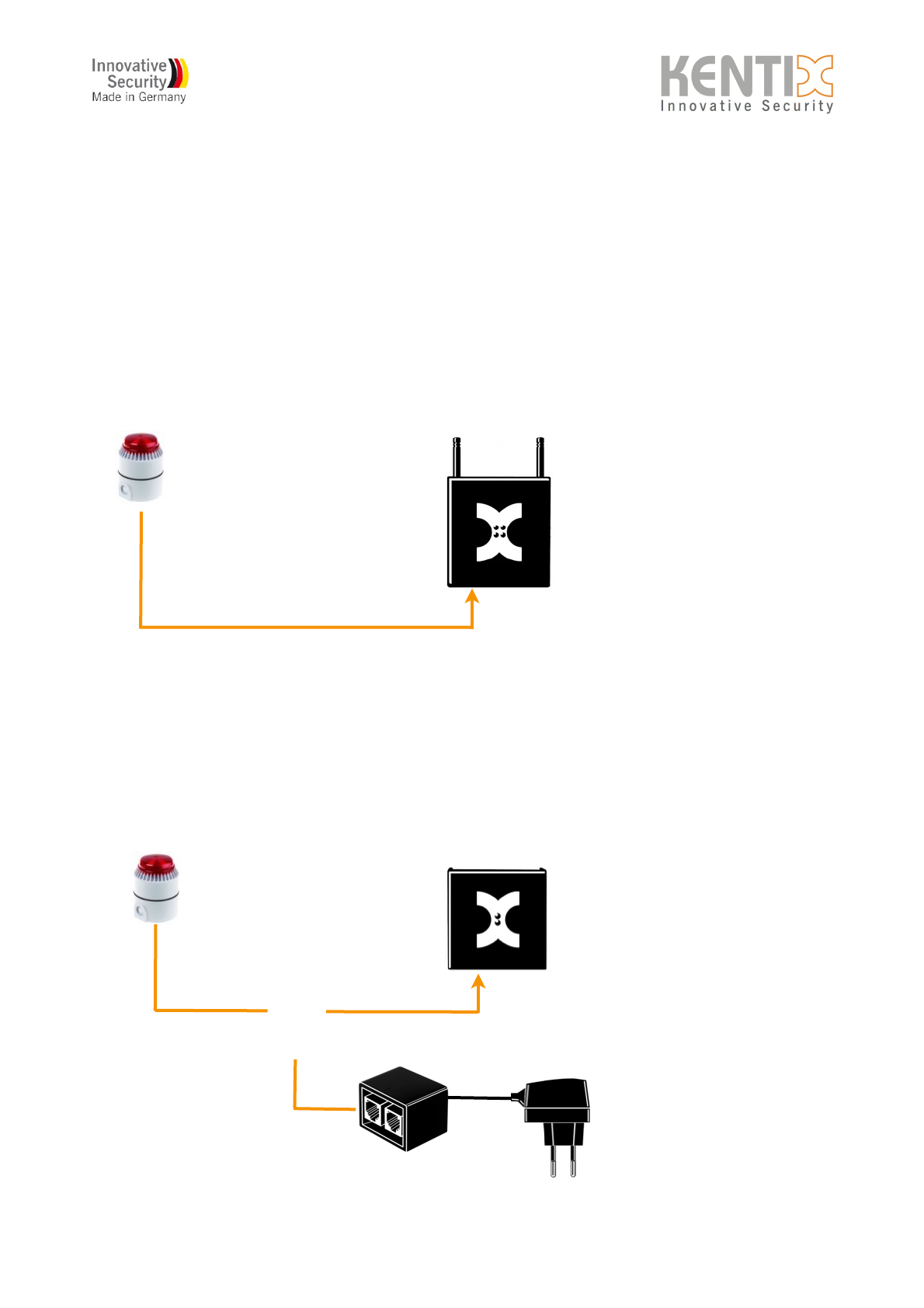

Figure 1: Alarm sirene at AlarmManager
Simply plug in the Alarm sirene into one of the system jacks.
Power supply and alarm signalization is done via the AlarmManager.
Figure 2: Alarm sirene at MultiSensor
Plug in the Alarm sirene into the RJ45 T-Adapter and connect the MultiSensor to the socket next to it using a
patch cable. The power supply is done via a Power-Adapter (KIO2), which is connected to the opposite side
of the T-Adapter.
When also the alarm input of the connected MultiSensor shall be used (e.g. by connecting a leakage
sensor), a KIO2 Power-Adapter can be used instead of the KIO1. In this case all connection cables have to
be patch cables.
Page  (04-2015, subject to change) kentix.com56
AlarmManager-BASIC/PRO
KENTIX System jack
Alarm sirene
MultiSensor-RF/-LAN/-LAN-RF/-RACK
KENTIX System jack
Alarm sirene
KIO1 or KIO2#
Power-Adapter
RJ45 T-Adapter
T
