5.3. MultiSensor-RF
The MultiSensor-RF is configured by the ControlCenter. Updating the device is neither possible nor
necessary.

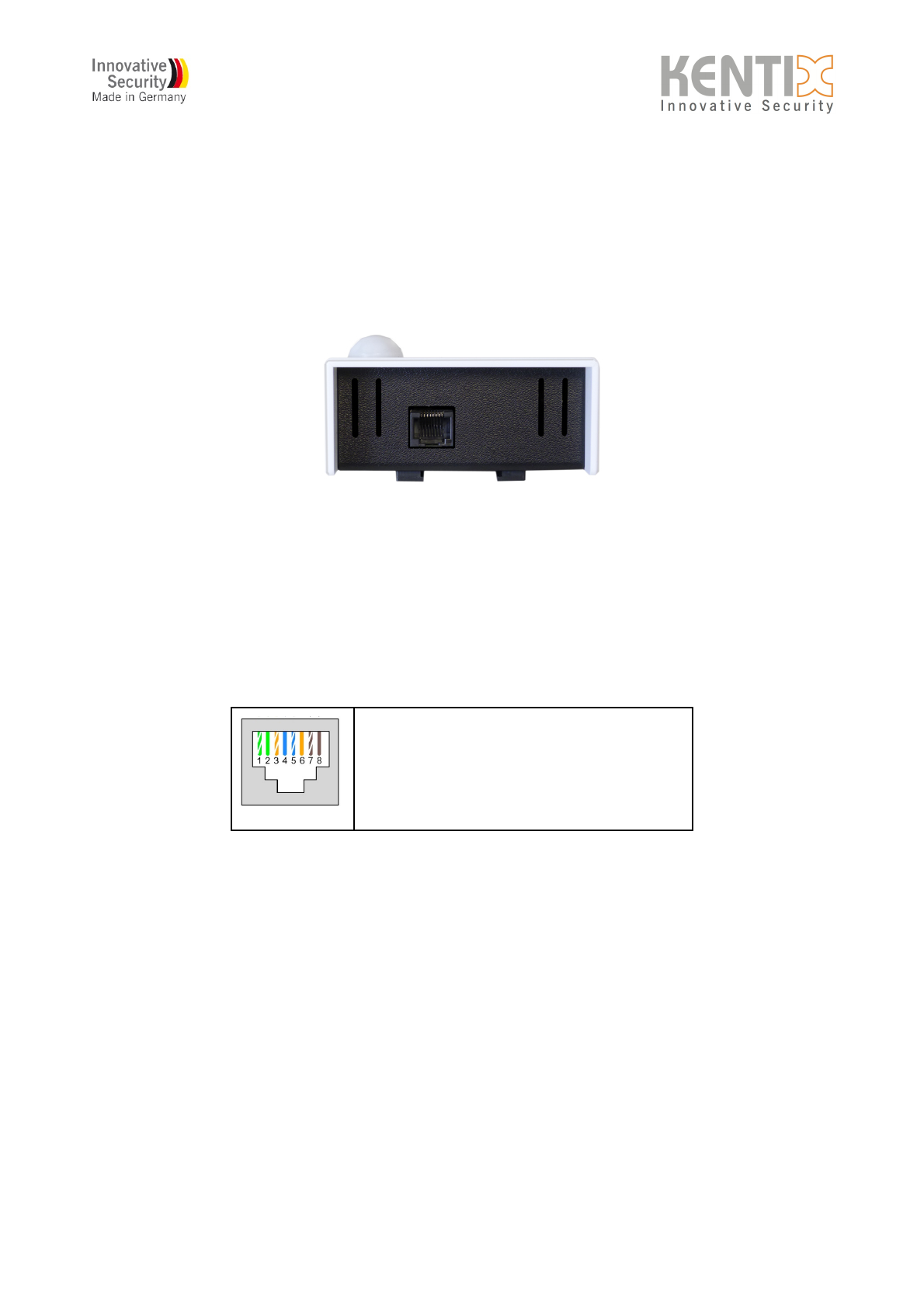

5.3.1. Kentix system jack - MultiSensor-RF
Via the Kentix system jack, located in the front of the MultiSensor-RF, system components such as leakage
detectors, door contacts, acoustic signals or alarms of USPs or climate devices can be connected. The
MultiSensor-RF is powered via the Kentix system jack.
To connect external devices or alarm in- or outputs, three connector modules are available:
1) Power-Adapter KIO 1: Power supply, 2 digital inputs
2) Power-Adapter KIO 2: Power supply only
3) Power-Adapter KIO 3: Power supply, 2 digital inputs and 2 relay outputs
5.3.2. Adding a MultiSensor-RF
1. For adding a MultiSensor-RF to the AlarmManagers configuration start the teach-in process in the Kentix
ControlCenter and press the „learn button“ for 1 second. The button can be accessed via the hole in the
cases back.
2. The sensor should appear in the list after approx. 15-20 seconds and is configured automatically.
3. The teach-in process is completed when the sensor is marked in the list with a green checkmark.
4. Click on Apply for completion to add the MultiSensor to the devices list.
1 - Internal system voltage (GND)
2 - Alarm output 1 (Open Collector 100mA)
3 - Alarm output 2 (Open Collector 100mA)
4 - Power supply 10-32VDC (+/-)
5 - Power supply 10-32VDC (+/-)
6 - Alarm input 1 (External dry contact, no/nc)
7 - Alarm input 2 (External dry contact, no/nc)
8 - Internal system voltage (5V)

KENTIX system jack
