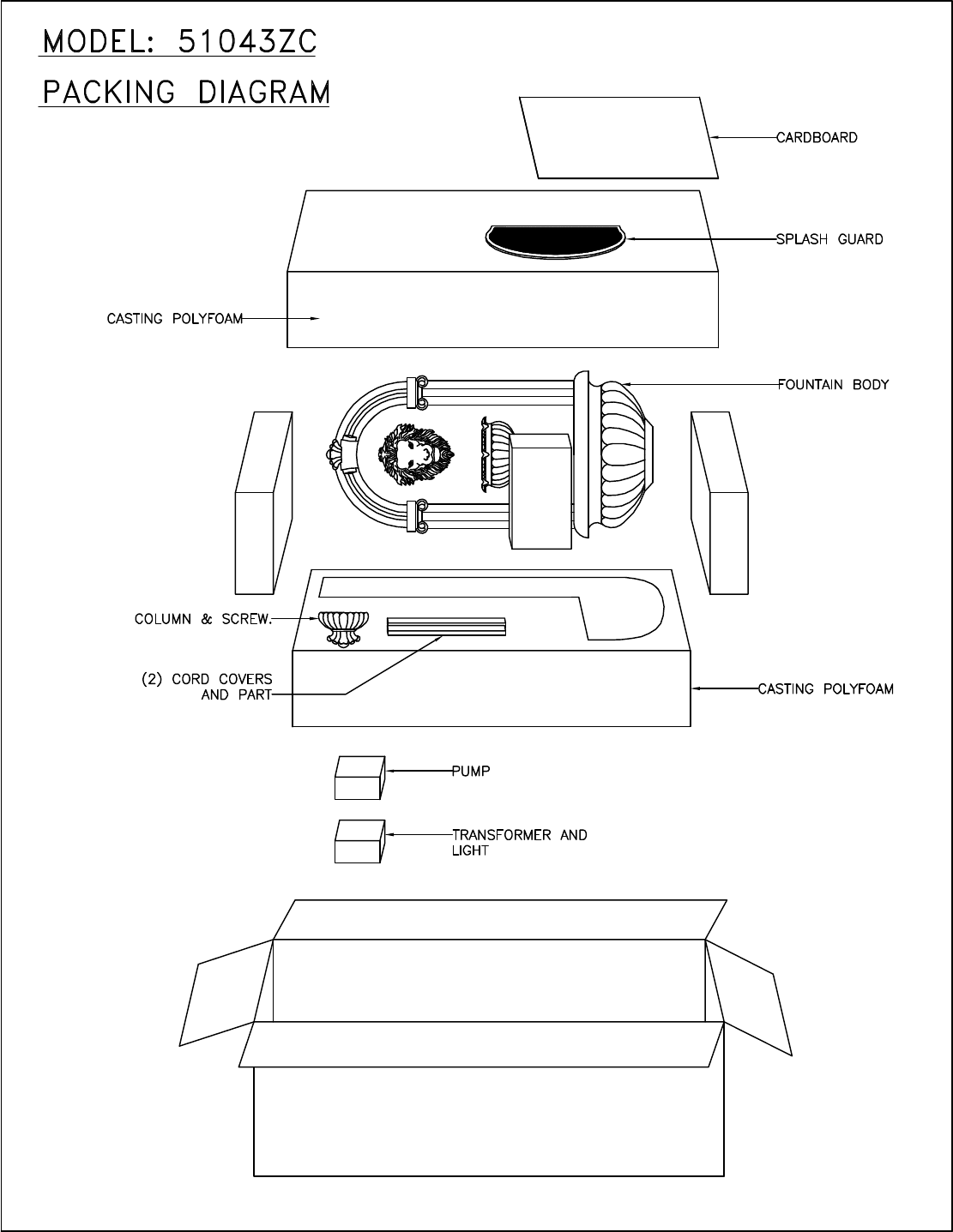

You should have received the following parts in the package. Please ensure that all parts are accounted for.
ROYAL Wall Fountain Care and Instruction Manual
51043ZC Assembly Instructions Thank you for purchasing a Kenroy Home water feature, you are now only minutes away from filling your home or outdoor living space with peaceful displays. Our guarantee backs all of our water features, please do not hesitate to contact our Customer Support Team for resolutions to any parts or installation concerns. Customer support Team For any additional questions or concerns please contact our Customer Support Team: 904-642-4340 @KenroyHome customerorders@kenroyhome.
1043ZC Assembly Instructions Please reference the separate parts list and ensure that all pieces are included in the package prior to assembly. Suggested tools Drill Phillips screwdriver not supplied Ladder pencil Safety goggles To protect the finish, place all parts on a soft surface when unpacking. More than one person may be required to complete the assembly of this product. When assembling ensure that all parts are firmly tightened.
51043ZC Assembly Instructions Unscrew parts M and L from bottom (B). Use M and L to secure bottom (B) to fountain body (A) from the back. Place pump (G) into basin and attach to rubber hose. Place light (I) onto post in basin. Feed pump cord and light cord through hole in back of basin. Cover the hole with hole cover (N).
51043ZC Assembly Instructions Place mounting bracket (D) on wall in desired location. Ensure it is level and mark holes. Drill 6 mm (1/4") pilot holes on the marked spots and insert (3) anchors (K). (If fastening to studs, skip this step.) Secure mounting bracket (D) to wall with (3) supplied screws (J) and hang fountain. Optional, if not using cord covers skip to step 6. Place the cord channel (F) on the wall and mark the holes.
51043ZC Assembly Instructions Attach the cord channel (F) to the wall with (2) supplied screws (J). Place cords inside the cord channel (F) and press the (2) cord covers (E) firmly on channel to secure. FINAL STEPS Fill the reservoir with distilled water between the fill lines. 7 Place the splash guard (C) into the fountain body. Connect the light connectors (H) and (I) and screw the cap tightly. Plug light transformer (H) and pump (G) into outlets and turn light on at switch.
51043ZC Assembly Instructions PUMP SAFETY & TROUBLESHOOTING To clean the pump Unplug the pump from the electrical outlet. Use a small soft brush or place it under a water stream to remove debris. To keep water clean Periodically change water to prevent algae buildup. If the pump fails to run: • Check circuit breaker, or try a different outlet. • Check tubing for kinks and obstructions. • Clean out any algae buildup. • Remove the front cover & impeller cover to access the impeller area.
51043ZC Assembly Instructions WATER FEATURE warnings & Troubleshooting • Splashing may occur when the fountain is first turned on, protect surrounding surfaces as needed. Do not place the water feature on or near any surface that can be damaged by water. • Distilled water is recommended to reduce mineral deposits, bacteria build up and algae that may damage the water feature basin and pump. To reduce the risk of electrical shock, always disconnect the power supply before working with the water feature.
51043ZC Assembly Instructions Frequently Asked Questions What should I consider when selecting a water feature? In addition to your personal style tastes, be sure you have an area for your water feature that can be safely exposed to water, as splashing can occur. Also take into consideration what a water feature can add to your environment: the sound of flowing water or decorative lights.
51043ZC Assembly Instructions Frequently Asked Questions continued How much water do I need to keep in the water feature? Where possible in our water features, we have included fill lines to help you visualize the water level required for proper function. If your water feature does not include fill lines, please check the instruction manual for water capacity.
51043ZC Assembly Instructions Frequently Asked Questions continued How do I change my pump speed? Depending on the type of pump, you will need to either move the slider or turn the knob. How do I clean my pump? 1. Disconnect the power supply and then remove pump cover/filter. 2. Gently pull impeller/rotor assembly out of the pump housing 3. Rinse the impeller/rotor assembly and the cavity with clean water. 4. If your pump comes with a sponge filter rinse this with clean water.
