INTEGRATION GUIDE
3.14 Dual wire feeder support
Dual wire feeder support in the A7 MIG Welder system
Fieldbus
1
2
3
4
5
6

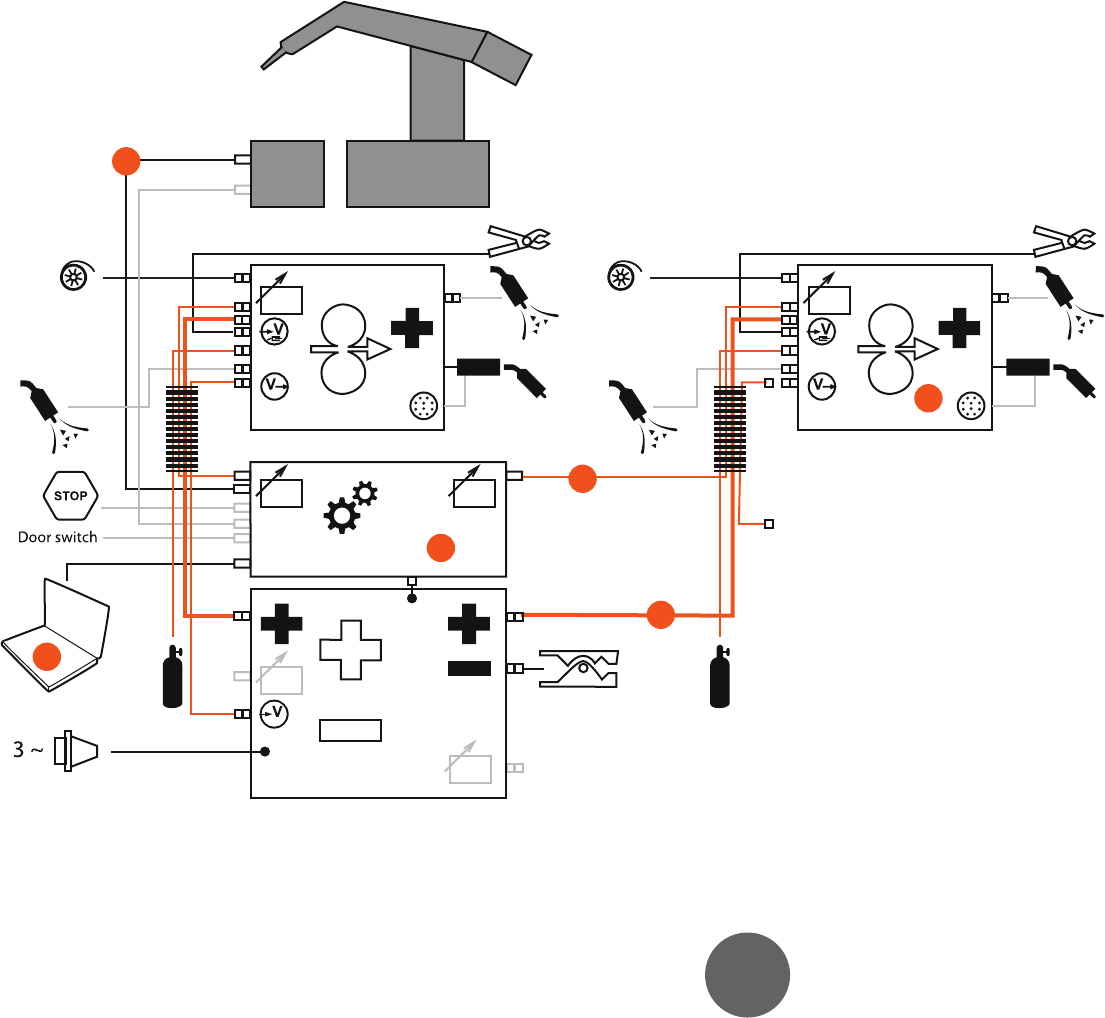

Figure 3.14 Connecting two wire feeders into A7 MIG Welder system
1. Dual wire feeder extension kit
2. Extra control cable
3. Extra welding cable
4. Second wire feeder
5. Web user interface
6. Fieldbus
The A7 MIG Welder supports two wire
feeders, one operational at the time.
This feature is enabled by an optional
extension kit. The extension kit is
installed inside the robot interface unit.
The kit includes a wire feeder switching
card, a at band cable, and a harness
with connectors for the wire feeder
and for the mother board of the robot
interface unit. The operational wire
feeder can be selected from the setup
panel or web user interface, or let to be
selected from the robot pendant. The
wire feeder conguration is described in
the Subsection 5.12, “Wire feed settings”.
