Operation Manual

23
A7 MIG Welder© Kemppi Oy 2018 1804
INTEGRATION GUIDE

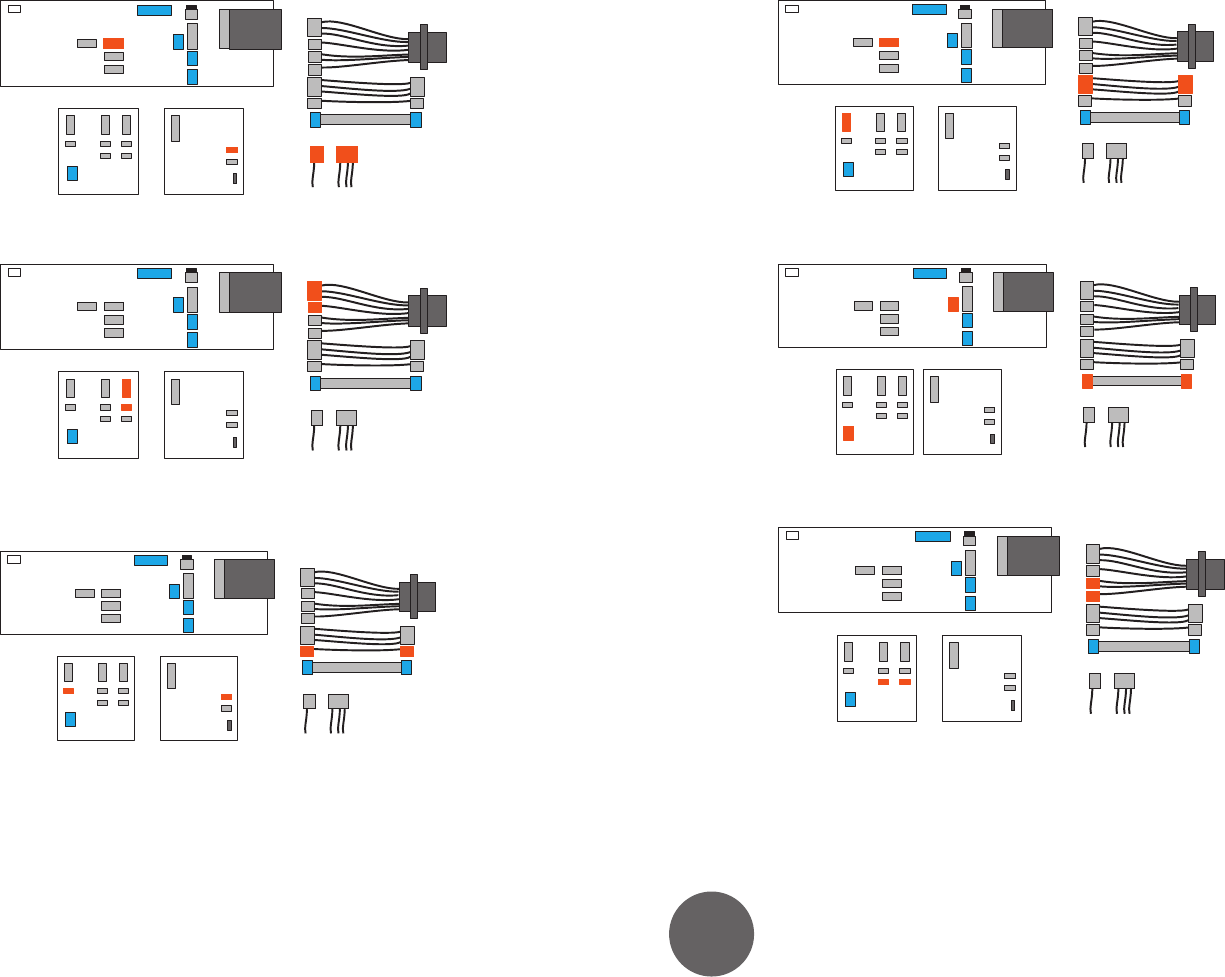

13. Plug the primary wire feeder to the switching card A105 primary outputs (harness X3
to A105 X6 and harness X2 to A105 X3).
A101
X2
X2
X3
X3
A105
A102
14. Plug the secondary wire feeder to the switching card A105 secondary outputs.
A101
X7
X4
X4
X7
A105 A102
15. Plug a touch sensor cable between the switching card A105 input and the touch
sensor card output A102.
X2
X5
A102
A101
X2X5
A105 A102
16. Plug a bus cable between the switching card A105 input and the mother board A101
output.
X2
X2
A101
X2X2
A105 A102
17. Plug a at band cable between the switching card A105 and the mother board A101.
A101
X1
X10
X1X10
A105 A102
18. Plug the water valve control cables to the switching card A105.
A101
X9X8
X8
X9
A105 A102
