20 3/4

5/8

17 3/4

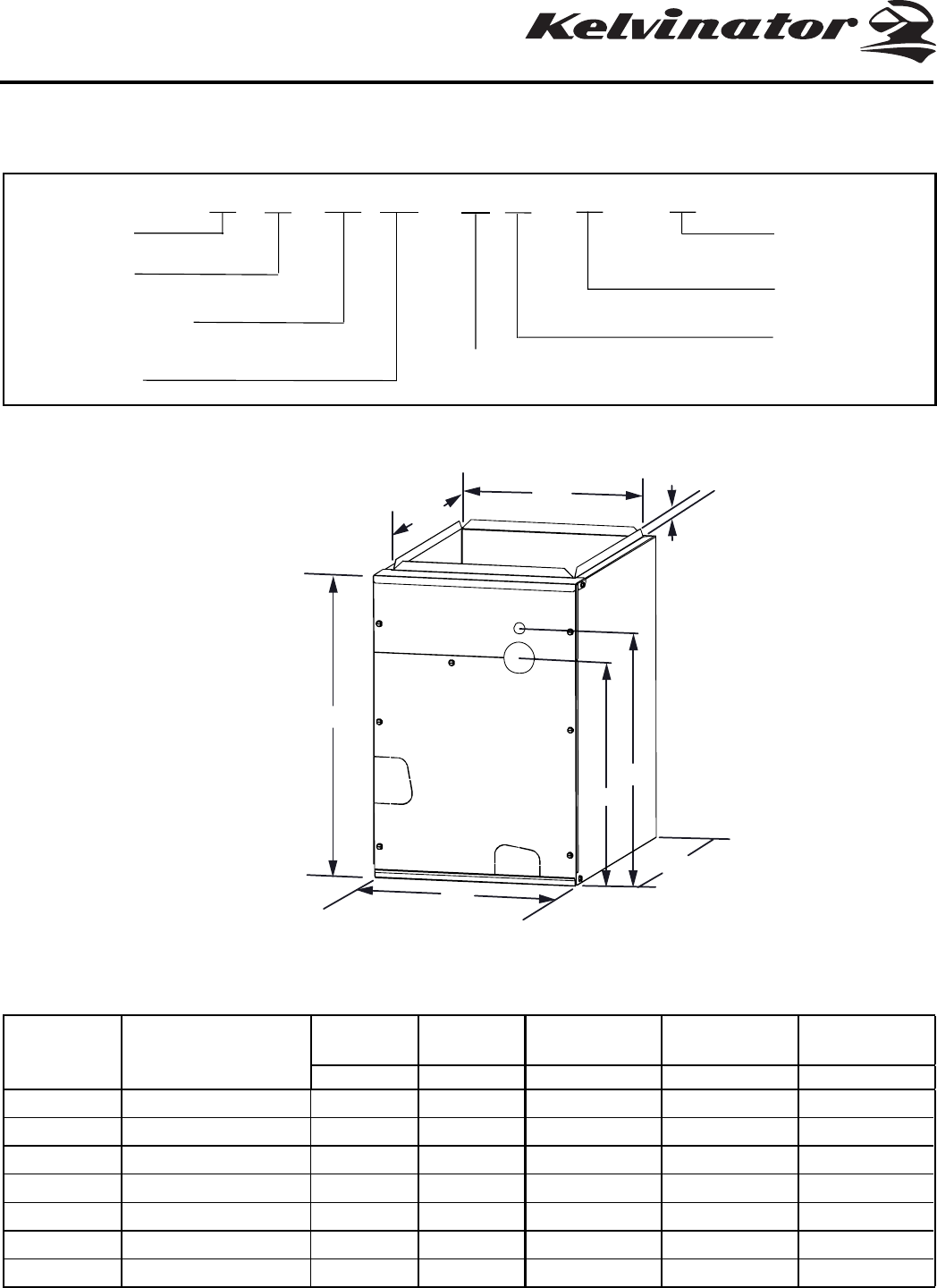

MODEL IDENTIFICATION CODE

C7 Indoor Coils with Oriﬁce

Cased Coil Wrapper

SKU Cabinet Identiﬁer

Overall

Width

Overall

Height

Liquid Line

Height

Suction Line

Height

Opening

Width

W H HL HS OW

920256 A 14 1/4" 20 3/4" 17 1/2" 15 1/2" 12 7/8"

920257 A 14 1/4" 26 3/4" 23 1/2" 21 1/2" 12 7/8"

920258 B 17 1/2" 20 3/4" 17 1/2" 15 1/2" 16 1/8"

920259 B 17 1/2" 26 3/4" 23 1/2" 21 1/2" 16 1/8"

920260 C 21" 26 3/4" 23 1/2" 21 1/2" 19 5/8"

920261 C 21" 30 1/4" 27" 25" 19 5/8"

920262 D 24 1/2 30 1/4" 27" 25" 23 1/8"

C7 CASED COIL WRAPPERS

C 7 BA M 0 36 U - B

Coil

Design

Series

BA = "A" Vertical Coil

BH = Horizontal

Multipoise Coil

Micro-Channel

Nominal

Capacity/Range

(00/0000) Btuh

C = Cased Coil

U = Uncased Coil

Cabinet Identiﬁer

A = 14-1/4" Width

B = 17-1/2" Width

C = 21" Width

D = 24-1/2" Width

TECHNICAL

SPECIFICATIONS

Metering Device

0 = Oriﬁce

Summary of content (4 pages)

PAGE 1
TECHNICAL SPECIFICATIONS C7 Indoor Coils with Orifice MODEL IDENTIFICATION CODE C 7 BA M 0 36 U - B Coil Design Series Cabinet Identifier A = 14-1/4" Width B = 17-1/2" Width C = 21" Width D = 24-1/2" Width C = Cased Coil U = Uncased Coil BA = "A" Vertical Coil BH = Horizontal Multipoise Coil Nominal Capacity/Range (00/0000) Btuh Metering Device 0 = Orifice Micro-Channel 5/8 OW 17 3/4 Cased Coil Wrapper H HL HS 20 3/4 W C7 Cased Coil Wrappers SKU 920256 920257 920258 920259 920260 920261
PAGE 2
3 1/8 H HL HS 2 1/2 W 19 1/2 Uncased Coil C7 UNCASED COIL DATA C7 UNCASED Face Area (ft^2) 1824-A 3036-A 1824-B 3036-B 3642-B 30-C 3648-C 48-C 60-C 42-D 48-D 60-D 3.43 3.43 3.43 3.43 4.87 3.43 4.87 5.82 5.82 4.87 5.82 5.82 20 18 20 20 20 20 20 20 20 20 20 20 W - Width (in.) 12-3/4 12-3/4 16 16 16 19-1/2 19-1/2 19-1/2 19-1/2 23 23 23 H - Height (in.
PAGE 3
C7 CASED COIL DATA C7 CASED 1824-A 3036-A 1824-B 3036-B 3642-B 30-C 3648-C 48-C 60-C 42-D 48-D 60-D 3.43 3.43 3.43 3.43 4.87 3.43 4.87 5.82 5.82 4.87 5.82 5.82 20 18 20 20 20 20 20 20 20 20 20 20 W - Width (in.) 14-1/4 14-1/4 17-1/2 17-1/2 17-1/2 21 21 21 21 24-1/2 24-1/2 24-1/2 H - Height (in.) 20-3/4 20-3/4 20-3/4 20-3/4 26-3/4 26-3/4 26-3/4 30-1/4 30-1/4 30-1/4 30-1/4 30-1/4 HL - Height of Liquid Line (in.
PAGE 4
Drain Pan Dimensions A B C D Dimension Cabinet Cabinet Cabinet Cabinet 191/2 163/8 W 12 3/4 16 19 1/2 23 B 6 5/8 9 7/8 12 3/8 16 7/8 B W Cased Coil Height SKU Drain Pan—Bottom View Liquid Line Tube kits COIL HEIGHT CABINET LIQUID LINE TUBE KIT Model Number Cabinet SKU 921515 C7BAM01824C-A 920256 921519 C7BAM01824C-B 920258 921661 C7BHM01824C-A 920257 921663 C7BHM01824C-B 920259 921700 C7BAM030C-C 920260 18” A 921824 921701 C7BHM030C-C 920260 18” B 921825 921517 C7
