Model 4299-9 Dual Fixed Rack-Mount Kit
071313200 / June 2013 7
To install the mounting hardware on the instruments:
1. Place the instruments side-by-side (see figure).
2. Secure a front-rack ear (1) to each instrument using two 6-32 x 5/8" pan head screws (2) as shown in the
figure.
3. Orient the hinges so that the knuckles are toward the front of the instruments.
4. Secure one-half of the hinge (3) to the right instrument with two 6-32 x 7/16" flat head screws (4).
5. Secure the other half of the hinge (3) to the left instrument with two 6-32 x 7/16" flat head screws (4)

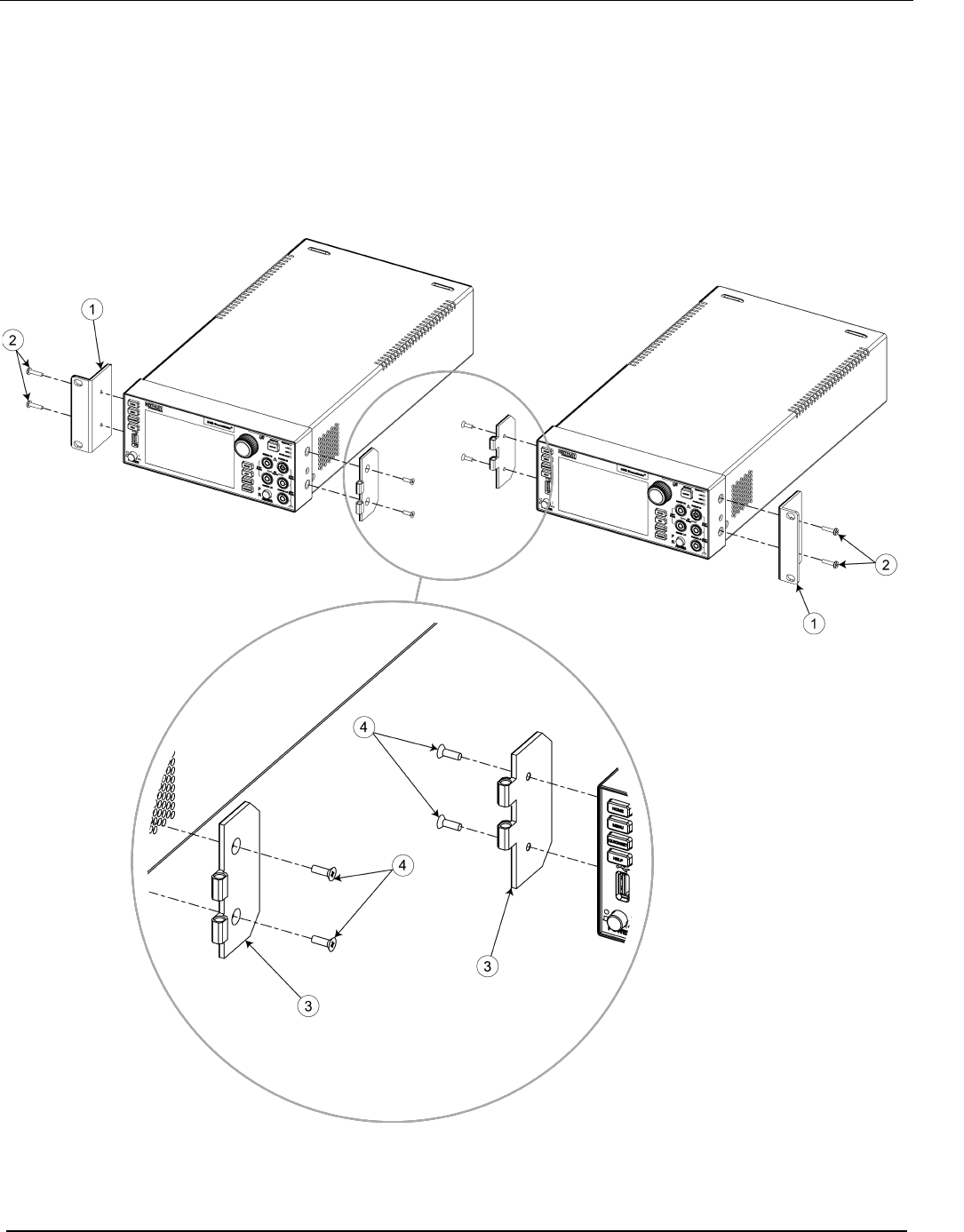

Figure 6: Install mounting hardware on the instrument
