Model 4299-9 Dual Fixed Rack-Mount Kit
10 071313200 / June 2013
4. Place the shelf clip (1) on the shelf (2) and lightly secure it with the carriage bolt (3) and nut (4).
5. Slide the shelf clip (1) toward the instrument and then fully tighten the nut (4).
6. Repeat steps 4 and 5 to install the shelf clip for the other instrument.

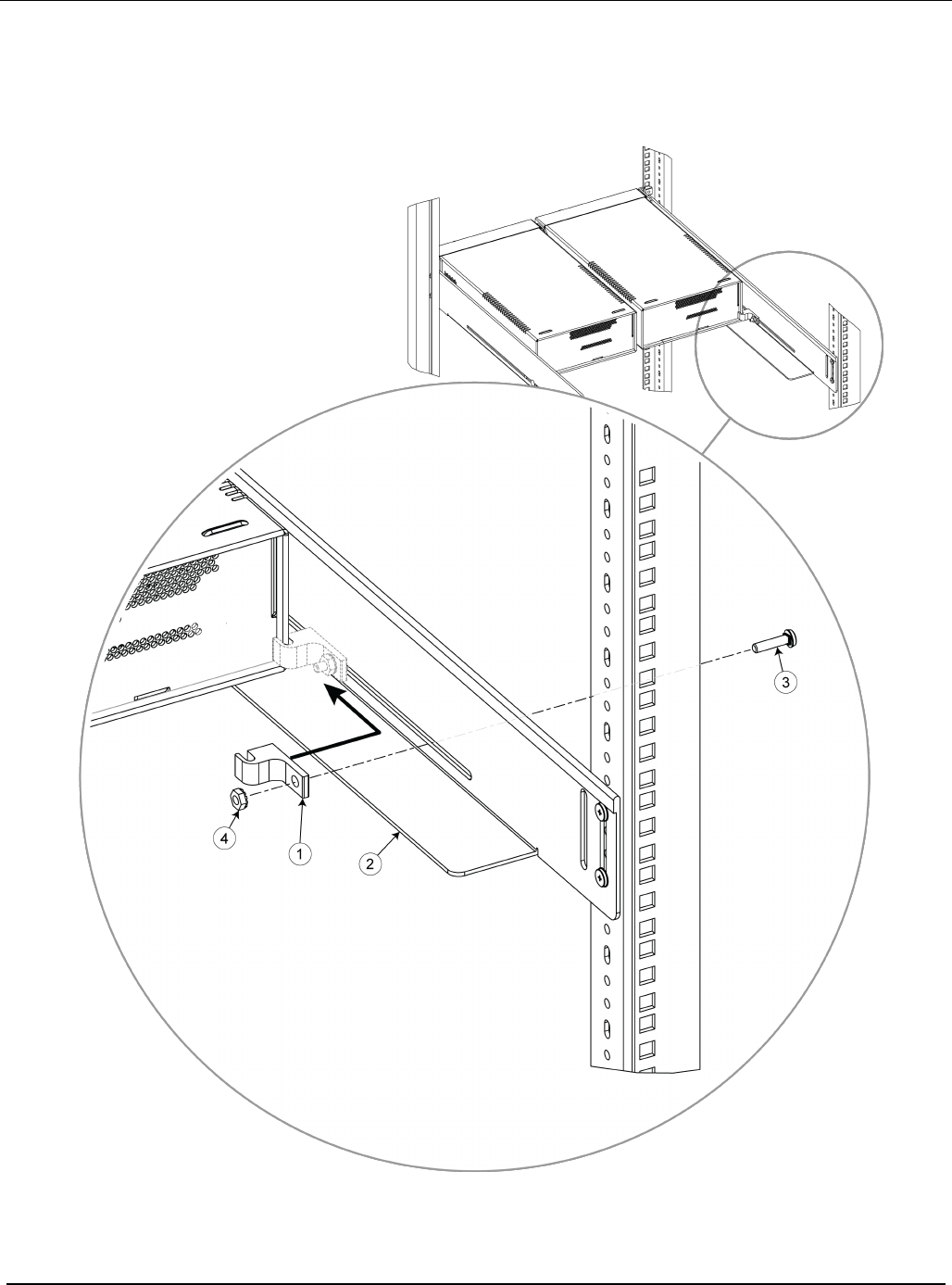

Figure 9: Install the shelf clips
