Squaring
Checking the machine for squareness
For your machine to produce accurate square cuts the main body needs to be set so that is is 90o
to the squaring arm, for the following procedure you will need a piece of card or mount tboard at
least 60cm x 100cm (2’ x 3’). The larger the board the more accurate you can set the machine.

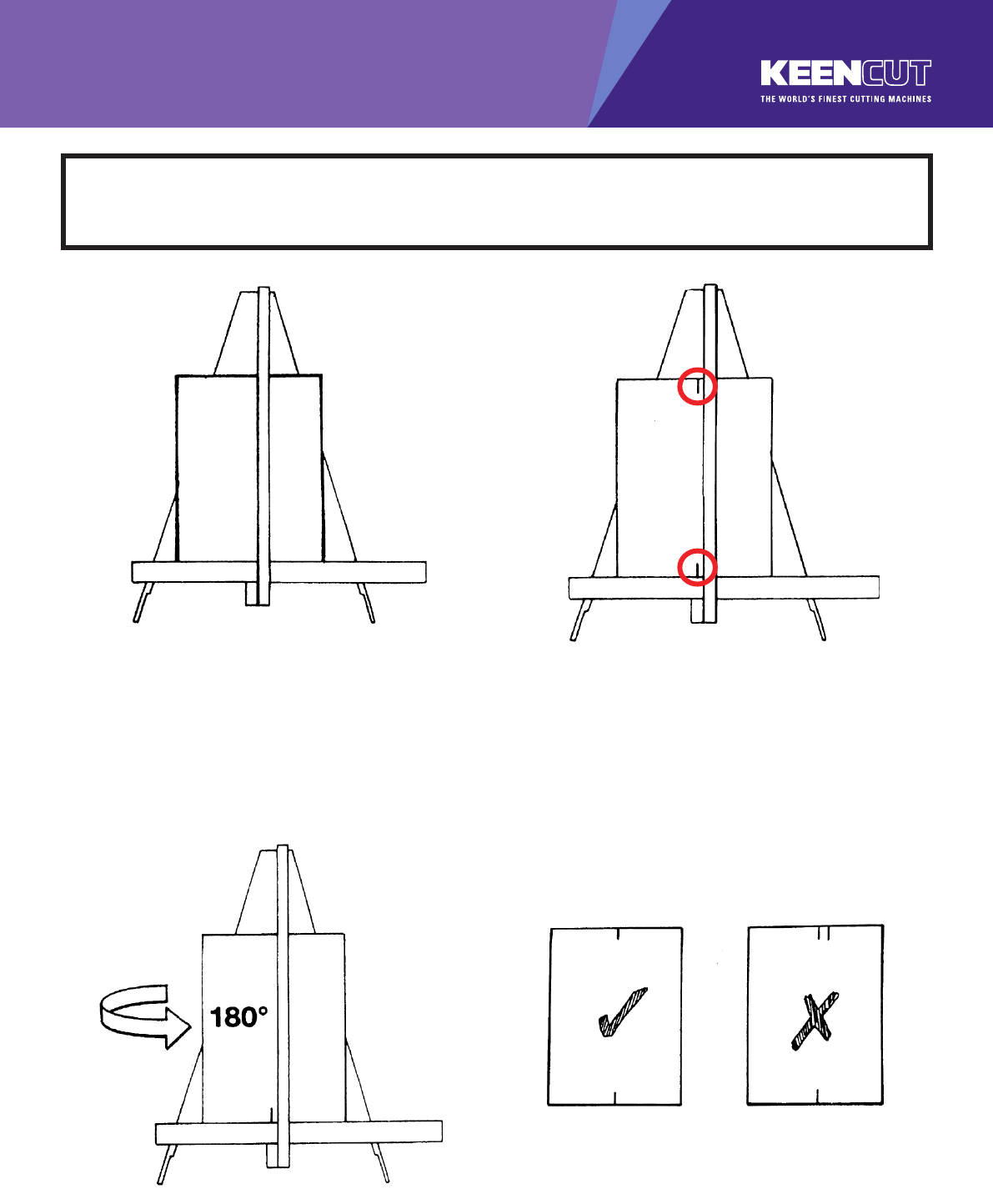

Place the board on the machine vertically as
shown and apply the clamp ensuring the bottom
edge is in rm contact with the squaring arm.
Select the cutting blade on the lower cutting head
(see section 6). Cut into the top board to produce
a cut approximately 3cm (1”) long. Disengage
the cutter using the cutter release lever. Lower
the cutter and make a similiar cut at the bottom
of the board.
Unclamp and turn the board around (like the
page in a book) and place it back in the machine
so the same edge is still on the squaring arm but
do not clamp it. Align and engage the blade so it
enters the previous made cut at the bottom edge
of the board. Now apply the clamp.
Raise the cutter to the top of the board, if the
machine is square the blade should enter
the same cut as made previuosly. If not refer
to the following page to make the necessary
adjustment.
❶ ❷
❸ ❹
