3.4 Installing the Carriage Support Frame

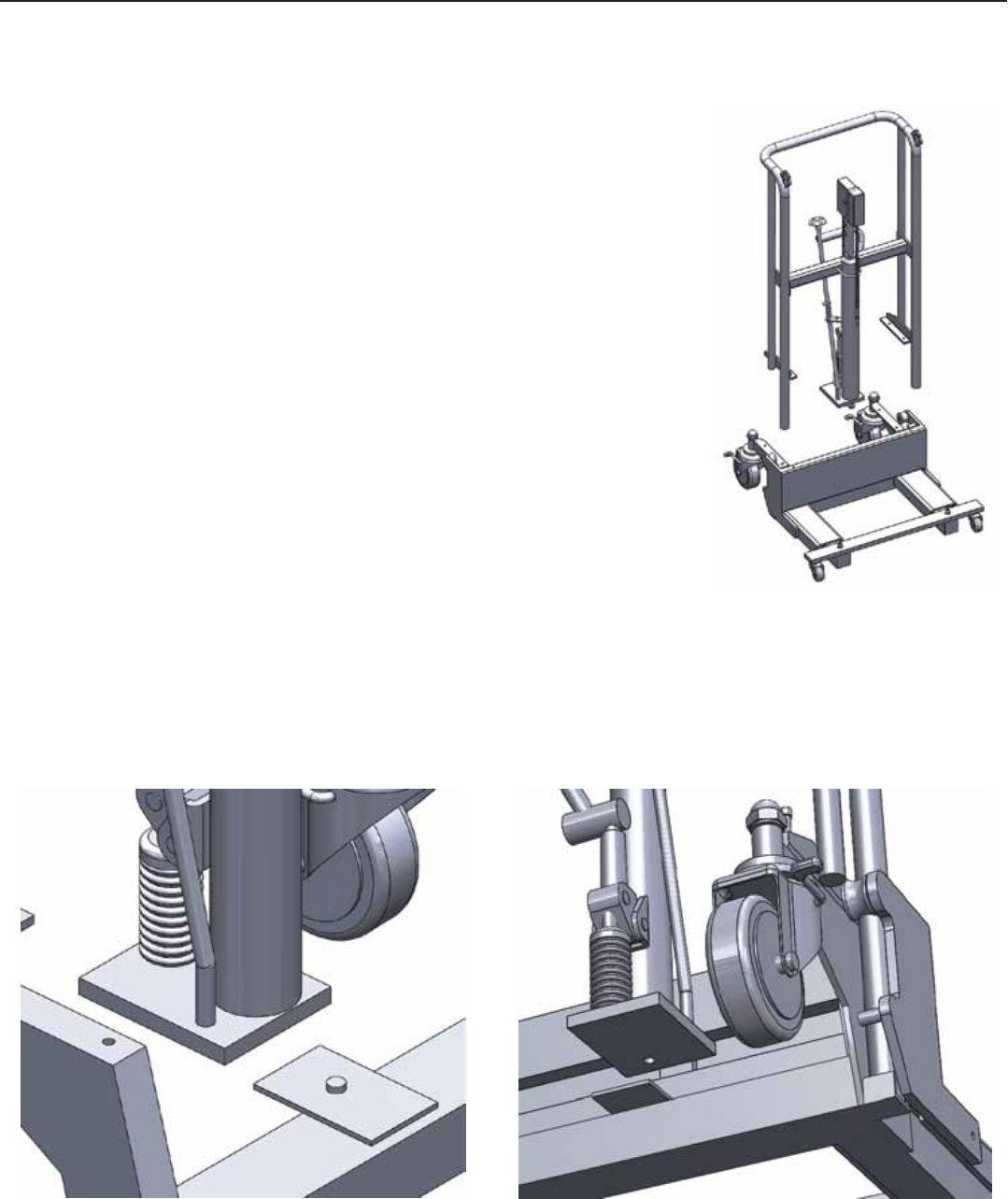

1. Pick up the carriage support frame and guide the

support frame’s front tubes between the guide bearings and

the lifter carriage frame so that they rest on the caster frame’s

support bracket.

2. On the carriage support frame, line the tube support

bracket holes with the holes on top of the caster frame.

3. On the bottom of the hydraulic cylinder, line up the hole so that it rests on top of

the boss on the caster frame.
