Product Manual

6
Installation Guide

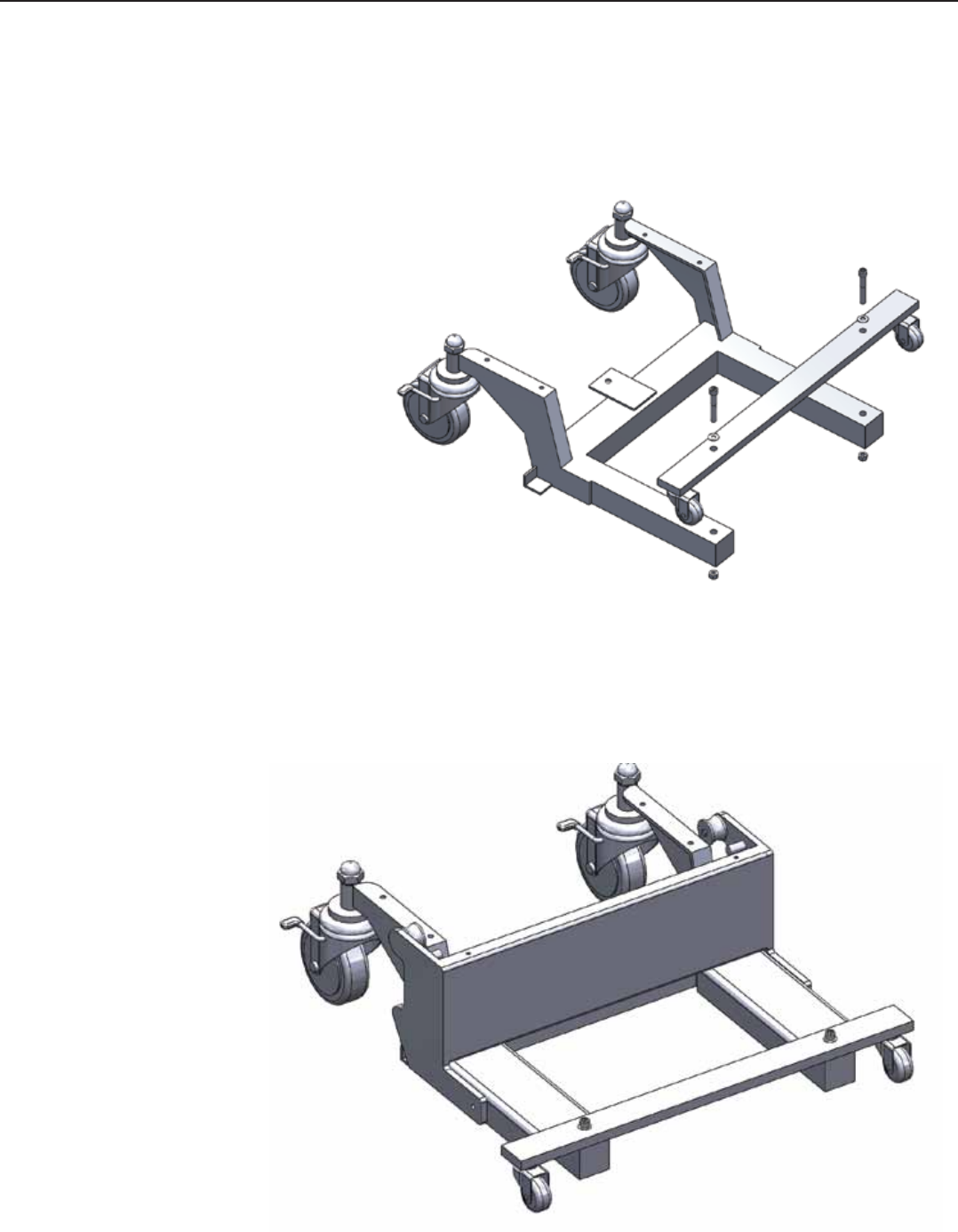

3.2 Installing the front caster wheel frame
1. Lay the caster frame assembly at on the ground and place the front caster wheel
frame on top lining up the holes.
2. Using a 19mm wrench or
adjustable wrench, place a
washer on both of the long
bolts and then put them
through the front caster
frame and caster frame
assembly.
3. Place a nut on each end
of the bolt and tighten.
3.3 Placing the Lifter Carriage on the Caster Frame
1. With the Caster Frame Assembly on the ground, place the Lifter Carriage on top of it
so that the forks rest at on the base.
