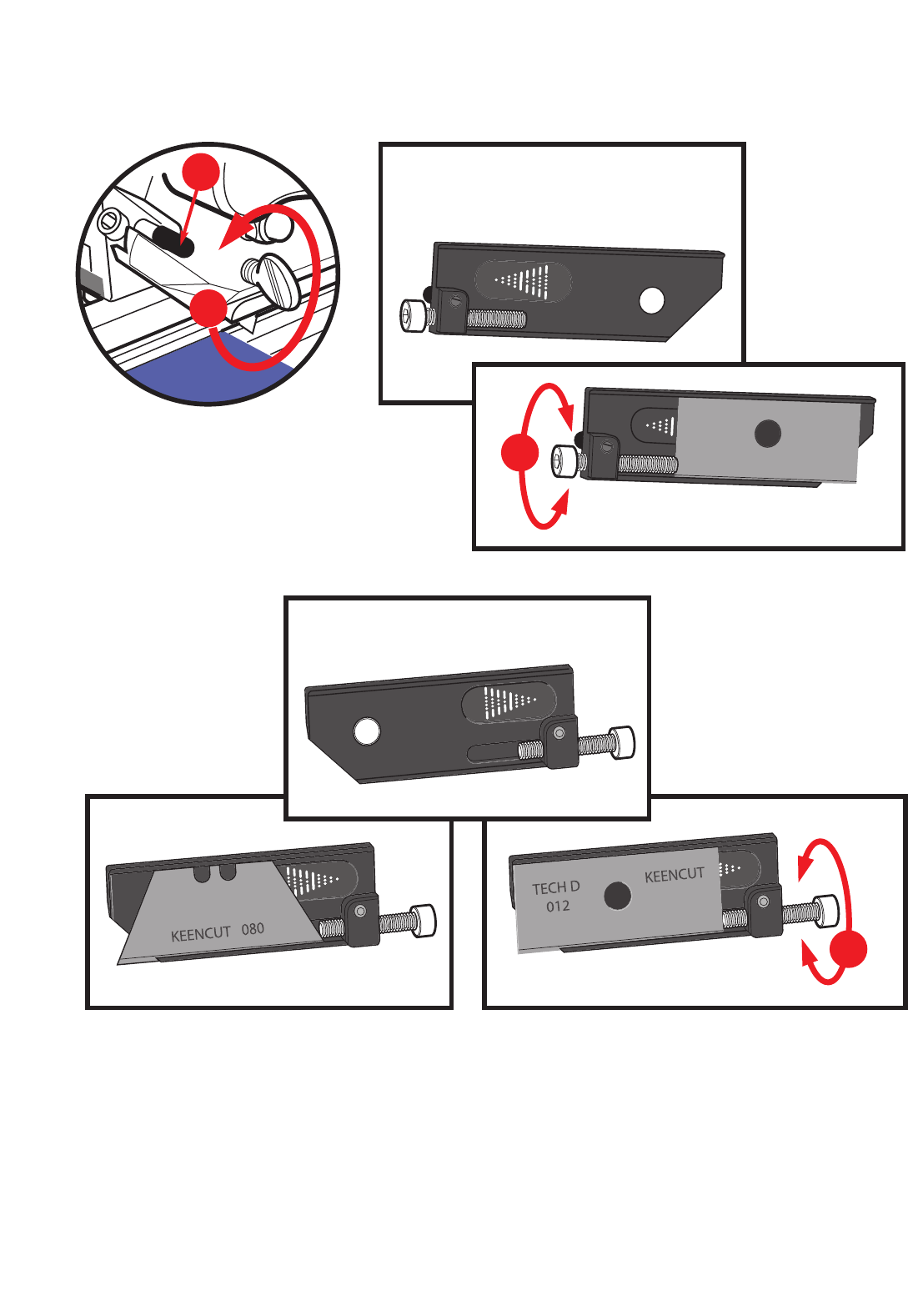

n Both the bevel and vertical blade holders are fitted with Blade Cartridges, to release the cartridge from either of the
blade holders slacken the blade clamping screw (B) and pull the cartridge out, gripping the black plastic pin (A).
The blade is held onto the cartridge by a strong magnet, place the blade between the two raised edges and slide it
so the back edge of the blade touches the depth adjustment screw. To adjust the blade depth turn the adjustment
screw (C) clockwise to extend the blade length and counter-clockwise to reduce it. Always check that the blade is
properly located in the cartridge before loading it into the blade holder.
Each cartridge has a different coloured label to help with identification and calibration if pre-set to suit different
thicknesses of board. A spare bevel blade cartridge is supplied with the machine and additional ones are available
from your Keencut distributor.
n Further instruction on blade depth adjustment is given in later sections.
The blade cartridges
4.1 Operation 4.1
BEVEL BLADE HOLDER
VERTICAL BLADE HOLDER
A
B
C
C
