Product Manual

Cutting Unequal Margins
n UNEQUAL MARGINS - Cutting a Mat with UNEQUAL MARGINS, for example 3,3,3 & 4.
Mark the back of the Mat with margin widths on each of the four edges as shown.
Place the Mat under the Cutterbar.
1 Set the Matguide Limit Stop (blue) to the size shown on the left hand edge of the Mat (to 3 in this case).
Set the Start of Cut Limit Stop (green) to the size shown on the top of the Mat (to 3 in this case).
Set the End of Cut Limit Stop (red) to the size shown on the bottom of the Mat (to 4 in this case).
Make the first cut - turn the mat 90 degrees counter-clock wise .
2 Set red stop to 3
Make a second cut - Turn the mat 90 degrees counter-clock wise.
3 Set green stop to 4
Make a third cut - Turn the mat 90 degrees counter-clock wise.
4 Set green stop to 3
Set blue stop to 4
Make the last cut.
Refer to ‘Additional Matguide fittings’ when cutting large quantities of Unequal Margin mats.

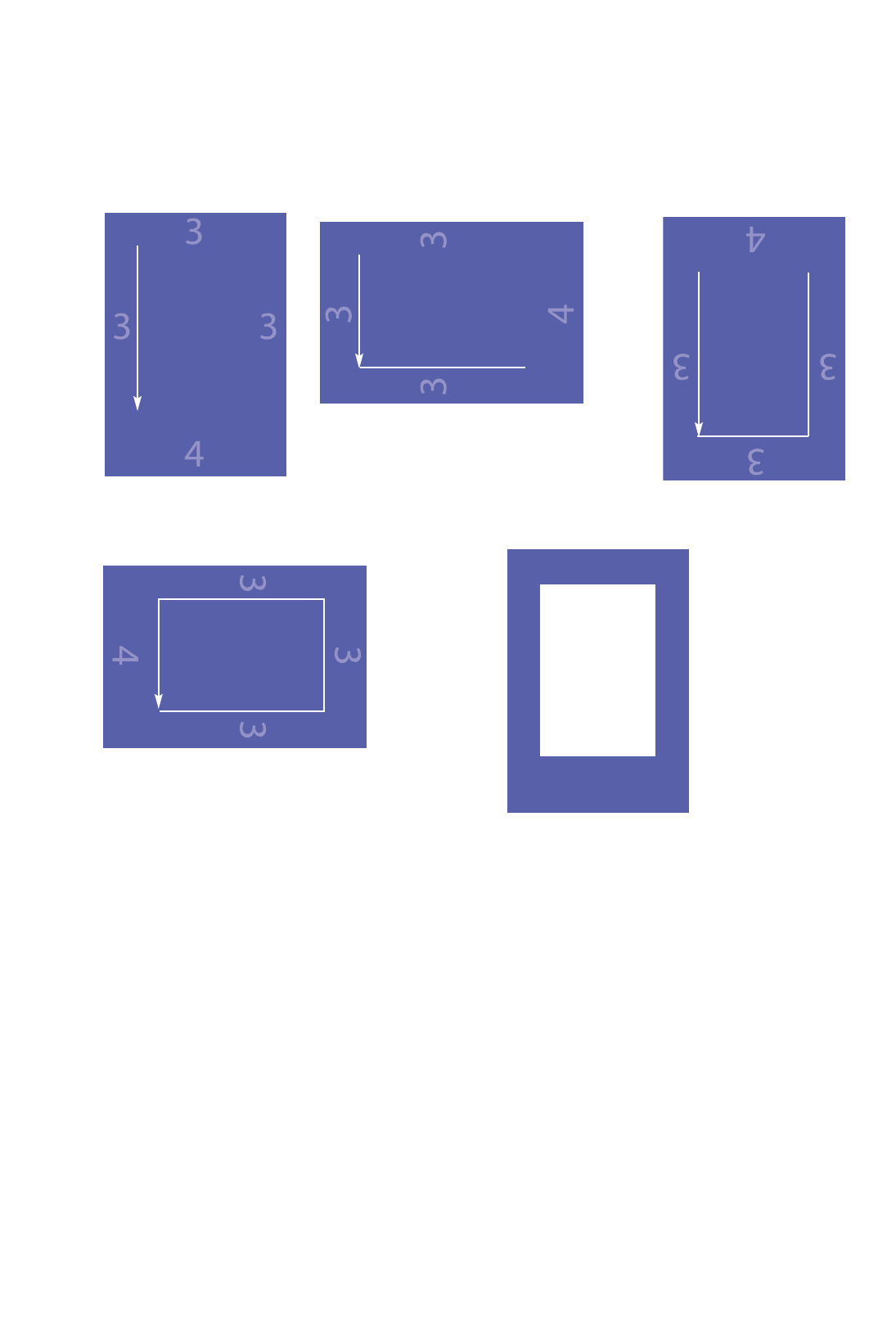

1 2 3
4
à
1st Cut
à
2nd Cut
à
3rd Cut
NOTE: Continue changing the
Limit Stops befor
e making each cut.
6.1 Cutting techinques 6.1
à
4th Cut
