Product Manual

You will
need
3mm
The Alignment of the Matguide T-Bar
n THE ALIGNMENT OF THE MATGUIDE T-Bar with the Cutterbar is checked using two identical coins.

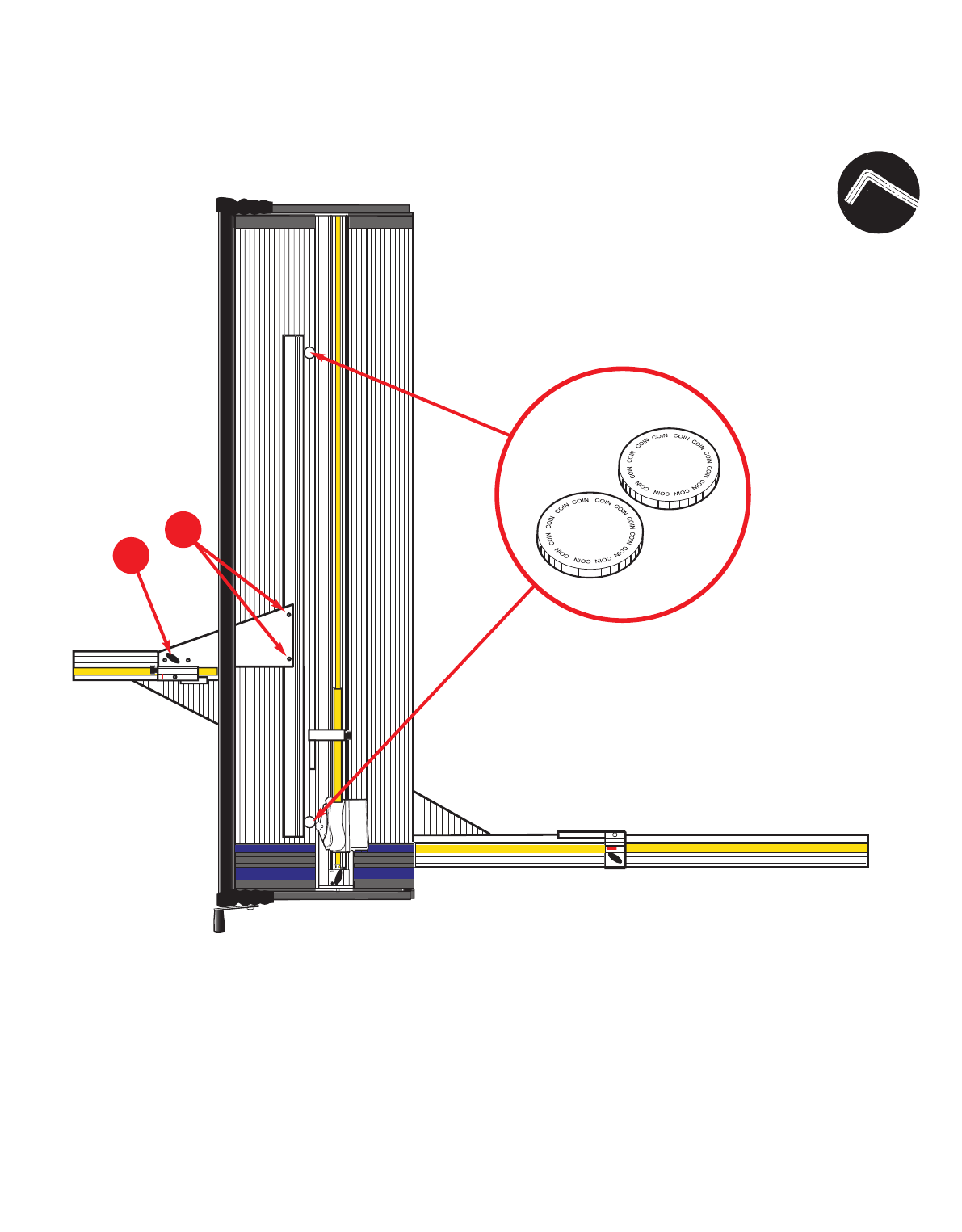

1 Place the coins as shown, one near the top of the Matguide T-Bar and the other near the bottom.
Move the Matguide T-Bar across to touch both coins and clamp the wingbolt (C).
If both coins do not touch the Matguide T
-Bar loosen the two Alignment Adjustment Screws (A).
Release the wingbolt (C) and move the Matguide T-Bar to the right touching the Matguide T
-Bar on both spacers.
Tighten the wingbolt (C), gently tighten the two Alignment Screws (A), check the coins now contact the
Matguide T
-Bar.
1
5.2 Maintenance 5.2
A
C
