Product Manual

END OF CUT
—
END OF CUT
Move the end of cut
cursor (red) the amount
measured by turning the
adjustment screw in
the - direction to reduce
the cut.
Reset the end of cut (red) limit stop
to 3 (cms/inches)
END OF CUT
Move the end of cut
cursor (red) the amount
measured by turning the
adjustment screw in
the + direction to extend
the cut.
+
à à à à

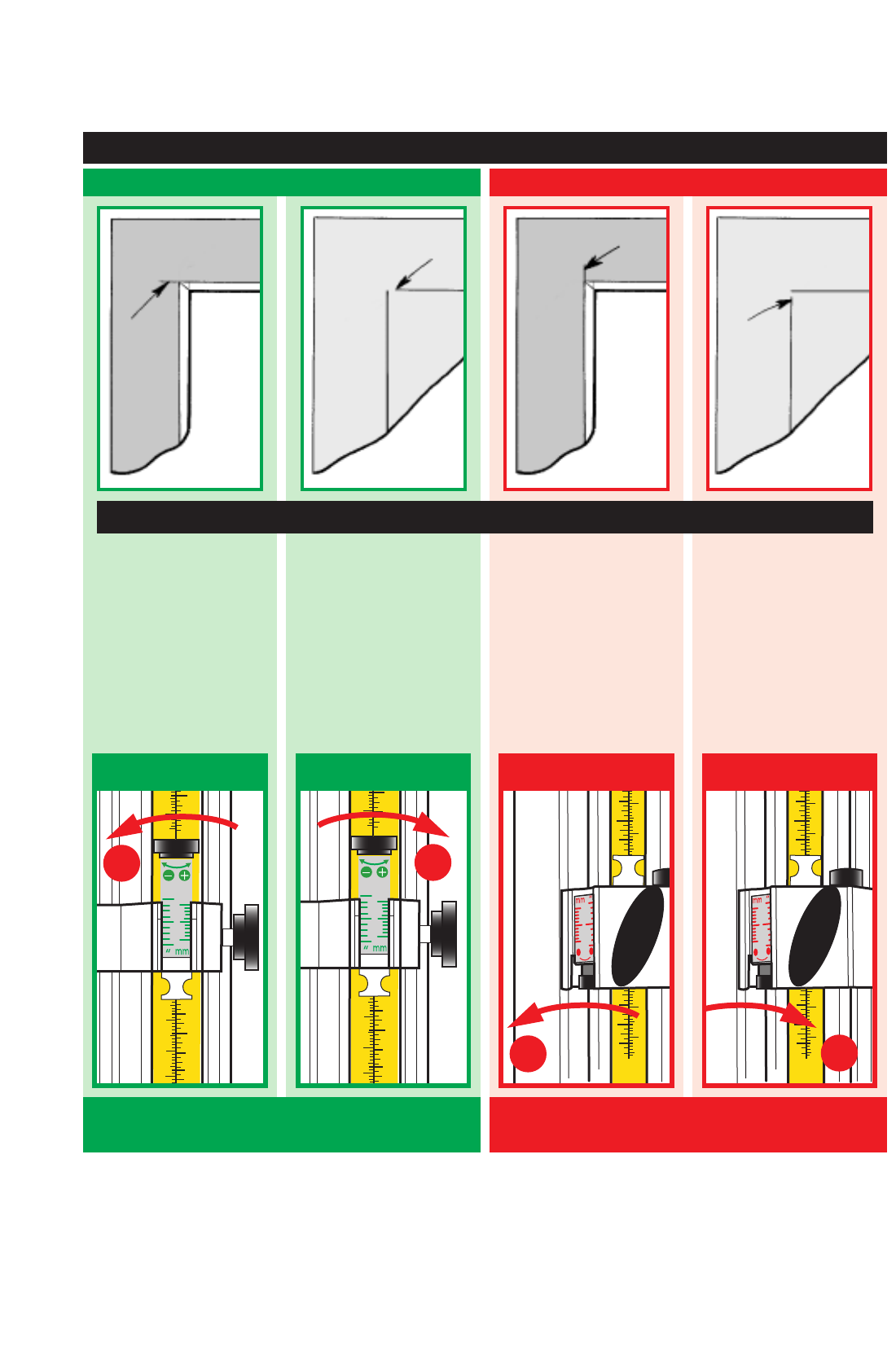

Adjusting the Limit Stops
START OF CUT
4.8 Operation 4.8
—
All the Stops have now been adjusted and set to cut an accurate mat for the thickness of matboard you have selected.
The Matguide Limit Stop should not go out of adjustment when cutting different types and thickness of matboard,
therefore, stage 1 of the adjusting procedure should not normally be needed. Just a check from time to time is all that is
necessary. As a general rule with all the cursors:-
Turn the adjusting screw.
In the + direction to increase the length of the cut
In the - direction to decrease the length of the cut.
START OF CUT
Move the start of cut
cursor (green) the amount
measured by turning the
adjustment screw in
the - direction to reduce
the cut.
Reset the start of cut (green) limit stop
to 3 (cms/inches)
START OF CUT
Move the start of cut
cursor (green) the amount
measured by turning the
adjustment screw in
the + direction to extend
the cut.
+
à à à à
MEASURE/ESTIMATE THE LENGTH OF OVERCUT OR UNDERCUT
START HERE AND PROCEED DOWN EACH COLUMN
