Product Manual

Bevel Cutting

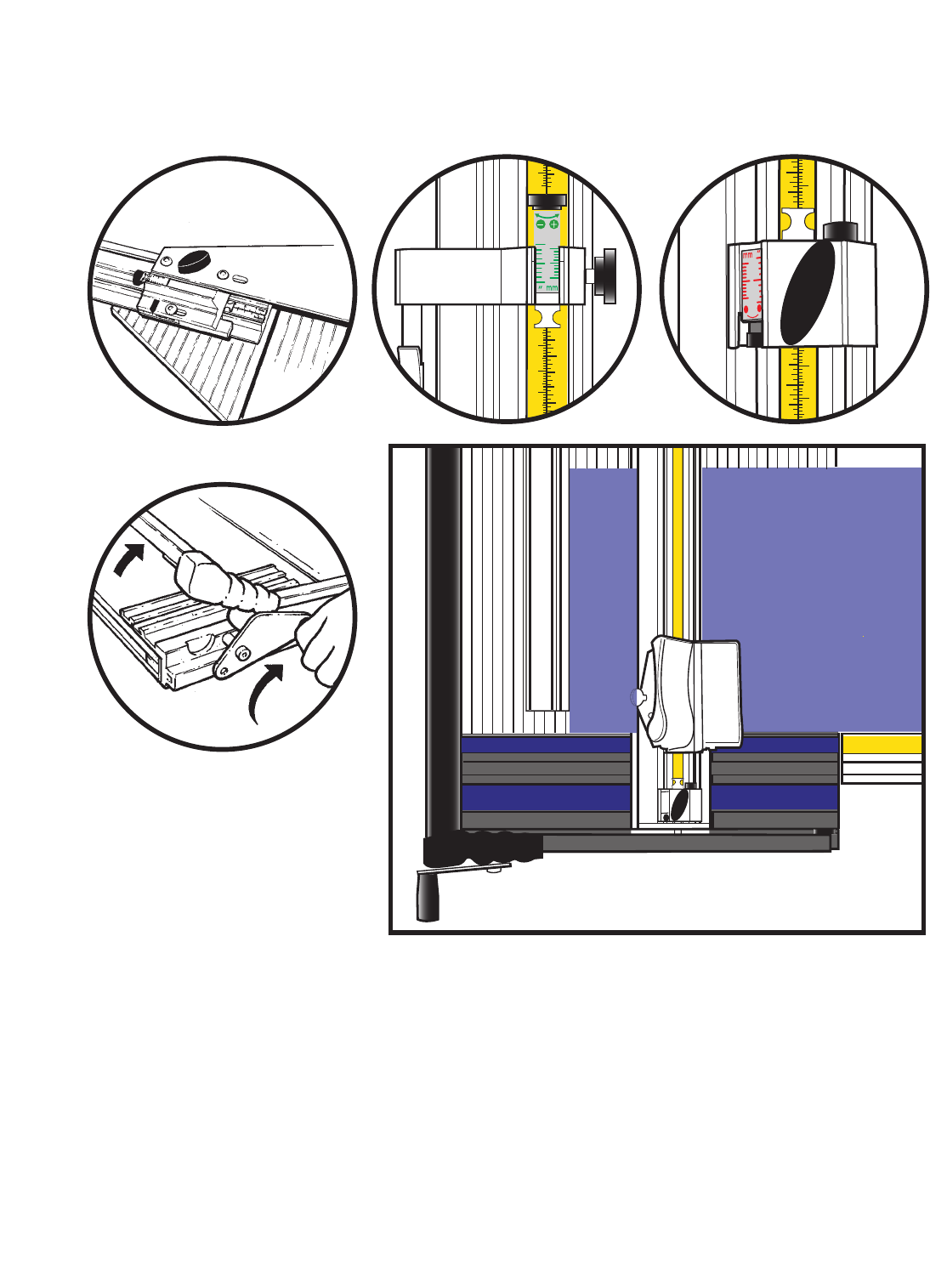

n THE LIMIT STOPS on the Ultimat Futura are colour coded for ease of explanation. Do not alter the cursor set-
tings at this stage, adjust the limit stops by means of the large black wingknob only, we will explain cursor adjustment
later
.
Place your slip mat in position.
1 Lock the Matguide Limit Stop (Blue) on 3 (cms or inches) - this sets the border width.
2 Lock the Start of Cut Limit Stop (Green) on 3 (cms or inches) - this will position the blade in the correct place when
you start cutting
3 Lock the End of Cut Limit Stop (Red) on 3 (cms or inches) - this stops the blade in the correct position.
4 Lift the Cutterbar using the Handle or the Lift and Hold.
5 Place the matboard coloured face down on the slip mat.
Ensure the two Mat edges are aligned against the Matguide and the End Plate.
Lower the Cutterbar to clamp the matboard and and ensure that the matboard is in contact with the Matguide and
321
4
5
à
à
à
4.5 Operation 4.5
