Assembly

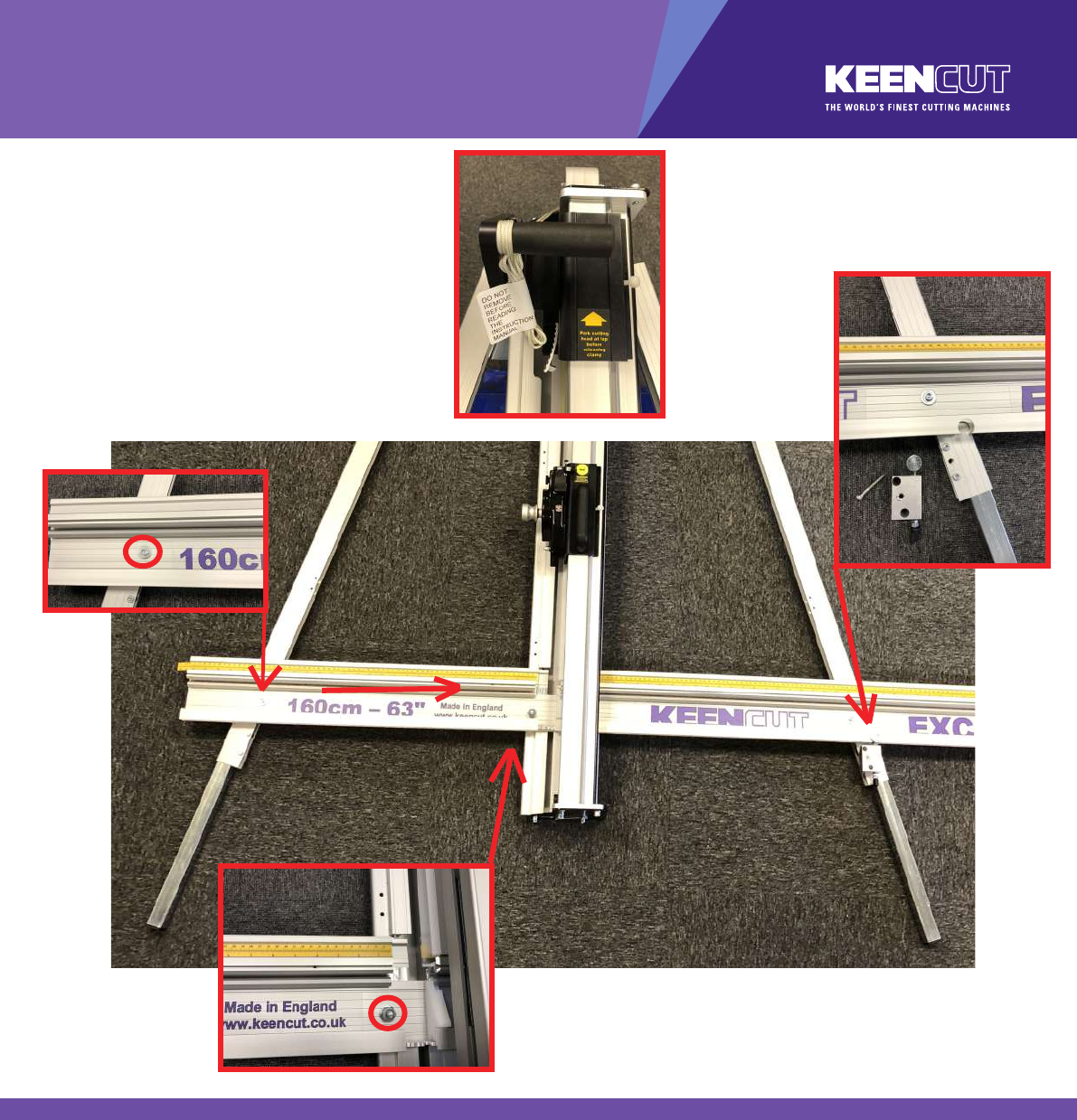

Fitting the squaring arm
1. Slide the squaring arm in from the left hand side through the gap in the main body and align
the corresponding screw holes.
2. Fit the two hexagon bolts from the back of the main body, t the washers and nuts nger tight
only.
3. Fit the scews through the squaring arm into the leg using the 5mm hexagon wrench, do not
tighten fully.
4. Ret the squaring adjuster block by rstly sliding the steel bar into the opening in the squaring
arm, then align the heads of the two screws in the leg to t the top and bottom holes in the
adjuster block. The screws xing the squaring arm to the machine should still be loose and
allow it some movement to help alignment. Insert and tighten the screw in the middle hole.
5. Tighten the two hexagon bolts and screws as in 2 and 3 above.
6. Untie and release the balance weight cord, ensure the clamp is closed by pushing down on
the clamp handle then slide the both cutting heads to the bottom.
❶
❷
❸
❹
❺
