Product Manual

6.5
Operation
Using & changing the scoring blade
The scoring blade is designed to score acylics, Plexiglas and other similiar rigid plastics. Trials
should be carried out on scrap materials rst to ensure you obtain the required standard of cut.
Scoring/breaking technique
Select the scoring blade position on the turret and clamp the material in the machine.
1. Turn the ratchet hold-o󰀨 knob to disengage the ratchet.
2. Clamp the plastic to be scored in the machine, position and depress the cutting head so the
blade touches the plastic at the top.
3. Apply thumb pressure to the cutter and draw the blade down the material in one continuous
motion.
4. Remove the plastic from the machine and snap it by hand.
CAUTION ALWAYS USE HAND AND EYE PROTECTION WHEN SNAPPING PLASTIC

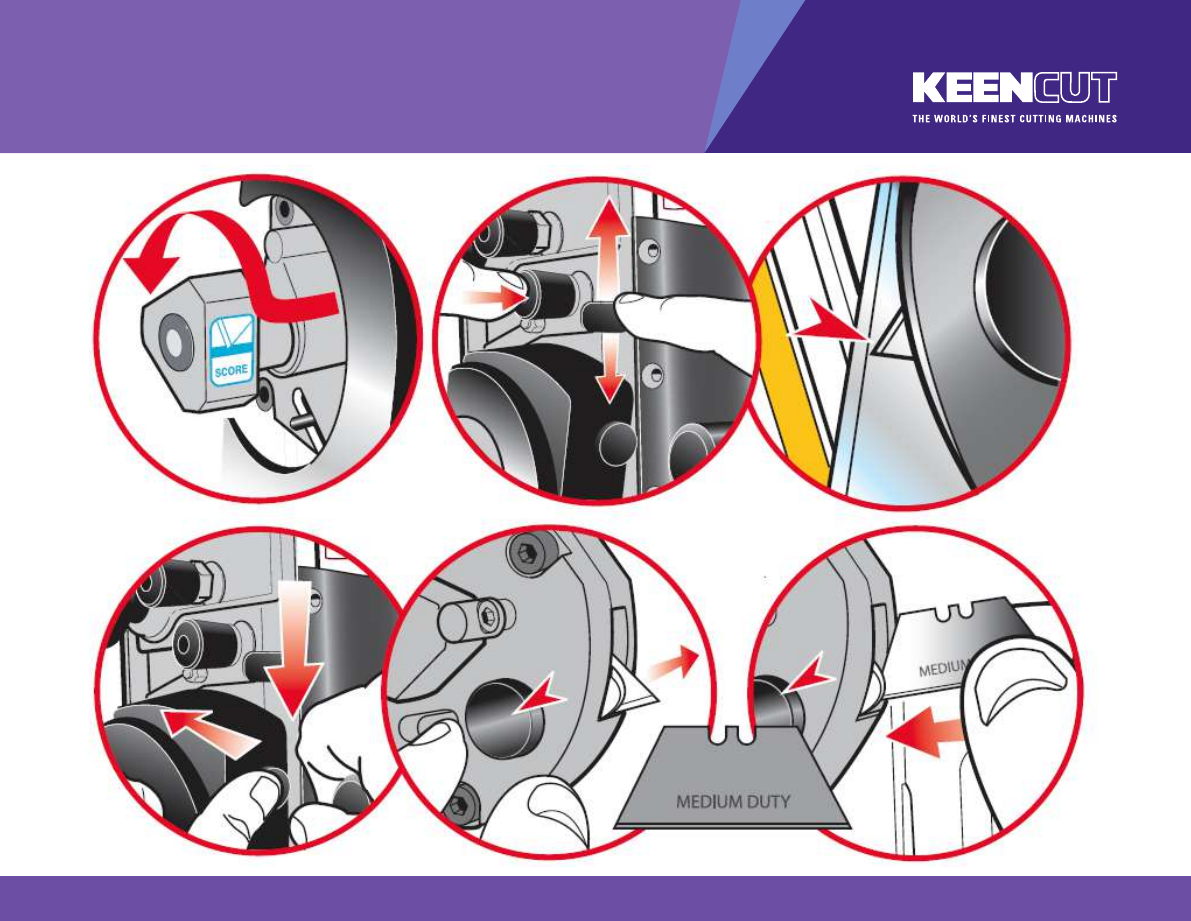

Changing the scoring blade
Unlock and swing down the cutter guard, rotate the turret so the scoring blade is facing outwards.
4. Release the blade clamping screw.
5. Eject the medium duty utility blade using the black ejector pin, replace the blade to the right of
the clamping plate, push the blade in as far as it will go and tighten the blade clamping screw.
Rotate the turret back to the cutting position. Replace the guard ensuring it is locked closed.
Replacement medium utility blades are available from Keencut or your distributor.
❶ ❷
❸
❹
❺
