Using the clamp
The clamping system enables the operator to control the grip pressure by means of an integral
friction brake, that maintains the clamping force at the pressure applied by the operating lever. Soft
materials can be held rmly without sustaining damage and solid materials are held rigidly without
movement. By following the guidelines below it will help you to get the most from the machine.
USE CLAMPING INSTRUCTIONS
Soft materials such as
Foamcore boards, lightweight
card, etc.
Use light to medium pressure. The underside of the clamp grips an
area nearly 4cm (11/2”) wide with a non-marking sponge rubber
and reasonable force can be applied. If in doubt clamp a sample
rst with the good surface facing outwards.
Harder materials such as
PVC foam board, MDF or
composite boards such as
Dibond.
Use medium to heavy pressure.

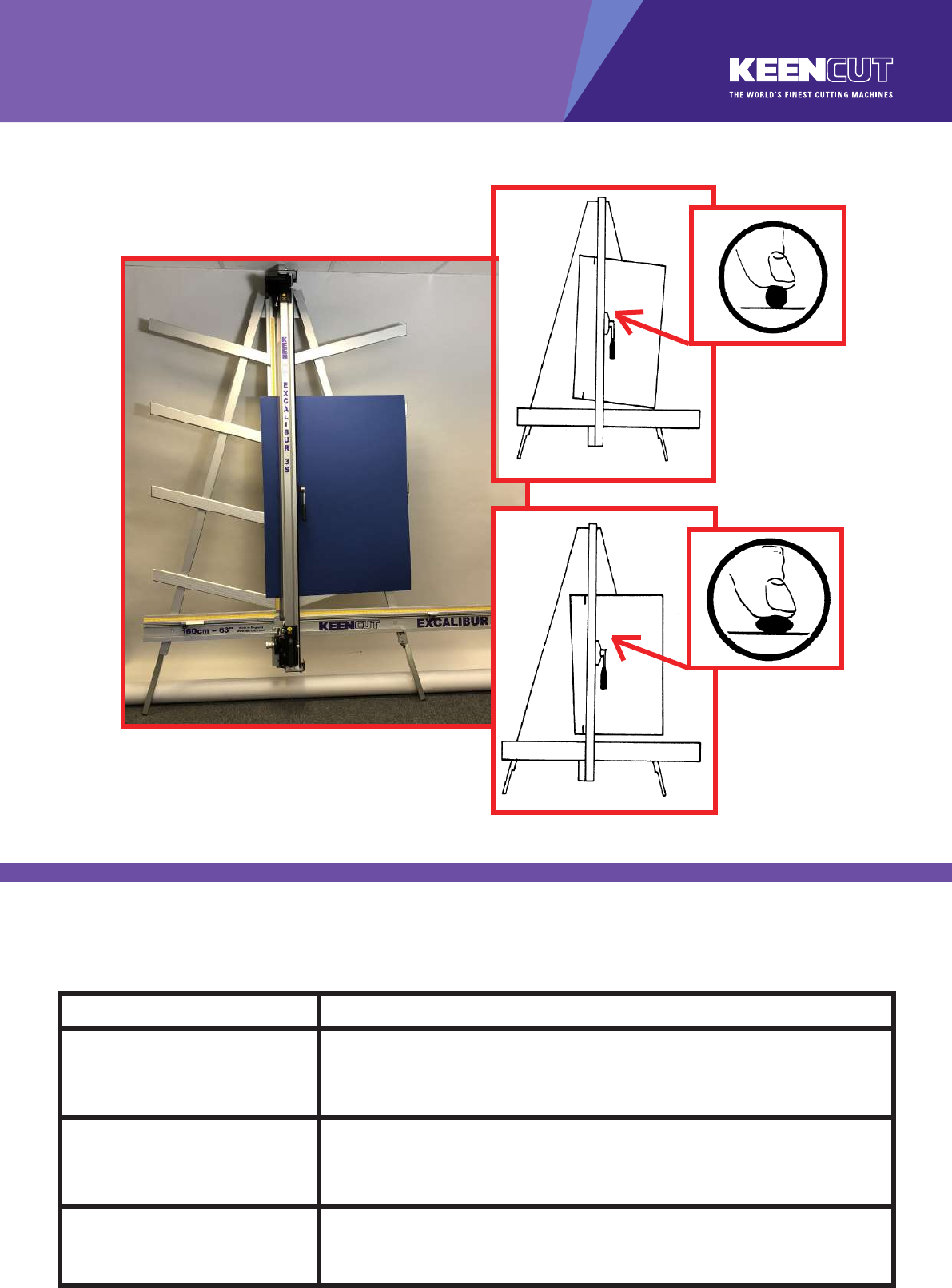

Cropping to trim lines, pencil
marks, etc. (see drawing).
Place material in approximate position under clamp, apply light
clamp pressure to allow the material to be repositioned. Align the
trim marks with the edge of the sightline strip and clamp.
