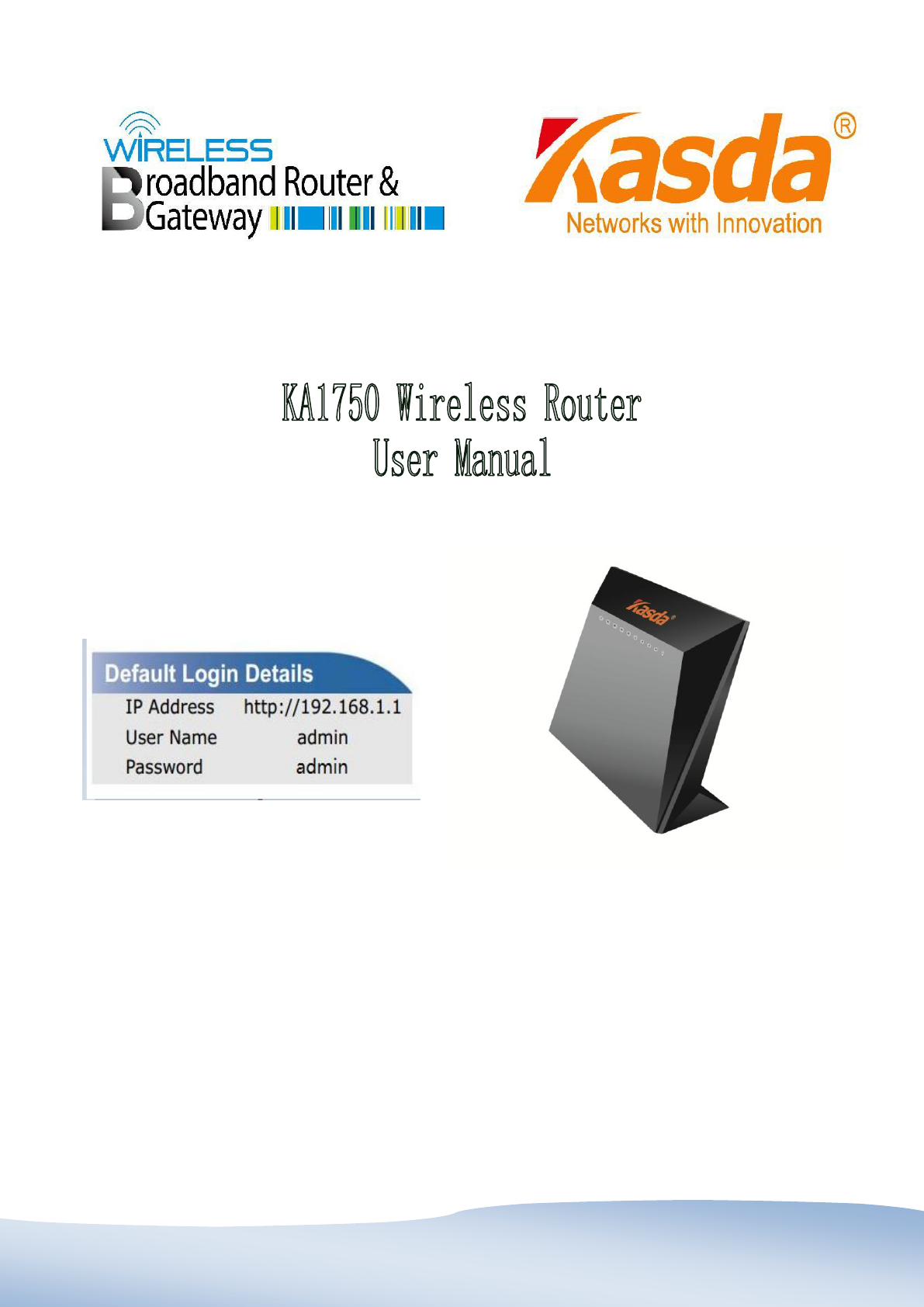

Kasda Digital Technology Co.,Ltd B-31,Tanglang Industry Park,Xili,Nanshan District,Shenzhen,China www.kasda.
KA1750 Wireless Router User Manual NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.
KA1750 Wireless Router User Manual FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
KA1750 Wireless Router User Manual FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
KA1750 Wireless Router User Manual Content 1 INTRODUCTION ...................................................................................................................... 3 1.1 MAIN FEATURES .............................................................................................................. 3 1.1.1 Wireless ............................................................................................................................... 3 1.1.2 Network Protocol and Features ..................
KA1750 Wireless Router 7.2.6 User Manual WDS Setup ......................................................................................................................... 32 7.3 SERVICE – QOS SETUP ................................................................................................. 35 7.4 SECURITY SETUP ......................................................................................................... 36 7.4.1 7.4.2 7.4.3 7.4.4 Firewall setup .......................................
KA1750 Wireless Router User Manual 1 Introduction Thank you for choosing our product. The KA1750 Wireless Router uses Broadcom’s CPE solution that fully complies with IEEE802.11b/g/n/ac standards. It will provide your SOHO with convenient Internet. 1.1 Main Features 1.1.1 Wireless Fully IEEE 802.11b /g /n & IEEE 802.11ac Wireless data rate up to 1750 Mbps Operating in the unlicensed 2.4 GHz &5GHz ISM band Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK, 802.1x compatible. 1.1.
KA1750 Wireless Router User Manual Stateful Packet Inspection (SPI) Denial of Service Prevention (DoS) DMZ 1.1.4 Management Support Web Based GUI Upgrade or update via FTP/HTTP Command Line Interface via Telnet Diagnostic Test Firmware upgrade-able for future feature enhancement 1.1.5 Operating System Support WINDOWS 98/SE/ME/2000/XP/VISTA/7 Macintosh LINUX 1.1.6 Environmental Operating humidity: 10%-90% non-condensing 1.
KA1750 Wireless Router User Manual PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 TCP/IP protocol on each PC 1.4 Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari Factory Defaults The device is configured with the following factory defaults: 1.5 IP Address: 192.168.1.1 Subnet Mask: 255.255.255.0 Warnings and Cautions never use the product near water.
KA1750 Wireless Router 2 User Manual Hardware Description Front Panel LED Color Function Blue Off: Power Not Supplied On: Power Supplied Blue On: The WAN port has detected a link with an attached device Blinking: Data is being transmitted or received by the WAN port Off: No WAN link via the WAN port On: LAN link established and active via LAN port Blue Blue Blinking: ADSL data activity occurs Off: No LAN link via LAN port On: The 2.
KA1750 Wireless Router User Manual Rear panel Port WAN ETH1,2,3,4 RESET WPS ON/OFF PWR USB2.0/3.
KA1750 Wireless Router User Manual 3 Hardware Installation This chapter shows you how to connect Router. Meanwhile, it introduces the appropriate environment for the Router and installation instructions. 1. Using an Ethernet Cable to connect the WAN port of the ROUTER to a cable or DSL modem. 2. Using an Ethernet Cable to connect the LAN port of the ROUTER to your LAN or a PC with network card installed. 3.
KA1750 Wireless Router 4 User Manual PC Configuration Guide 4.1 Local PC Configuration in Windows 95, 98, ME, XP,7 1. In the Windows task bar, click the “Start” button, point to “Settings”, and then click “Control Panel”. 2. Double-click the “Network” icon. 3. On the “Configuration” tab, select the TCP/IP network associated with your network card and then click “Properties”. 4. In the “TCP/IP Properties” dialog box, click the “IP Address” tab. Set the IP address as 192.168.1.
KA1750 Wireless Router 5 User Manual Quick Setup of the Router In order to use the web-based management software, it will be necessary to use a computer that occupies the same subnet as the Router. The simplest way to do this for many users will be to use DHCP server that is enabled by default on the Router.please make sure the wan connection is ok. Internet Connection Setup Wizard will guide you through a step-by-step process to configure your router and connect to the Internet.
KA1750 Wireless Router User Manual (3) The WAN connection type will appear,the quick setup supports two popular mode PPPoE, DHCP(Dynamic IP) to connect to the internet,If the conncetion type is PPPoE , enter the username and password provided by your ISP.If the connection type is dynamic IP,the router will obtain an IP automatically from you ISP. Select a wifi interface.2.4GHz or 5GHz. please enter SSID and Password for wireless network Then click“next”.
KA1750 Wireless Router User Manual (4)The Internet Connection Setup Wizard is complete. Click the Apply button to save and apply your settings. After the configuration above， Now you can surf the Internet.
KA1750 Wireless Router 6 User Manual Web-based basic Management Guide This chapter will introduce how to configure your router in detail，the home page is as shown. From home page, you can find basic & Advanced Setup option on the top router home configuration page. Basic menu has two options ,one is home and the other is administration .Below the home menu，there are two options: home & parent control. 6.1 home page basic setting 6.1.1 Network (WANSettings) KA1750 supports three types WAN connection.
KA1750 Wireless Router User Manual DHCP connection type If your ISP provides the DHCP service, please choose Dynamic IP type, and the Router will automatically get IP parameters including IP address, Subnet Mask, Default Gateway, from your ISP. You can see the page as follows ., Click the Save Settings button to save your settings. Static IP If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway and DNS setting, select Static IP. The Static IP settings page will appear.
KA1750 Wireless Router User Manual IP Address: Enter the IP address in dotted-decimal notation provided by your ISP. Subnet Mask: Enter the subnet Mask in dotted-decimal notation provided by your ISP, usually is 255.255.255.0. Default Gateway:(Optional) Enter the dotted-decimal notation provided by your ISP. gateway IP ddress in DNS1/DNS2(Optional) /DNS3(Optional) : Enter one or two DNS addresses in dotted-decimal notation provided by your ISP. Click the Save button to save your settings.
KA1750 Wireless Router User Manual Local IP Address:Enter the IP address of your Router or reset it in dotted-decimal notation (factory default: 192.168.1.1). DHCP Server:Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must configure the computer manually. Start IP Address:Specify an IP address for the DHCP Server to start with when assigning IP addresses. 192.168.1.100 is the default start address.
KA1750 Wireless Router User Manual 6.1.3 Wireless Settings Click icon,you can configure the basic settings for the wireless network of 2.4GHz or 5GHz on this page. Wireless interface: please select 2.4GHz or 5GHz wireless depending on your application. Wireless enable :Enable or disable the Wirless function here. Network Name（SSID）: Also called the SSID. Enter a value of up to 32 characters. The same name must be assigned to all wireless devices in your network .
KA1750 Wireless Router User Manual 1. In the [Service Name] column, select the client whose network usage you want to control. You may also key in the clients MAC address in the [Local MAC] column. 2. In the [Add / Delete] column, click the Edit icon. 3. Set up allowed time limits in the [Time Settings] map. Drag and drop to desired day/time. 6.3 Administration 6.3.1 Time setting This page allows you to set the time manually or to configure automatic time synchronization.
KA1750 Wireless Router User Manual 6.3.2 Password: It is strongly recommended that you change the factory default user name and password of the Router. All users who try to access the Router's web-based utility will be prompted for the Router's user name and password. 6.3.3 Backup/restore/reset Click the Backup button to save all configuration settings to your local computer as a file. Click the Browse button to find the configuration file which you want to restore.
KA1750 Wireless Router User Manual Click the Reset Defaults button to reset all configuration settings to their default values. The default User Name: admin The default Password: admin The default Subnet Mask: 255.255.255.0 Note: All changed settings will be lost when defaults are restored. 6.3.4 Firmware update Click Browse/Choose and select the firmware upgrade file. Then click Start Upgrade. Warning: Upgrading firmware may take a few minutes; please don't turn off the power or press the reset button.
KA1750 Wireless Router User Manual 7 Web-based Advance Management Guide This chapter will introduce how to configure your router advanced，behind the advanced menu,there are six options :status，setup，wireless，service，security， administration. The Status page displays the Router's current status and wan configuration. 7.1 Setup Click advanced menu，and then click setup，you can set up WAN, LAN, IPV6, Advanced Routing 7.1.
KA1750 Wireless Router User Manual WAN Connection Type (1) Automatic Configuration – DHCP If you connect using a dynamic IP address or cable modem, keep the default: Automatic Configuration - DHCP. (2) Static IP . To use a fixed IP address to connect to the Internet, select Static IP. Internet IP Address – Enter the IP address provided by your ISP. Subnet Mask – Enter the subnet mask provided by your ISP. Default Gateway – Enter the gateway IP address provided by your ISP.
KA1750 Wireless Router User Manual Service Name (Optional) – Enter the Service Name, if required by your ISP. Connect on Demand: Max Idle Time – You can configure the router to disconnect your Internet connection after a specified period of inactivity (Max Idle Time). If your Internet connection has been terminated due to inactivity, Connect on Demand enables the router to automatically re-establish your connection as soon as you attempt to access the Internet again.
KA1750 Wireless Router User Manual To clone your network adapter's MAC address onto the router, select Enable and enter your adapter's MAC address in the Clone WAN MAC field or click Get My PC's MAC to fill in the MAC address of your PC you are using. Then save your changes by clicking on the Apply button. 7.1.2 LAN setup Router IP Local IP Address / Subnet Mask: This is the router IP Address and Subnet Mask as seen on the internal LAN. The default value is 192.168.1.1 for IP Address and 255.255.255.
KA1750 Wireless Router User Manual 7.1.3 IPV6 WAN Set IPv6 WAN Network Prefix – Sets the IPv6 Network Prefix for WAN. LAN Set IPv6 LAN Network Prefix – Sets the IPv6 Network Prefix for LAN. IPv6 DNS Server – Sets the IP addresses of the DNS servers to use for resolving host names. IPv6 6to4 subnet ID – Sets the 6to4 subnet ID(0-65535).
KA1750 Wireless Router User Manual 7.1.4 Advanced Routing Setup Static Routing A static route is a pre-determined pathway that network information must travel to reach a specific host or network. To set up a static route between the router and another network: 1.Select a number from the Static Routing drop-down list. 2.Enter the following data: • Destination IP Address – The Destination IP Address is the address of the network or host to which you want to assign a static route.
KA1750 Wireless Router 7.2 User Manual Wireless Setup 7.2.1 Wireless Basic Settings • Network Mode – If you have Wireless-G and 802.11b devices in your network, then keep the default setting, Mixed. If you have only Wireless-G devices, select G-Only. If you would like to limit your network to only 802.11b devices, then select B-Only. If you want to disable wireless networking, select Disable. Note that B-Only mode is not supported under WDS.
KA1750 Wireless Router User Manual 7.2.2 Guest Access Use the Guest Access feature to provide guests visiting your home with Internet access only. The guest network is a wireless network separate from your local network. • Allow Guest Access – To allow Internet access through a guest network, select yes. • Guest Network Name – The name of the guest network is displayed. • Total Guests Allowed – Select the number of guests you want to allow on your guest network.
KA1750 Wireless Router User Manual 7.2.3 Security You can select one of the following security options: • Disabled – The wireless security function can be enabled or disabled. If disabled, the wireless stations will be able to connect the Router without encryption. It is recommended strongly that you choose one of following options to enable security. • WEP – Select 802.11 WEP security. • WPA/WPA2 - Personal – Select WPA based on pre-shared passphrase.
KA1750 Wireless Router User Manual • RADIUS Server – Enter the IP address of the RADIUS server. • RADIUS Port – Enter the port number of the RADIUS server. The default is1812. • Shared Key – Enter the key shared between the Router and the server. WPA/WPA2 - Personal(WPA-PSK/WPA2-PSK) Version - You can select one of following versions, • WPA-PSK – Pre-shared key of WPA. • WPA2-PSK – Pre-shared key of WPA2. • PSK Password –You can enter ASCII or Hexadecimal characters.
KA1750 Wireless Router User Manual • Push Button – This button's function is same to the physical button on the router. • Client's PIN – If the client supports the connection way by entering its PIN.Enter the Client's PIN.Click Register button to connect the client. • Router's PIN – The current value of the Router's PIN displayed here. 7.2.
KA1750 Wireless Router User Manual 7.2.6 WDS Setup WDS (Wireless Distribution System) is a Wireless Access Point mode that enables wireless bridging in which WDS APs communicate only with each other only (without allowing for wireless clients or stations to access them), and/or wireless repeating in which APs communicate both with each other and with wireless stations (at the expense of half the throughput). • Mode – Selecting Wireless Bridge disables access point functionality.
KA1750 Wireless Router User Manual 1. Make these 2 routers same channel ( not Auto ) and security mode and passphrase in Wireless – Basic Settings & wireless security. 2. ROUTER1 can use default IP address 192.168.1.1, and ROUTER2 should change the IP address to other IP address but in same segment like 192.168.1.2. And user should disable ROUTER2’s DHCP function in Setup– LAN page. 3. ROUTER 1 : Go to advance=>wireless=>WDS page, Select Access Point in Mode.
KA1750 Wireless Router User Manual 4. ROUTER 2 : Go to Setup=>WLAN=>WDS page, Select Wireless Bridge in Mode. Add ROUTER 1’s wireless interface MAC address (BSSID) to ROUTER 2’s AP MAC Address. And then Click save. If you can access the Internet from ROUTER 1, then you can set the PC which connect with ROUTER 2 as this: IP Address: 192.168.1.x Subnet mask: 255.255.255.0 Gateway: 192.168.1.1 DNS: 192.168.1.1 So you can access the Internet from ROUTER 2.
KA1750 Wireless Router 7.3 Service – QoS User Manual Setup QoS (Quality of Service) QoS assigns different levels of priority to specific types of network traffic, so it helps to ensure optimal performance for demanding, real-time applications, such as online gaming, VoIP calls, and video streaming. Wireless No Acknowledgement – No Acknowledgement – If you want the Router to re-send data if an error occurs, keep the default, Disabled.
KA1750 Wireless Router User Manual Upstream Bandwidth This option sets the maximum upstream bandwidth of your Internet connection. To allow the Router to detect the maximum, keep the default, Auto. To specify the maximum, select Manual. Then enter the appropriate bandwidth and select Kbps or Mbps. Category Select the appropriate category. Go to the instructions for your selection. • Applications – Select the appropriate application.
KA1750 Wireless Router User Manual • Filter Multicast – Prevents multicast packets from reaching the LAN. • Filter Internet NAT Redirection for IPv4 Internet Only – Prevents hosts on LAN from using WAN address of router to contact servers on the LAN (which have been configured using port redirection). • Filter IDENT (Port 113) – Prevents WAN access to port 113. Web Filter • Proxy – Blocks HTTP requests containing the "Host:" string. • Java – Blocks HTTP requests containing a URL ending in ".js" or ".
KA1750 Wireless Router User Manual 7.4.4 DoS A "denial-of-service" (DoS) attack is characterized by an explicit attempt by hackers to prevent legitimate users of a service from using that service. • Enable DoS Prevention – Enable or disable DoS Prevention. And choose what you want.
KA1750 Wireless Router User Manual Appendix: Frequent Asked Questions Q: None of the LEDs are on when user power on the router? A: Please make sure what user use is the power adaptor attached with the router package， and check the connection between the AC power and router. Q: LAN LED does not turn on after connect Ethernet cable? A: Please make sure Ethernet cable is connected hub/PC and router correctly. Then please make sure the PC/hub have been power on.
KA1750 Wireless Router User Manual Q: PC cannot browse Internet web page? A: Please make sure DNS server appointed to the PC is correct. User can use ping application program to test whether the PC can connect to the DNS server of the ADSL operator.
