Technical specifications
Electrical connection
Voltage V 220...240
Current type 1~
Frequency Hz 50
Connected load kW 0,6
Type of protection IPX4
FI safety switch delta I in A 0,03
Compressed air
Nominal width of hose Inch 1
Pressure supply (max.) MPa (bar) 1,6 (16)
Pressure supply (min.) MPa (bar) 0,2 (2)
Consumption of compressed air (max.) m
3
/min 11
Quality of compressed air min. Class 3, ISO 8573-1
Performance data
Jet pressure (max.) MPa (bar) 1,6 (16)
Diameter of dry ice pellets mm 3
Dry ice consumption kg/h 30...100
Dimensions
Contents of dry ice container kg 35
Width mm 720
Depth mm 850
Height mm 1100
Weight kg 140
Weight jet equipment (spray agent hose, spray gun, nozzle case) kg 12
Tyre pressure (max.) MPa (bar) 0,2 (2)
Recoil force of hand spray gun (max.) N 132
Values determined as per EN 60355-2-79
Hand-arm vibration value
Jet pistol m/s
2
<2,5
Hose for spraying agent m/s
2
<2,5
Uncertainty K m/s
2
1
Sound pressure level L
pA
dB(A) 113
Uncertainty K
pA
dB(A) 3
Sound power level L
WA
+ Uncertainty K
WA
dB(A) 128

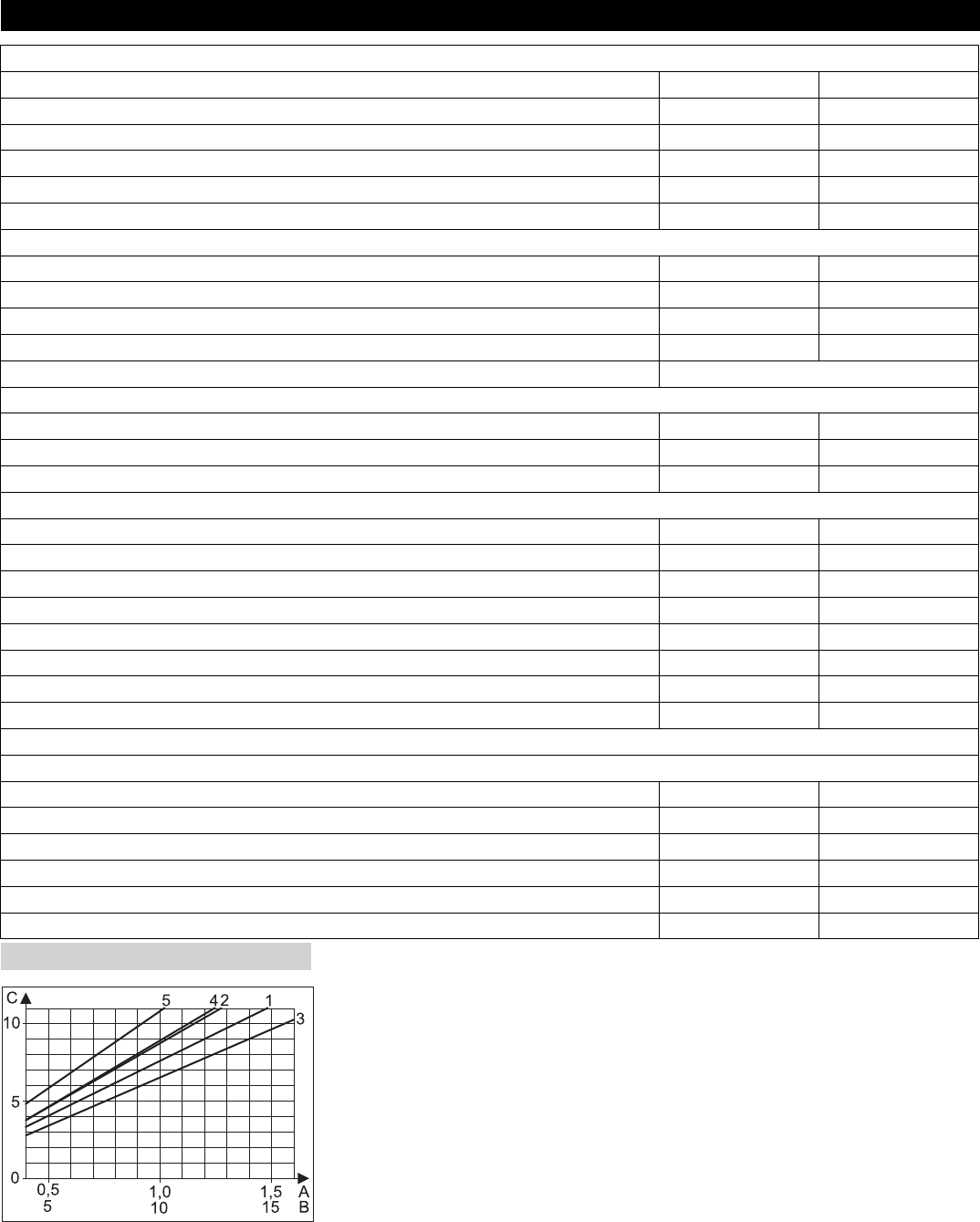

Compressed air demand
