Technical Manual | WAVE Transceiver with precise localization capability MTX-9450 and TRX-9450 Page 21 of 26
1000005502-THb-03
Line Connection Cable (Ethernet + Power Supply)
Part number Cable length [m]
34017450050 16 feet (5m)
34017450070 23 feet (7m)
34017450100 33 feet (10m)
34017450150 49 feet (15m)
Other lengths are available on request.
Table 11
Available cable lengths
Line Connection Cable
Figure 8
Line Connection Cable
(Ethernet + Power Supply)
Figure 9

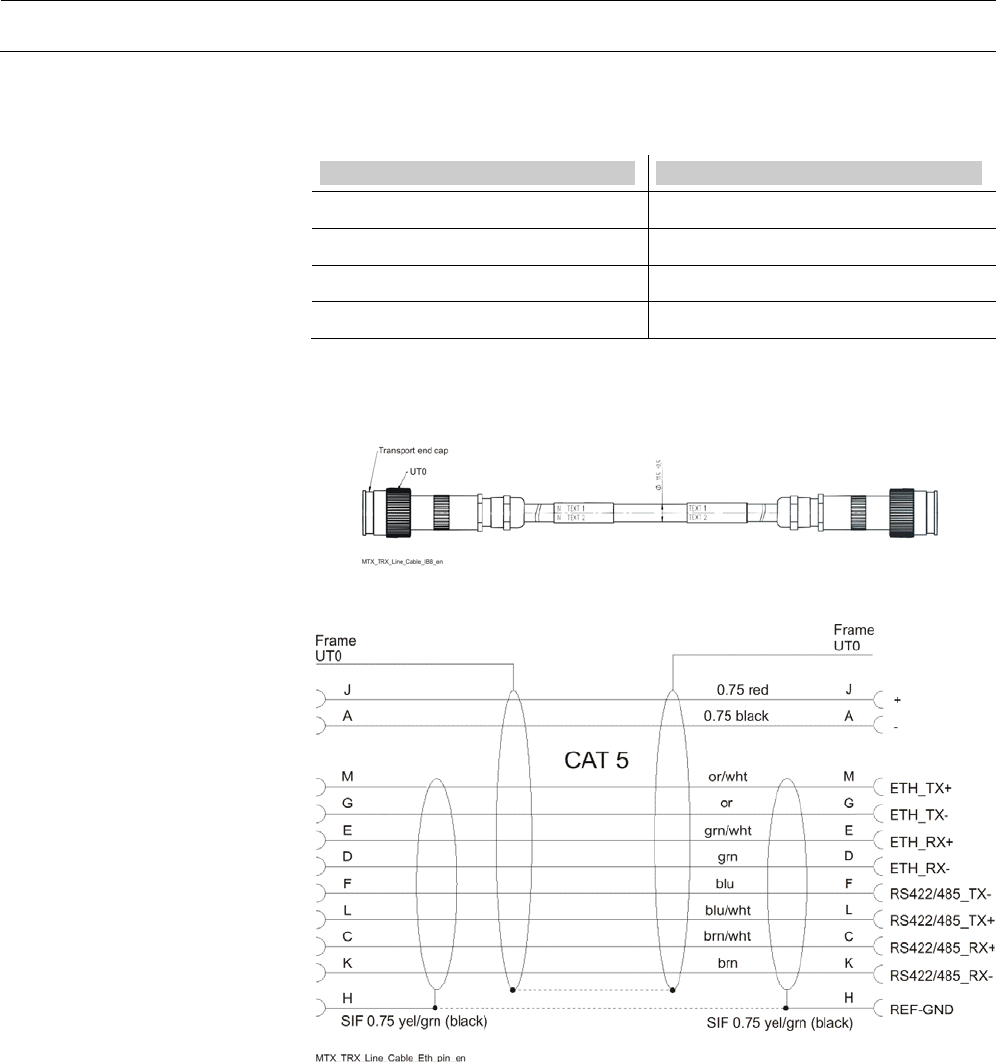

Connector pin assignment
Line Connection Cable
(Ethernet + Power Supply)
TRX
IN
MTX
OUT
