Page 20 of 26 Technical Manual | WAVE Transceiver with precise localization capability MTX-9450 and TRX-9450
1000005502-THb-02

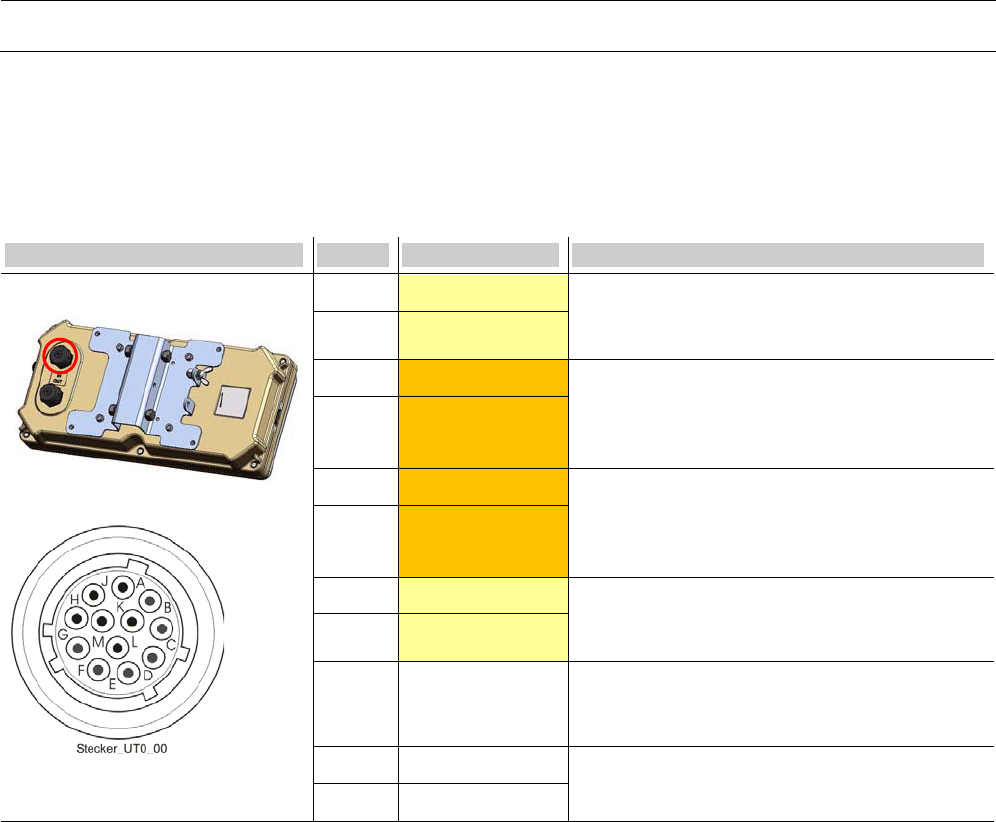

Signals at connector “IN” of MTX-9450/TRX-9450
Connector Pin Signal Description
MTX-9450/TRX-9450 “IN”
UT0 Connector male
M
ETH_TX+ Ethernet:
Positive / negative line, isolated, Transmit-line
from transceiver to TRC-1040-E.
G ETH_TX-
C RS422/485_RX+ Service:
Receive-line to transceiver.
RS422/485:
Positive / negative line, 5Vp-p,
K RS422/485_RX-
L RS422/485_TX+ Service:
Transmit-line from transceiver, isolated.
RS422/485:
Positive / negative line, 5Vp-p.
F RS422/485_TX-
E ETH_RX+ Ethernet:
Positive / negative line, isolated, Receive-line
from TRC-1040-E to transceiver.
D ETH_RX-
H REF-GND REF-GND, reference ground for RS485:
Connected with internal galvanic isolated GND
via choke.
J + Power line:
24V-48V DC, input
A -
Table 10
Signals at connector “IN” of
MTX-9450/TRX-9450
