13. Select the desired visual feedback to control OBU LED flashing when a transaction occurs.
Configuring Toll charges
The Reader can deduct toll charges from a toll/balance OBU based on a number of parameters. BAT 1
tolling deducts charges based on the vehicle type and the lane the vehicle is in when it passes through
the toll plaza. BAT 2 tolling deducts charges based on distance by determining the toll plazas the
vehicle entered and exited on the highway.
Prerequisites: You must have Advanced User permissions.
BAT 1 tolling (deducting charges based on lane and vehicle type)
1. Select the Configuration link on the left side panel of the screen.
2. Select the Toll/Rate Balance tab

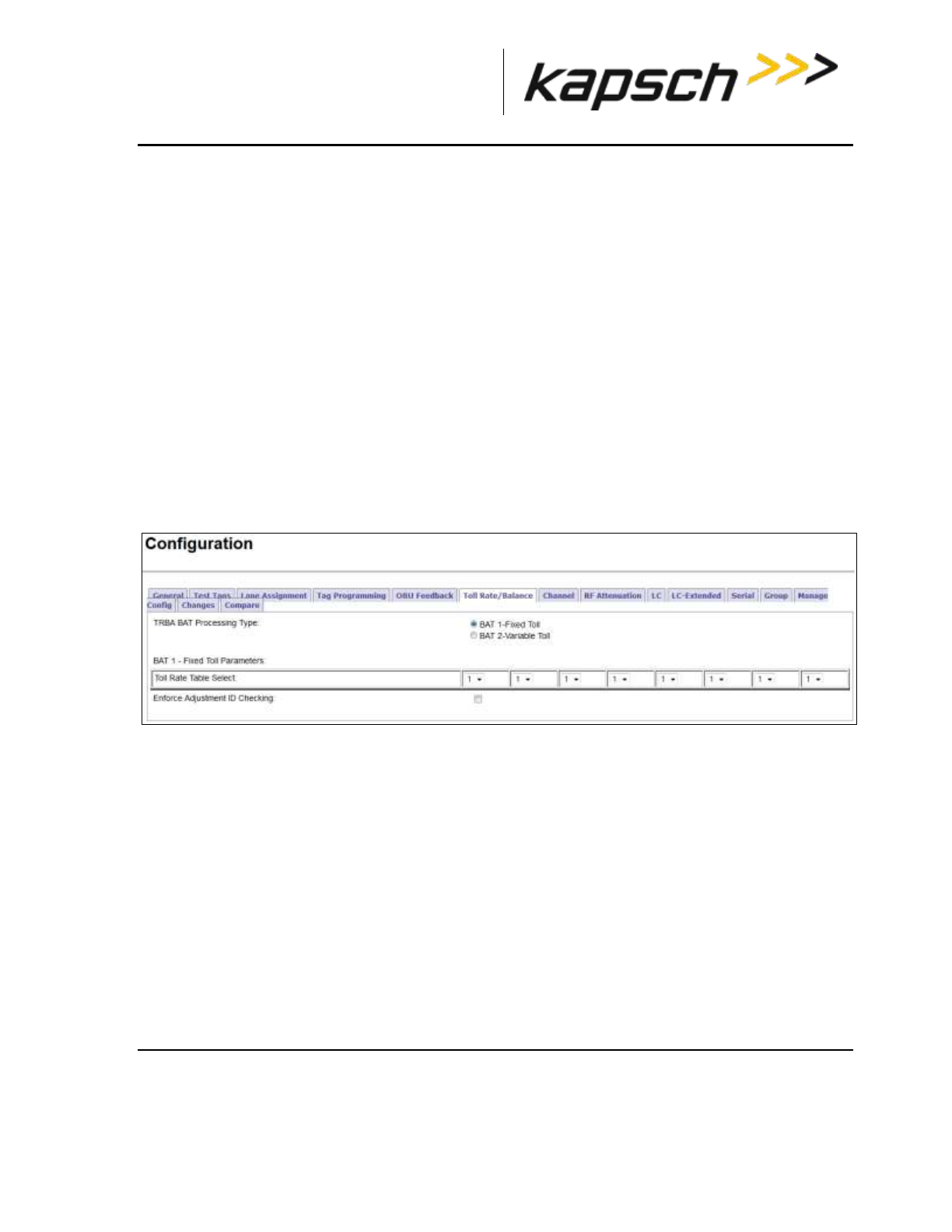

Result: The following screen appears.
3. Select BAT 1 - Fixed Toll as the TRBA BAT Processing Type.
4. Select one of four Toll Rate Tables for each channel, which determines the charge for the lane associated
with each channel.
5. Select the Enforce Adjustment ID Checking check box to limit how frequently the balance can be
updated.
BAT 2 tolling (deducting charges based on entry and exit location)
1. Select the Configuration link on the left side panel of the screen.
2. Select the Toll Rate/Balance tab
3. Select BAT 2 - Variable Toll as the TRBA BAT Processing Type.
Result: The following screen appears.
