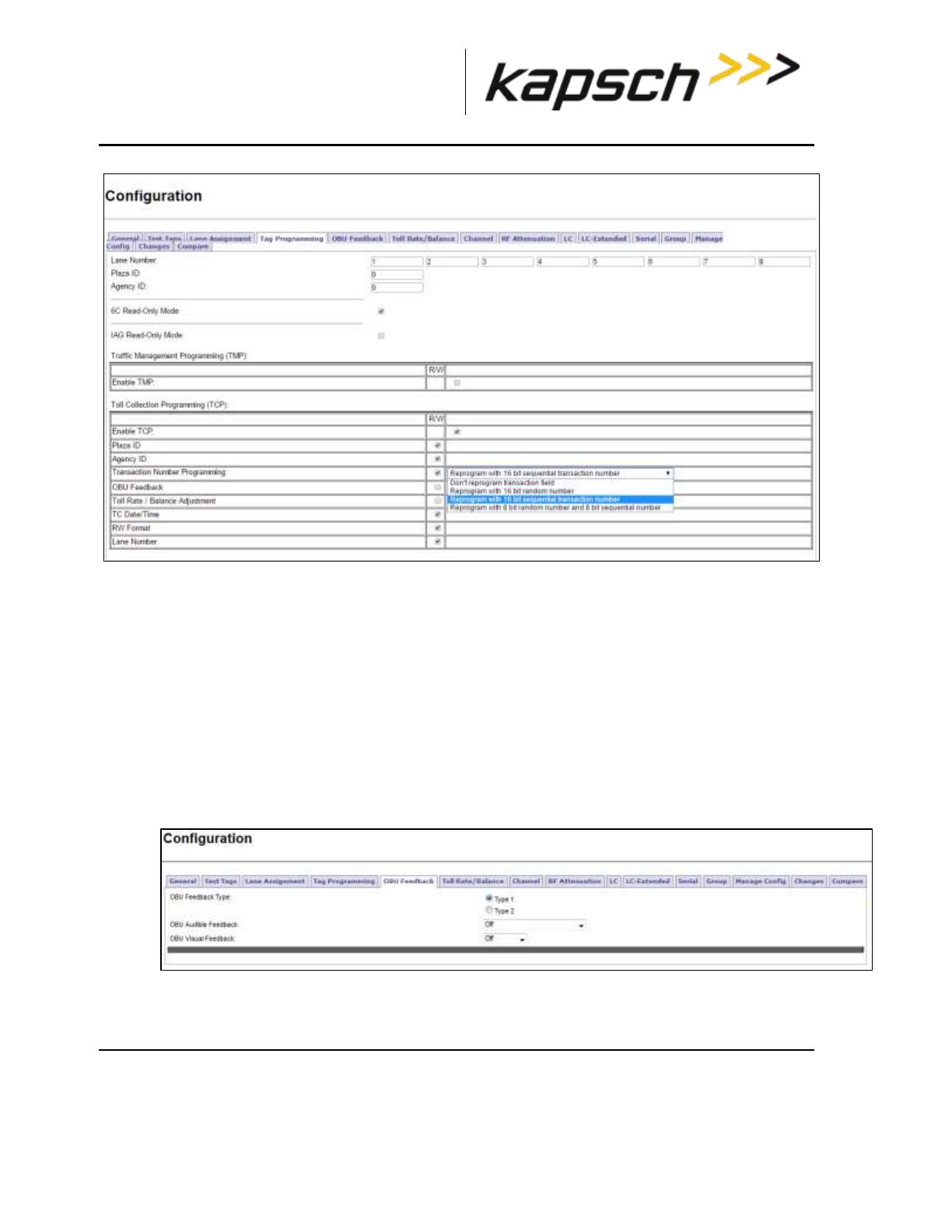

5. Select the desired transaction numbering calculation from the drop-down box.

6. Select the TC Date/Time check box to write the transaction time to the OBU.

7. Select the RW Format check box to determine how the scratchpad data is encoded when written to

OBUs.

Note: Before proceeding to the next step, ensure that you first enable and configure the Plaza ID.

8. Select the OBU Feedback check box to enable OBU feedback.

9. Assign a Lane Number to each RF channel.

Note: When a transaction occurs between an OBU and a channel, the Lane Number specified here will be

used when recording the transaction in OBU memory.

10. Select the OBU Feedback tab.

Result: The following screen appears.

11. Select either Type 1 or Type 2 feedback.

12. Select the desired audible feedback to control OBU beeping when a transaction occurs.
