Configuring OBU programming for Traffic Management Applications

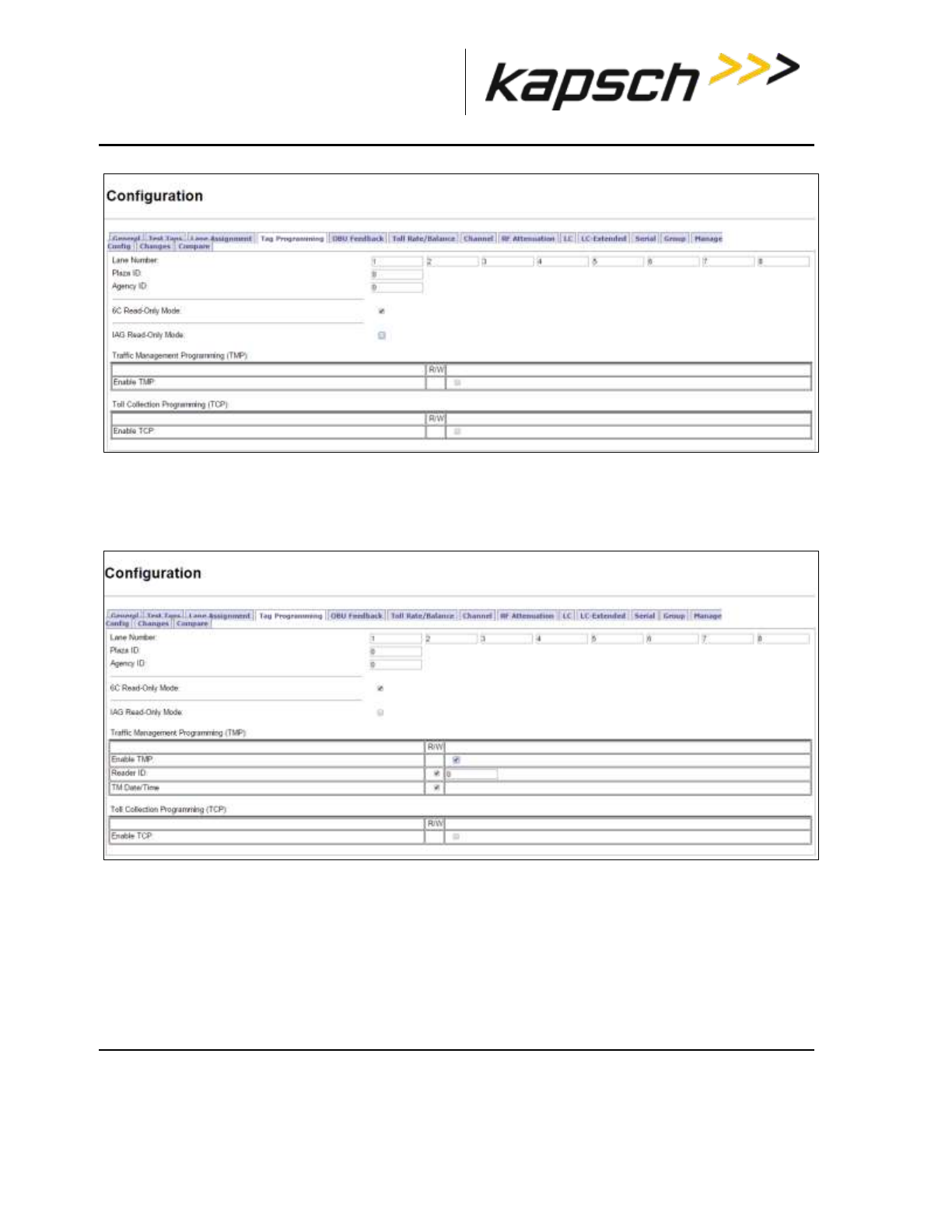

1. From the Tag Programming screen, select the Enable TMP check box.
Result: The following screen appears.
2. Select the Reader ID check box to enable writing the Reader ID to OBUs.
3. Enter a unique Reader ID.
4. Select the TM Date/Time check box to write the Reader TM time to OBUs.
Configuring OBU programming for Toll Collection applications
1. From the above Tag Programming screen, select the Enable TCP check box.
Result: The following screen appears.
