Communications tab
Field
Status
Description
Disabled
link not enabled
Dual-Destination
Lane Controller
Ethernet Link
Tertiary-
Destination Lane
Controller Ethernet
Link
Test Tags
Responding
test tag enable, tag seen.
Not Detected
test tag enabled, tag not being
read.
Disabled
test tags are not used to confirm
RF Channel health
Synchronization
Up
successful link connection
Down
link failure
Disabled
synchronization not enabled
Power Supply Module

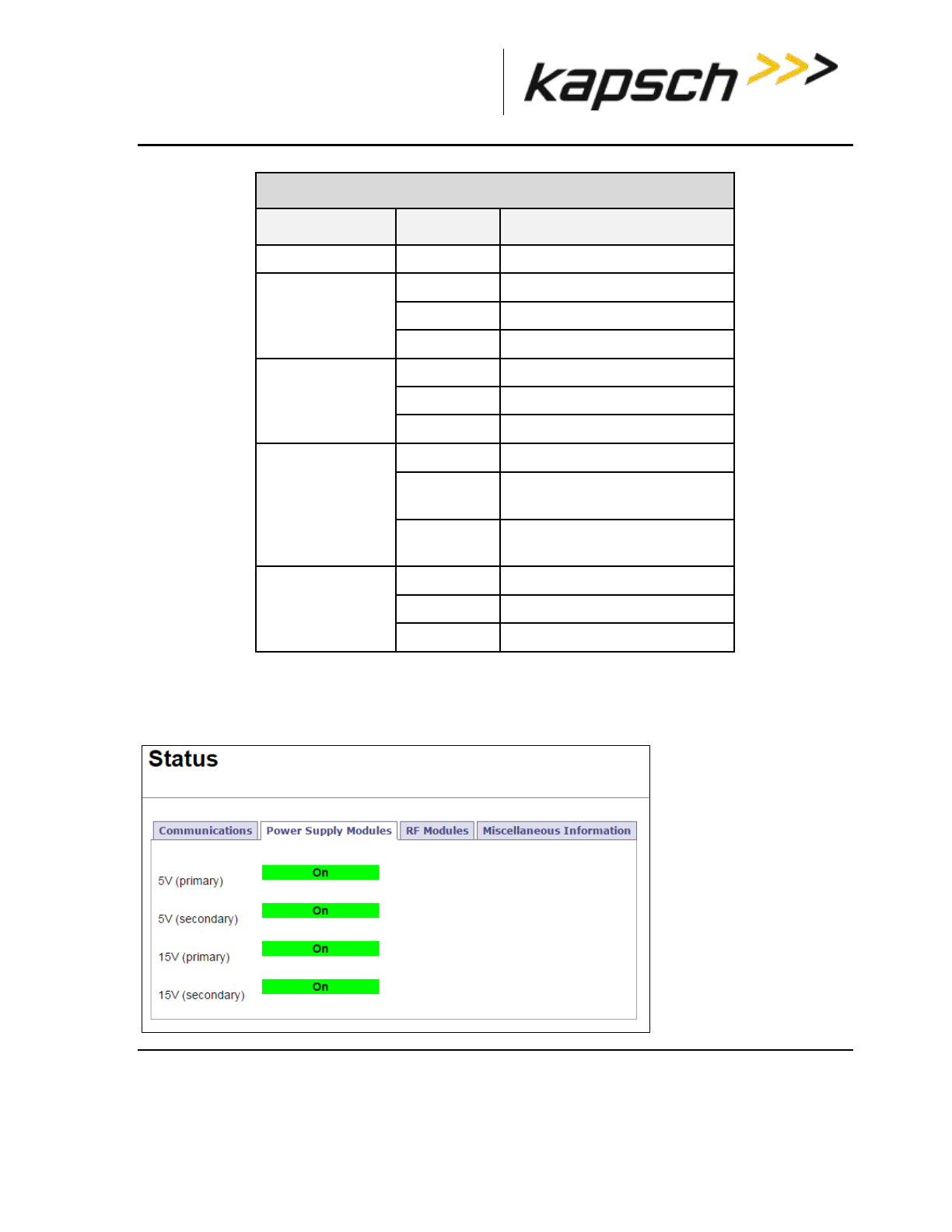

Table 3-2 lists and describes the fields in the Power Supply Module tab on the Status page.
