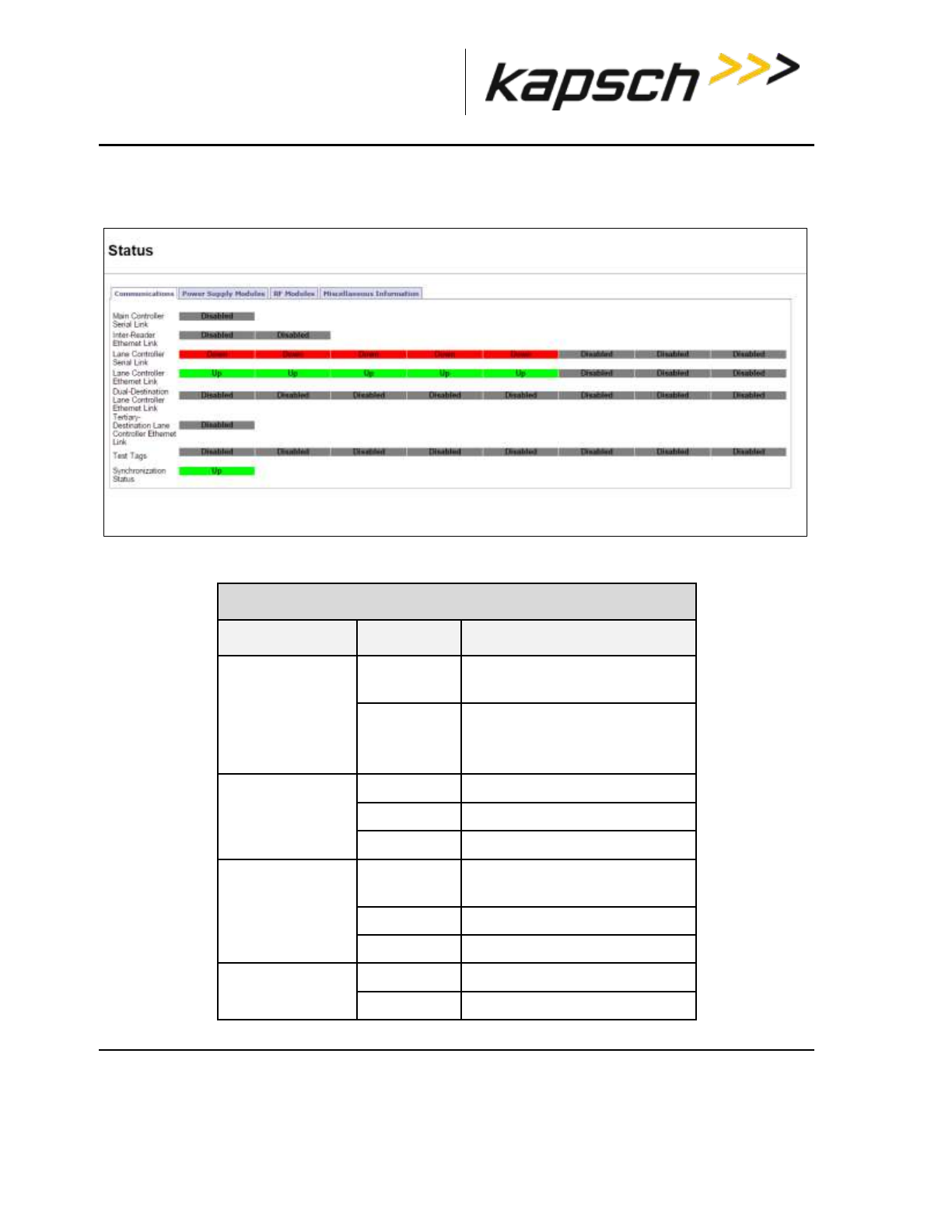

Table 3-1 lists and describes the fields in the Communications tab on the Status page.
Table 3-1: Communications fields
Communications tab
Field
Status
Description
Main Controller
Serial link
Up
successful link connection
between redundant CTMs
Down
link failure or disabled
(always Down on non-redundant
Readers)
Inter-Reader
Ethernet link
Up
successful link connection
Down
link failure
Disabled
link not enabled
Lane Controller
Serial link
Up
successful link connection
between CTM (via LPM) and LC
Down
link failure
Disabled
link not enabled
Lane Controller
Ethernet link
Up
successful link connection
Down
link failure
