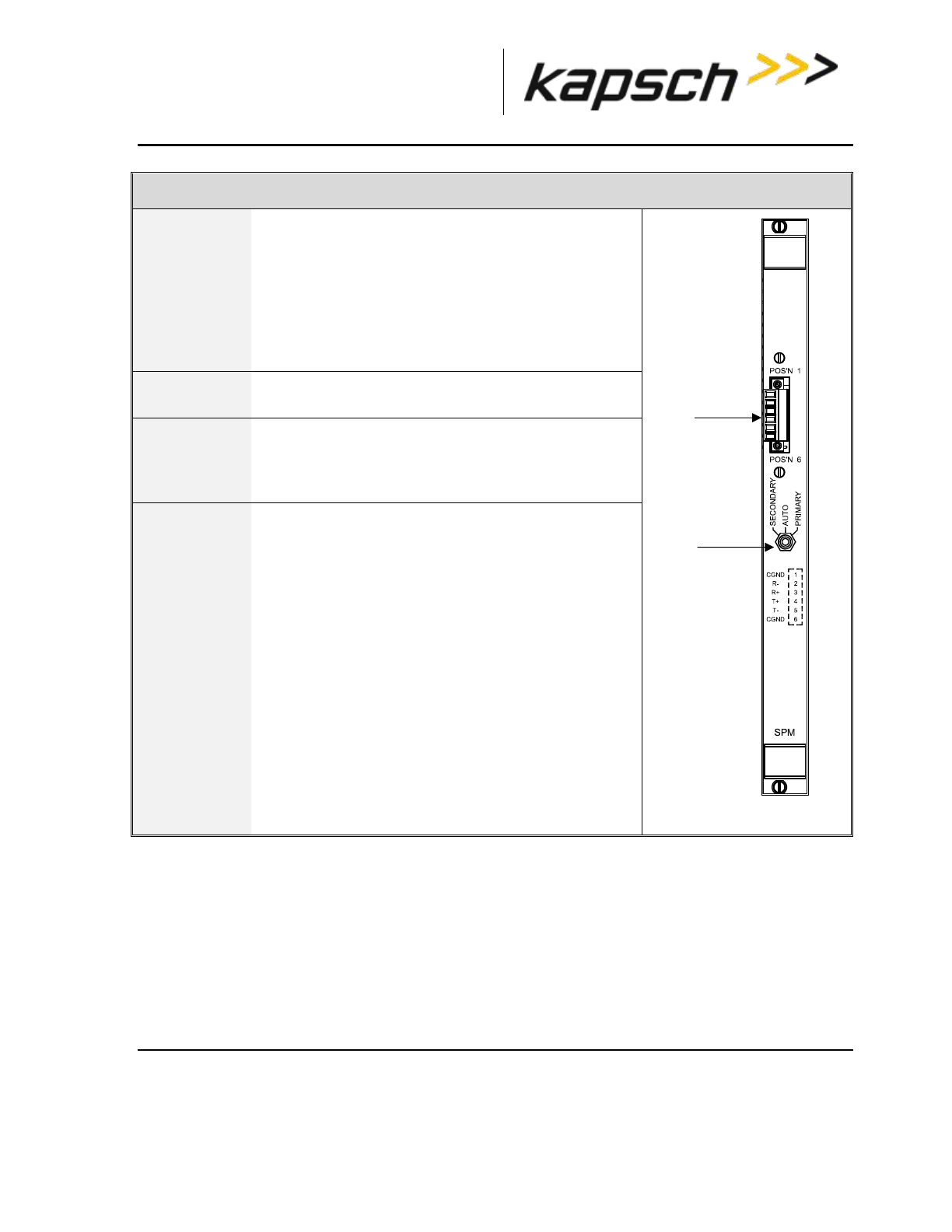

Synchronization Port Module (SPM)
Function
Sends out the status of the Reader (ready or busy) to
the other Readers in the synchronization network.
Signals to the CTM when all other Readers in the
synchronization network are ready.
Allows the switchover mode to be set to
SECONDARY—AUTO—PRIMARY by the
Redundancy Mode switch on the SPM.
Units per
Redundant
Reader
One
Normal State
N/A (no status indicators on module)
Connections
The SPM terminal block is connected to the other
Readers in the synchronization network via the sync
terminal block hub.
