Module Descriptions

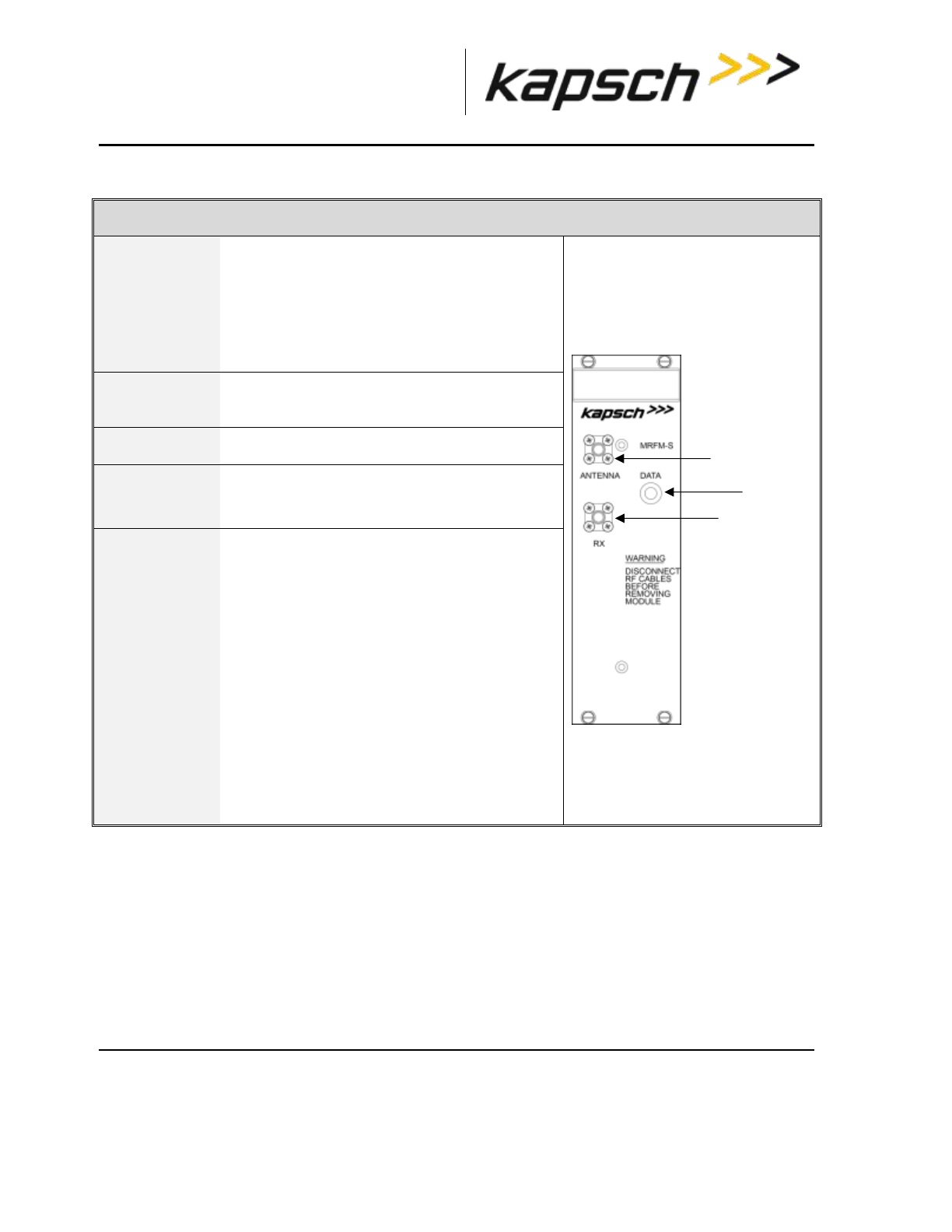

Smart Multi-protocol RF Module (MRFM-S)
Function
Converts digital data from the Reader to an
analog RF signal that is sent to the OBU via
the antenna.
Converts the analog RF signal collected from
the OBU via the antenna into a digital signal
that is sent to the CGC module via the DSM.
Units per
Redundant
Reader
One MRFM-S for each antenna. A maximum of
8 MRFM-S per Reader.
Redundant
No
Normal State
The DATA LED  illuminates solid green
when RF data is being transmitted.
Connections
The MRFM-S module can support bi-static
output configurations.
In bi-static output configurations, both
connections  and  are connected by an
RF cable to the antenna.



