Using RealTerm to connect to the MRFM-S
1. Connect a serial cable from the MRFM LC COM port to a port on your computer.
2. Launch RealTerm.

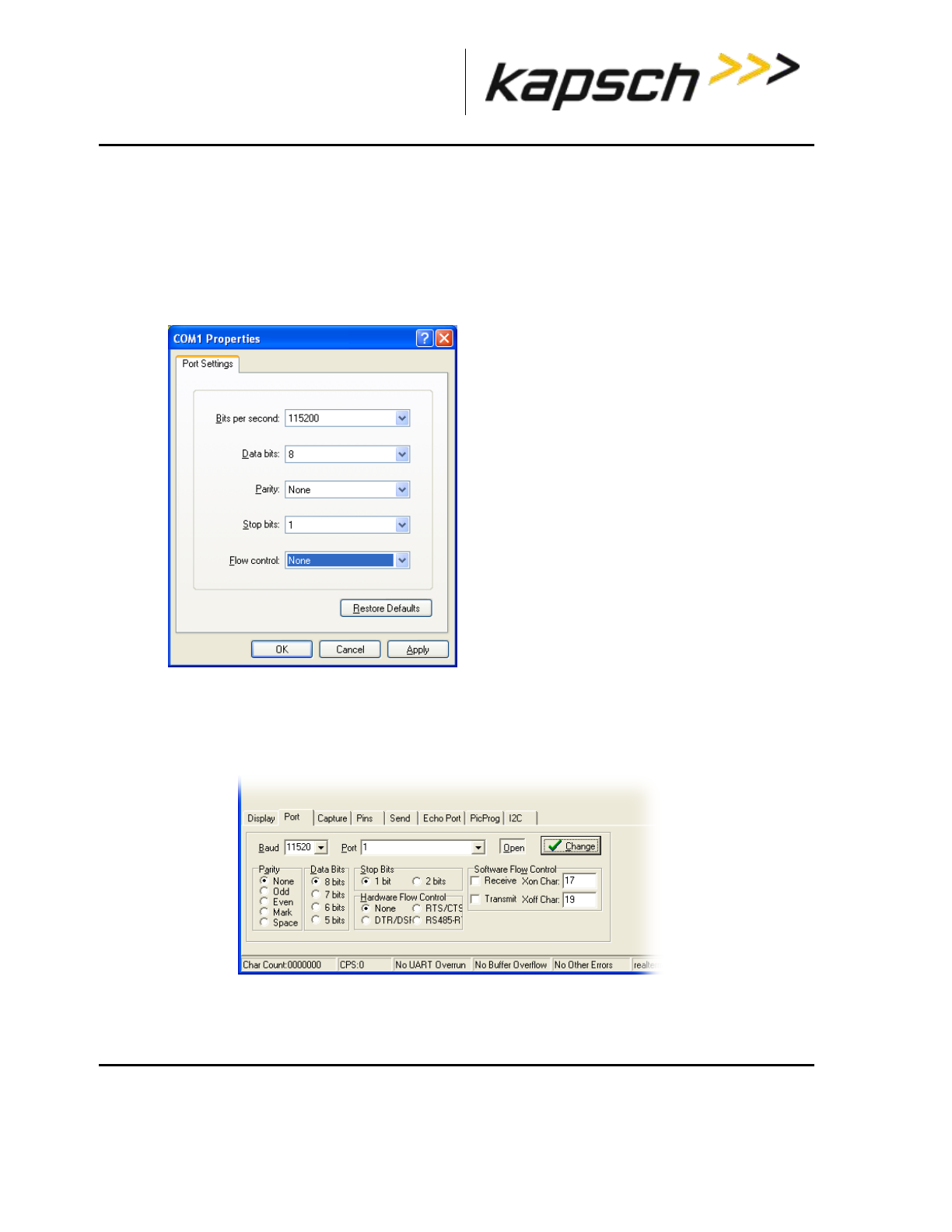

3. From the Port tab, select 115200 from the Bits per second drop-down box,set Data Bits to 8, set Parity
to None, Stop Bits to 1, Flow Control to None.
Example: The following example is shown.
4. Select the COM port number of the computer port you connected to in Step 1 from the Port drop-down
box.
5. Click the Change button.
6. From the Display tab, select Binary from the Display As column.
7. MRFM-S data now displays in the display pane in the upper half of the RealTerm window.
