Prerequisites: A service laptop connected to Ethernet 1 or a USB port of the CTM and accessing the
CTM web interface. Refer to Connecting a service laptop to the Reader, page 47. You must have View
Log Files and Manage Log Files permissions.

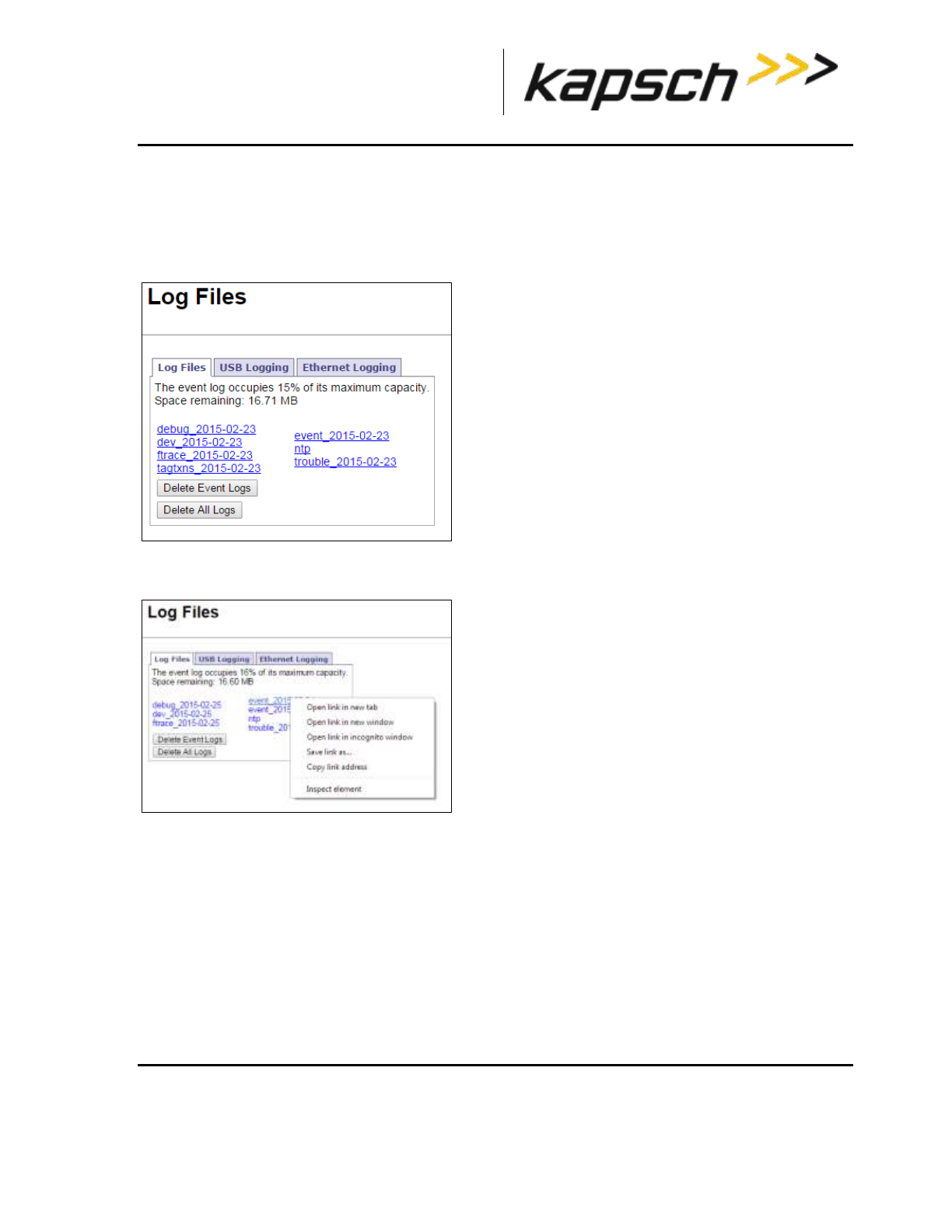

1. Select the Log Files link on the left side panel of the CTM web interface.
Result: The following screen appears.
2. Right-click on the log file you want to save from the list.
Result: The following screen appears.
3. Click Save Target As… (Internet Explorer), Save Link As… (Firefox), or Save Link As… (Chrome) as
applicable.
4. In the pop-up window, select a save location, and then click the Save button.
Result: The file downloads to the computer.
Manually saving a Reader log file to a USB flash drive
This procedure outlines how to save any log file currently saved on the Reader to a USB memory stick.
Prerequisites: A USB memory stick is inserted into one of the CTM USB ports.
You must have View Log Files and Manage Log Files permissions.
