This procedure outlines how to upload the new firmware to the Reader so it can then be activated.
Uploading new firmware
Prerequisites: A service laptop containing a copy of the latest firmware is connected to either the Ethernet 1 or
a USB port and then logged into the CTM web interface.
You must have Software Management permissions.
CAUTION:
On a redundant Reader, ensure that the redundant side has no
fault conditions and all lane controller links are functioning
1. Select the Manage Software link from the left panel of the screen.

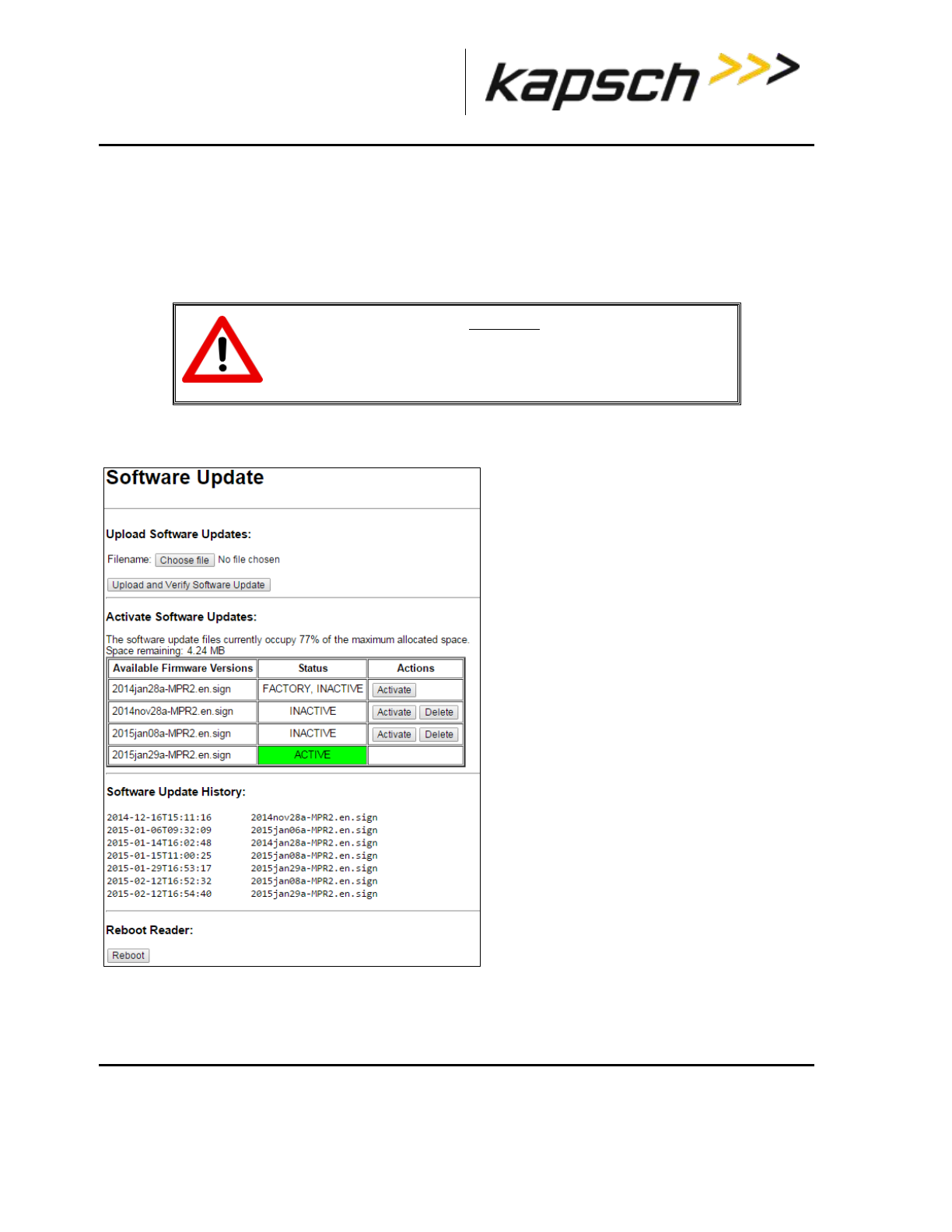

Result: The following Software Update page appears.
Note: Ensure that the new firmware version is more recent than the active firmware version
2. Check the Space remaining to ensure there is enough Reader memory to load the new firmware.
