3. Ensure that LC communications is configured, that is, the appropriate Ethernet and Serial selections are
made in the Destinations field.
4. Select the Send Heartbeat messages check box to enable sending heartbeat messaging, as required.
5. Enter a time, in seconds, in the Heartbeat Interval field. This number must be lower than the LC
communication error threshold.
6. Click the General tab.

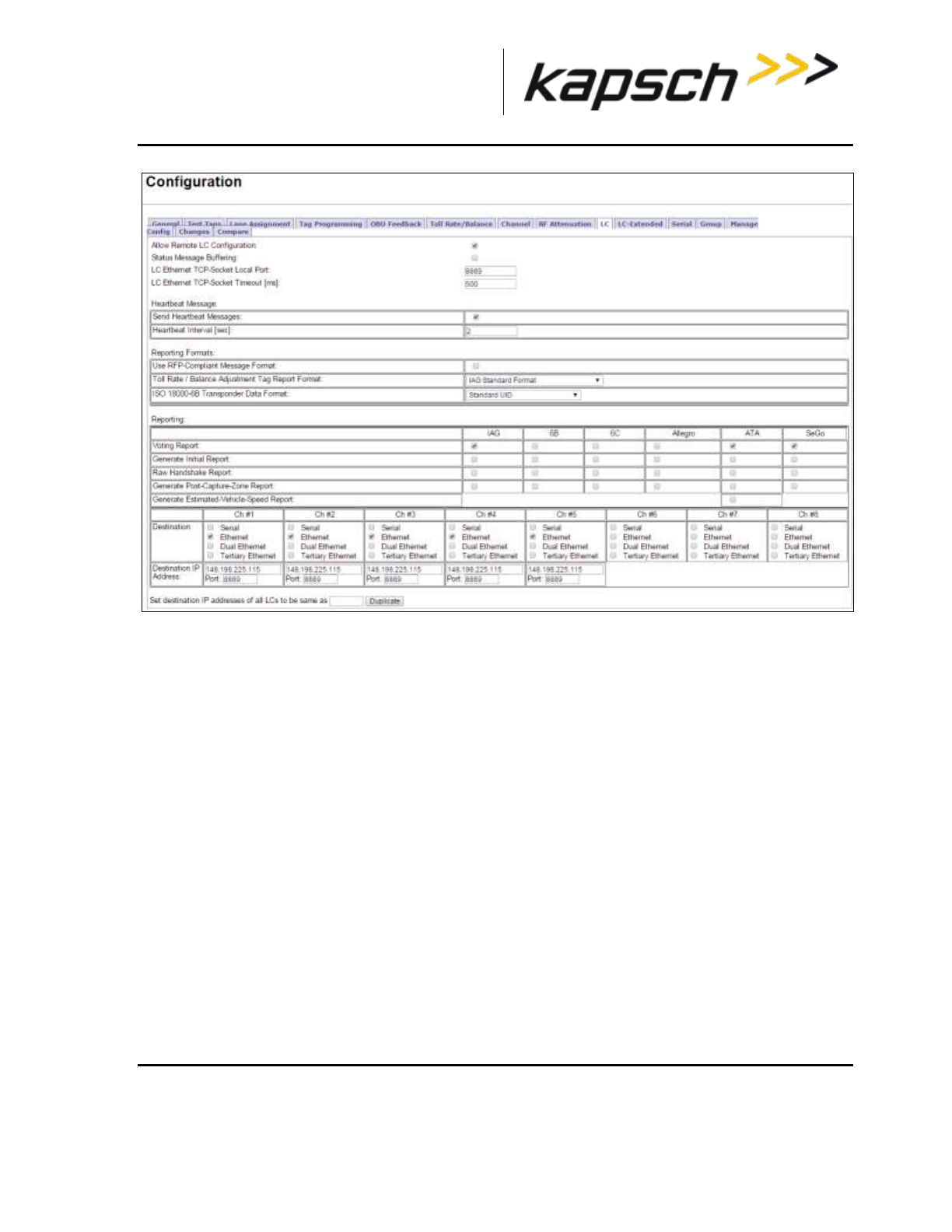

Result: The following screen appears.
