Note: Disconnect the RF cable(s) from the MRFM-S appropriate port.
3. Loosen the screws securing the MRFM-S module to the Reader rack, and then remove the MRFM-S from
the Reader.
Installing an MRFM-S
CAUTION:
To avoid damaging the modules, ensure that the connector on the
module is properly aligned with the connector on the DSM back plane
before the module is securely plugged into the DSM.
1. Insert the MRFM-S module into the Reader. Tighten the screws to secure the MRFM-S to the Reader
rack.
2. Connect the RF cable(s) to the MRFM-S appropriate port and tighten with a proper torque wrench.
3. Select the Configuration link on the left side panel of the CTM web interface.
4. Click the Channel tab.

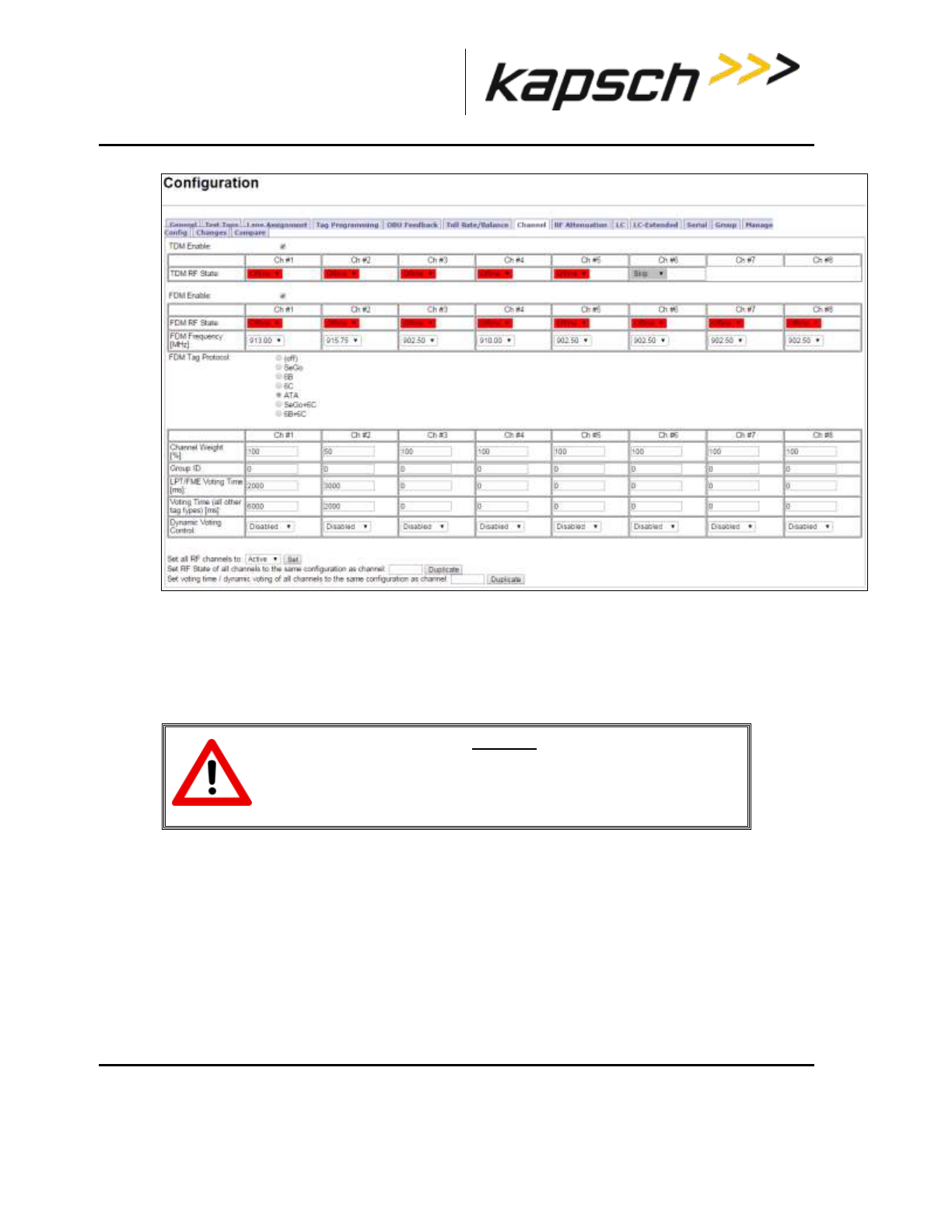

Result: The following screen appears.
