Note 1: This is the number of previous transactions the Reader includes when calculating the average
capture zone span time.
Note 2: The Reader calculates the capture zone span time after each OBU transaction. The Reader will not
update the Dynamic Voting Time unless the capture zone span time changes more than the
Dynamic Voting Threshold percentage.
4. Enter a percentage in the Dynamic Voting Threshold field.

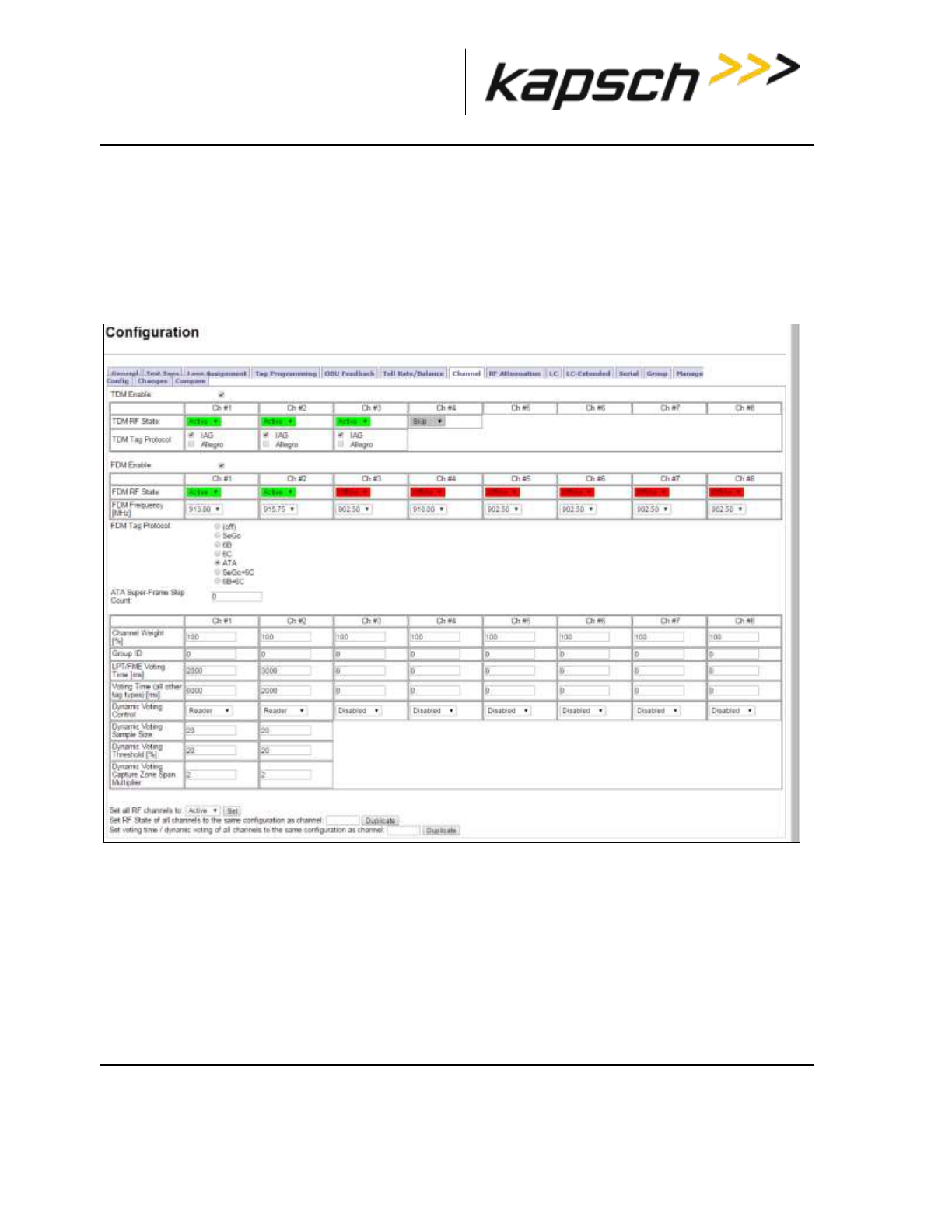

Result: The following screen appears.
Configuring Channel Weight for straddle antennas
The handshake count of straddle channels (channels 2 and 4 in Figure 5-14) typically have less weight
assigned to them than non-straddle channels (channels 1, 3, and 5 in Figure 5-14).
Prerequisites: Connect the service laptop to the Reader configuration port to access the CTM web interface.
Refer to Connecting a service laptop to the Reader, page 47.
1. Select the Configuration link on the left side panel.
2. Click the Channel tab.
