Note: This specifies an amount of time a transponder must be away from a capture zone before it is
reported again as a new transaction when it is detected.
8. Repeat steps 4 through 7 to individually configure the other channels, or enter the number of a configured
channel in the field beside the Duplicate button on the Channel screen.
9. Click the Duplicate button to configure automatically the remaining channels.
Allowing the Reader to calculate the optimum voting time using Dynamic Voting Control
Prerequisites: Connect the service laptop to the Reader configuration port to access the CTM web interface.
Refer to Connecting a service laptop to the Reader, page 47.
1. Select the Configuration link on the left side panel.
2. Click the Channel tab.

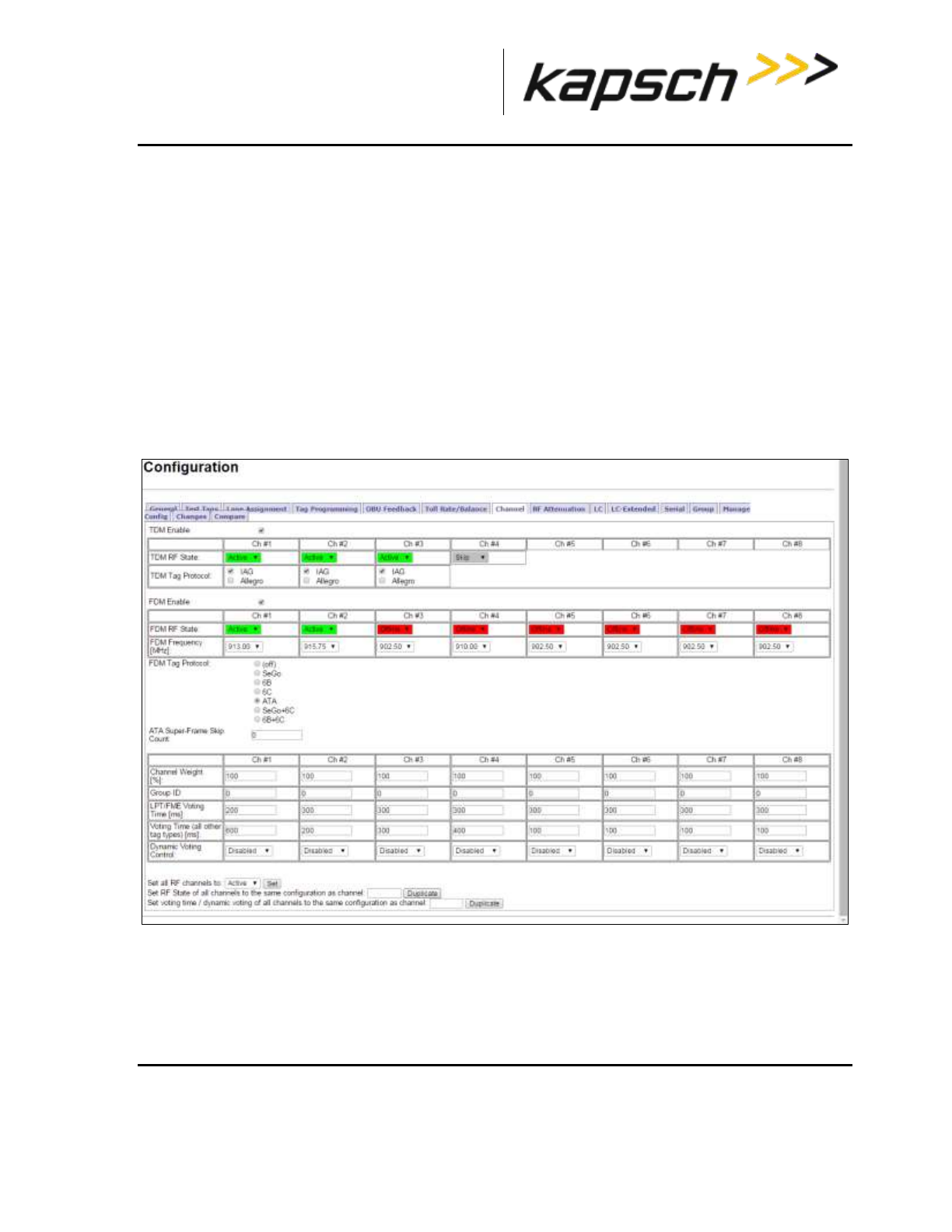

Result: The following screen appears.
2. Set the Dynamic Voting Control to Reader to allow the Reader to automatically set the voting time by
calculating the average capture zone span time.
3. Enter a sample size in the Dynamic Voting Sample Size field.
