2. Click the Lane Assignment tab.

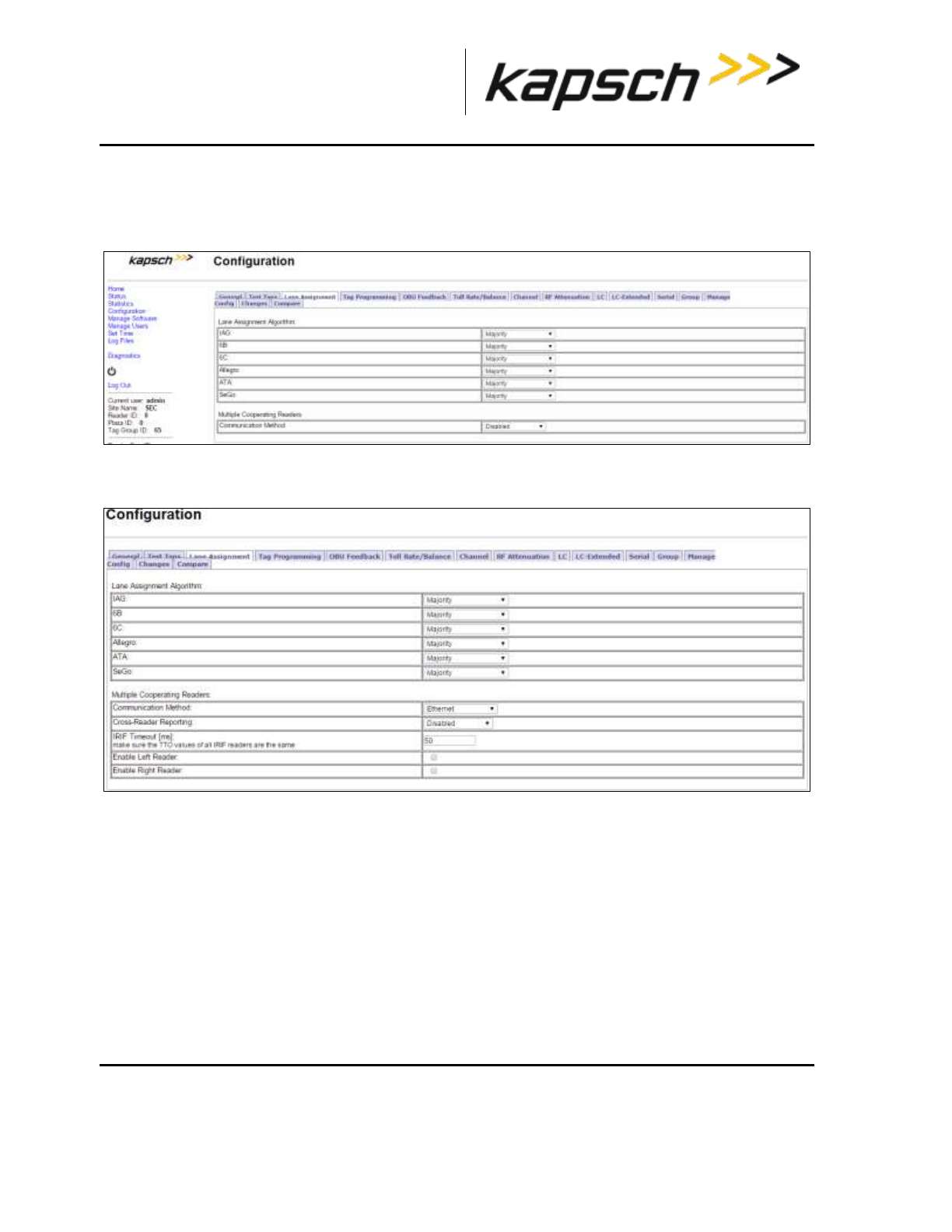

Result: The following screen appears.
3. Select Ethernet from the Communication Method drop-down box.
Result: The following screen appears.
Configure how multiple transactions are reported to the LC:
To send one transaction report per OBU to the LC without informing the LC of suppressed
reports, select Disabled from the Cross-Reader Reporting drop-down box.
To send all transaction reports for an OBU to the LC, select Report All from the Cross-
Reader Reporting drop-down box.
To send on transaction report per OBU to the LC and also inform the LC of suppressed
reports, select Report Non-zero from the Cross-Reader Reporting drop-down box.
1. Configure the IR network by determining where the Reader sits in the IR network.
Example: Reader 1 in Figure 5-13 has a Reader on its right (Reader 2) but no Reader on the left. Reader
2 in Figure 5-13 has a Reader on its right (Reader 3) and a Reader on its left (Reader 1). Reader 3 in
Figure 5-13 does not have a Reader on its right but has one on its left (Reader 2).
