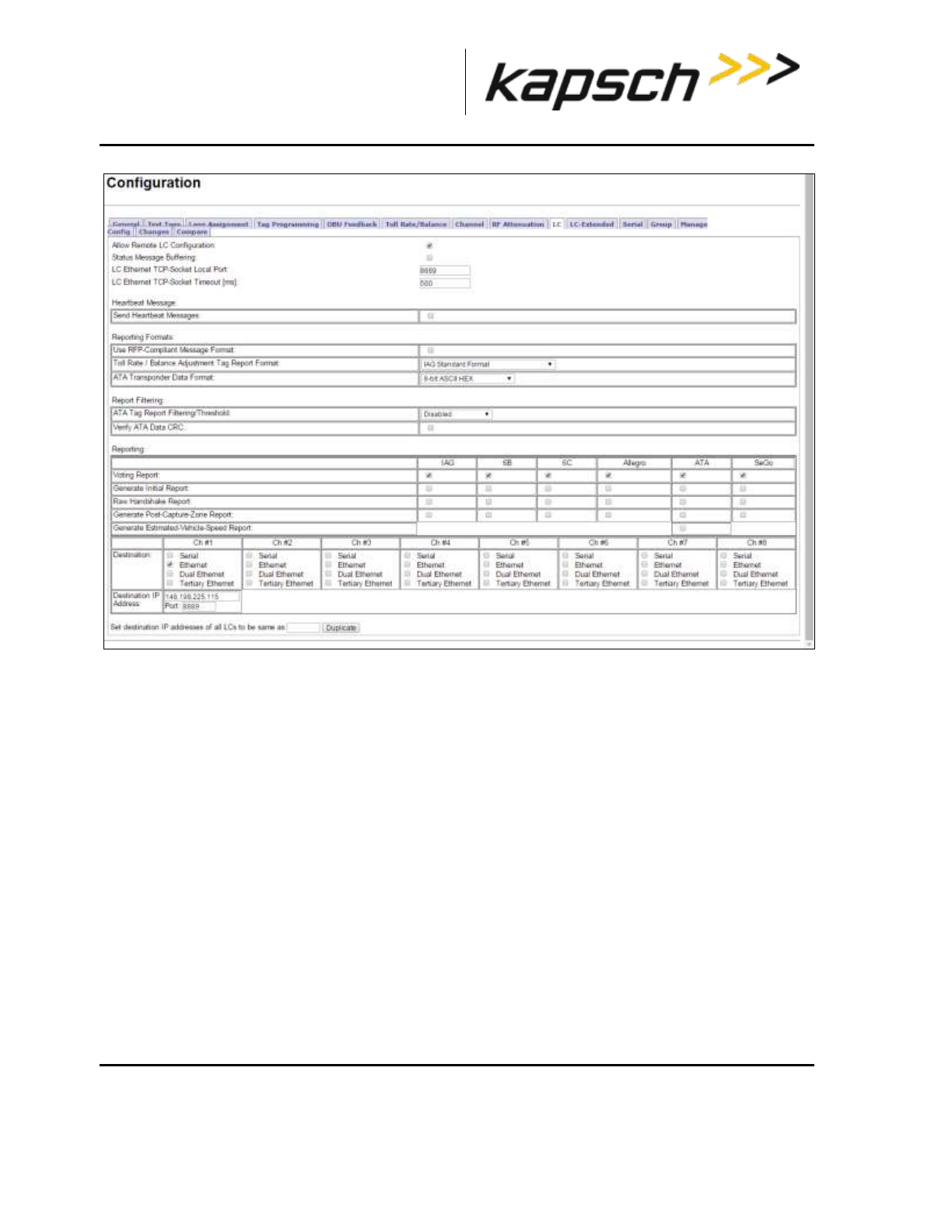

3. In the Destination row, select the Ethernet check box for each RF channel that will communicate with
the LC via Ethernet.
4. Enter the LC IP address and Port number for each RF channel.
5. If all the RF channels will be communicating with the LC at the same IP address, enter the number of a
configured channel in the field beside the Duplicate button and then click Duplicate.
Result: All RF channels selected to communicate over Ethernet will now have the same destination LC
IP.
Note: When setting the LC Retry Timeout, consider the baud rate used to communicate with the LC and
the processing speed of the LC to avoid false failure reports.
6. Enter a time, in milliseconds, in the LC Ethernet TCP-Socket Timeout field.
Note: If an LC does not respond within this time, the Reader will consider Ethernet communications to the
LC to be down and could trigger a switchover, depending on the redundancy settings.
