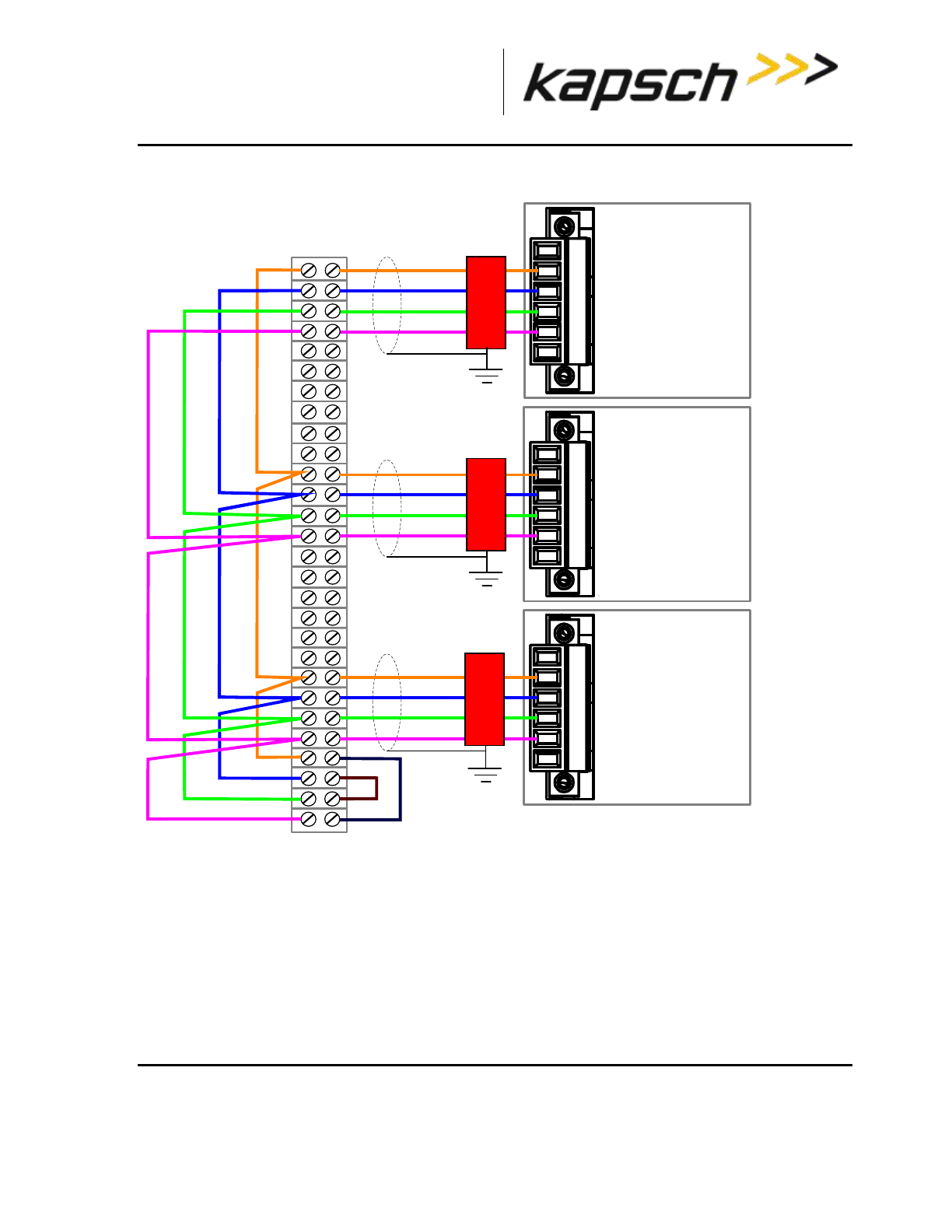

Figure 5-9: Synchronization circuit schematic for three Readers
GND
SPM
Reader 1
GND
R-
R+
T+
T-
GND
GND
R-
R+
T+
T-
GND
GND
R-
R+
T+
T-
SPM
Reader 2
SPM
Reader 3
Sync hub terminal block
lightning
protector
Earth Ground
Earth Ground
Earth Ground
Shield
Synchronization between MPR2 Readers
All Readers in a synchronization circuit must be configured correctly for Synchronization to work. Also,
the number of frames per superframe must be equal between MPR2 Readers in the synchronization
circuit.
